E-Series 3차원 도면은 어디에서 찾을 수 있나요?

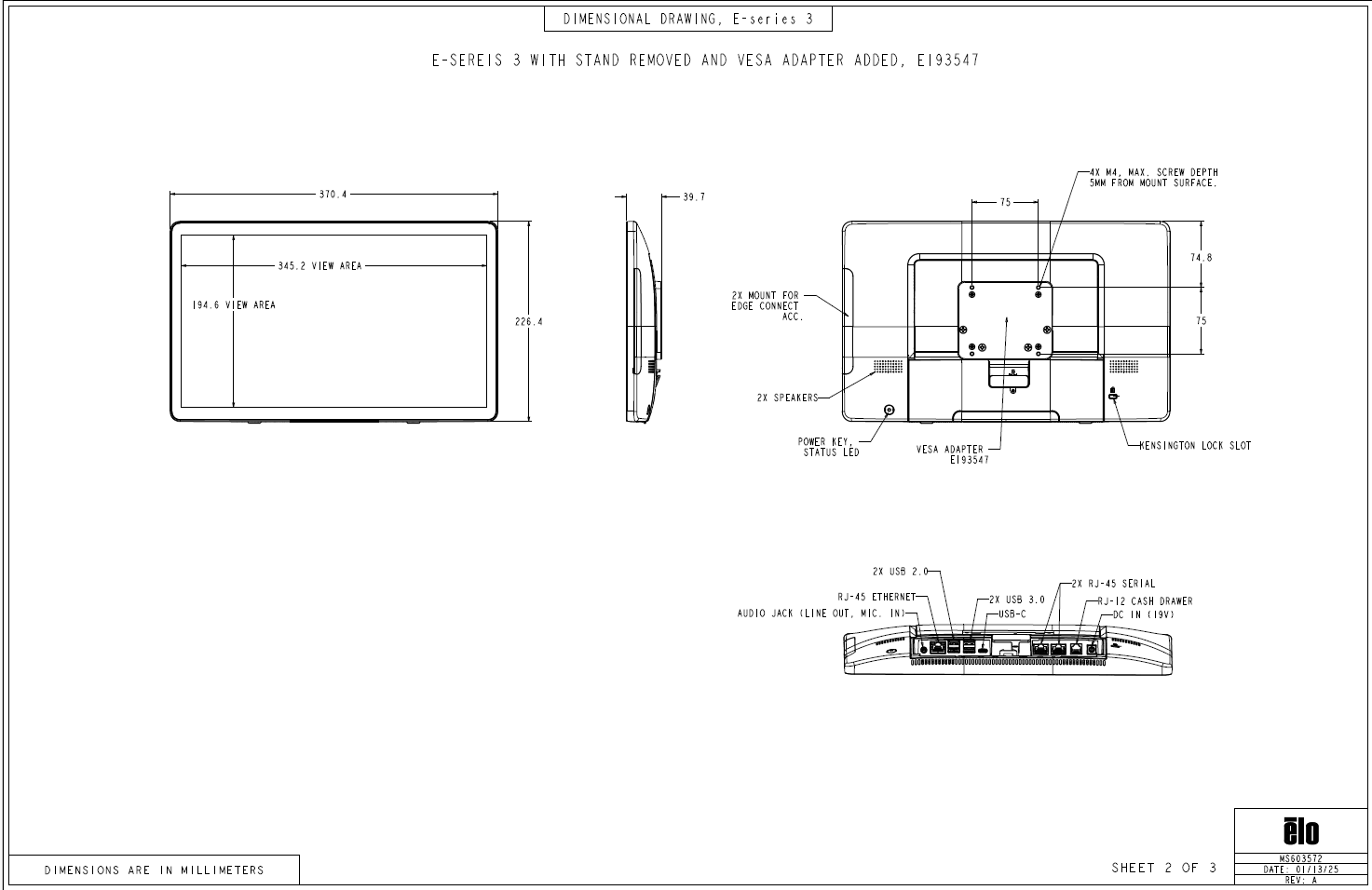

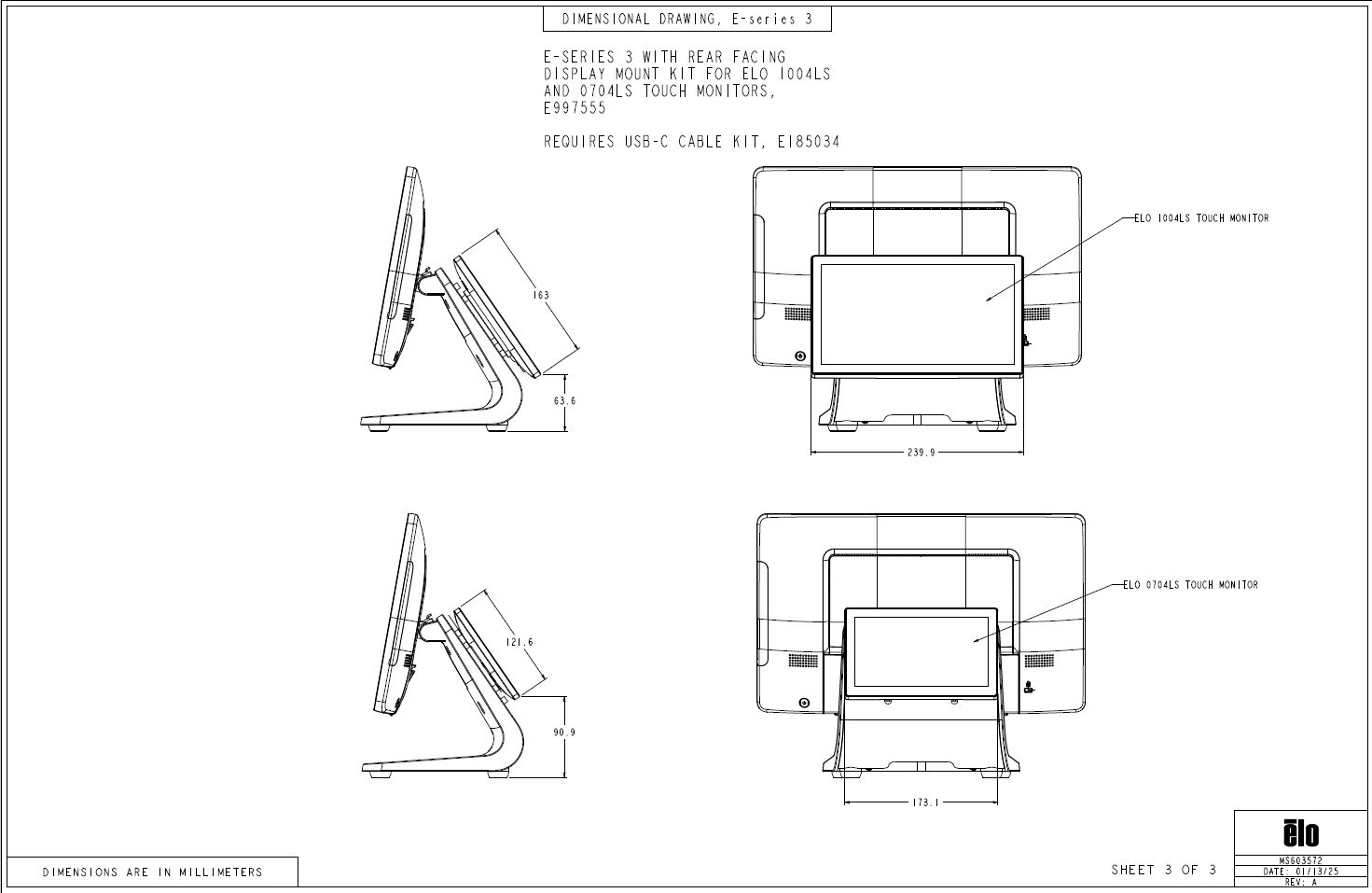

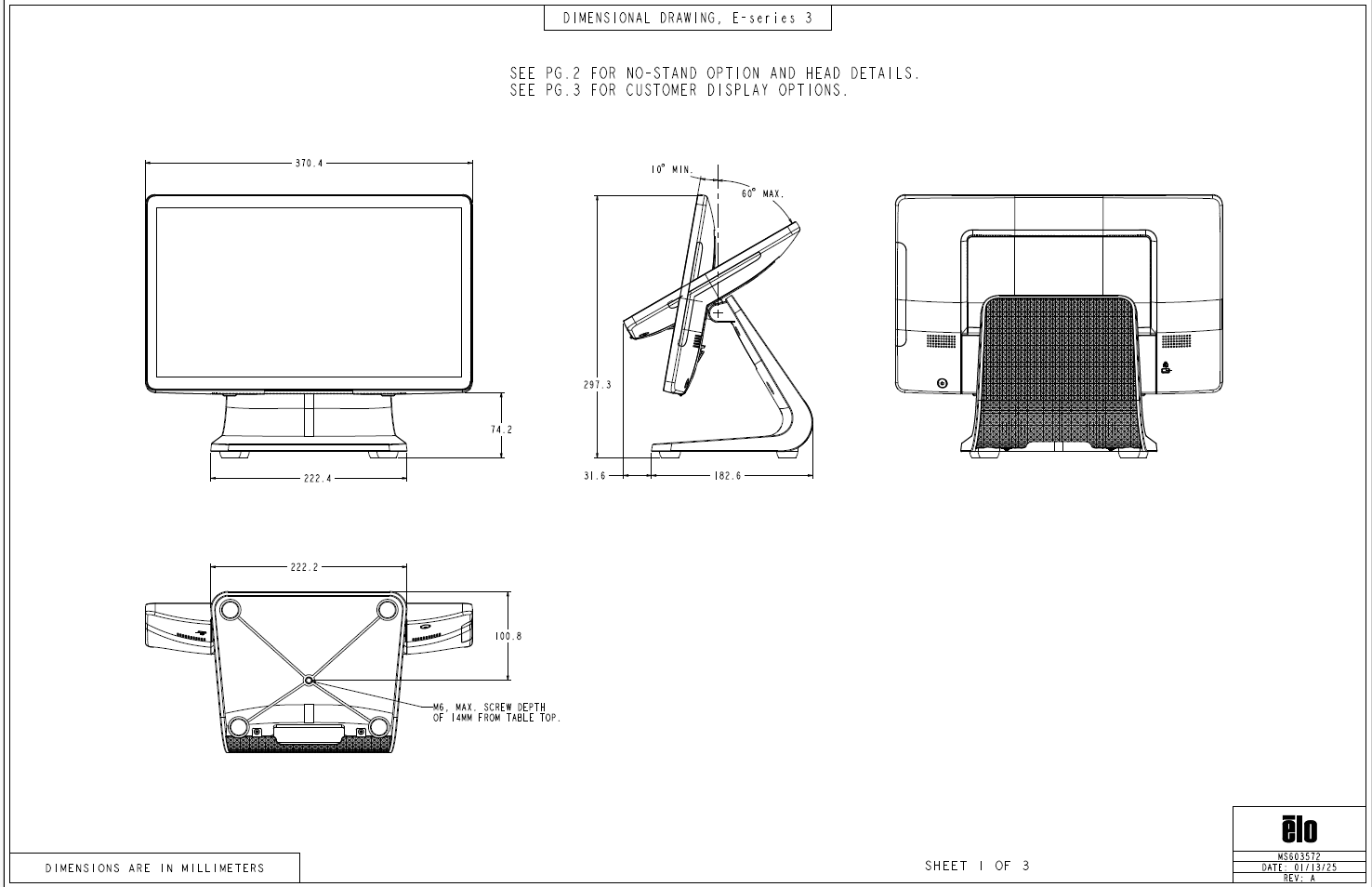

이 문서는 E-Series 3 AIO의 치수 도면을 제공합니다

적용 가능한 부품 번호:

  • 운영 체제 없음, 8GB RAM, 128GB SSD, WiFi - E850098
  • 윈도우 11, 8GB RAM, 128GB SSD, WiFi - E849902
  • 운영 체제 없음, 8GB RAM, 128GB SSD - E850312
  • 윈도우 11, 8GB RAM, 128GB SSD - E849711
  • 운영 체제 없음, 16GB RAM, 256GB SSD, WiFi - E153661
  • 윈도우 11, 16GB RAM, 256GB SSD, WiFi - E153259

위의 도면 다운로드
