Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik dimensionale tekeningen vinden voor de E143088 muurbeugelkit?

Dit artikel biedt de dimensionale tekeningen voor de E143088 Wandmontageset

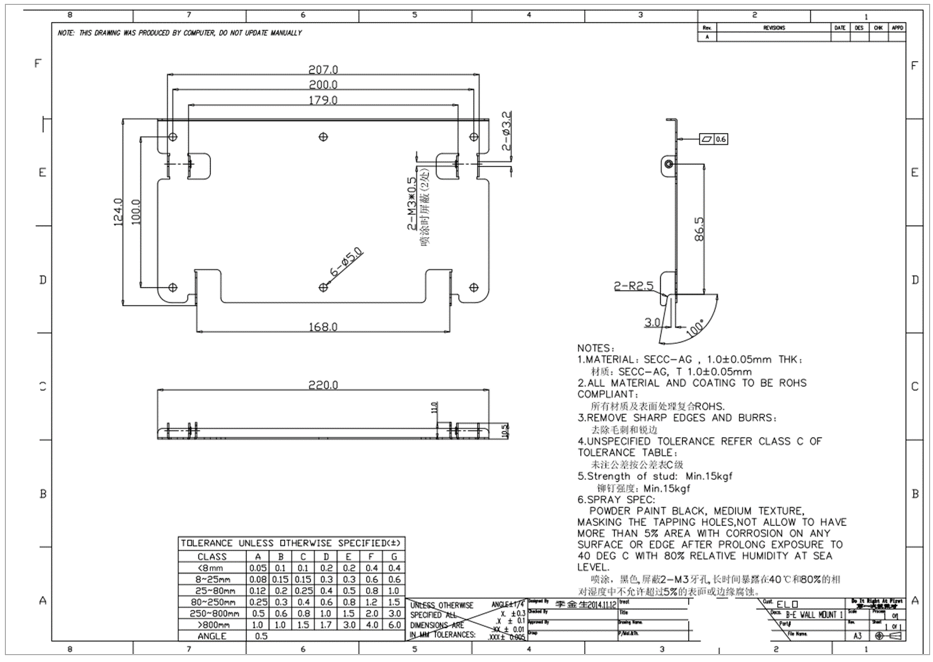

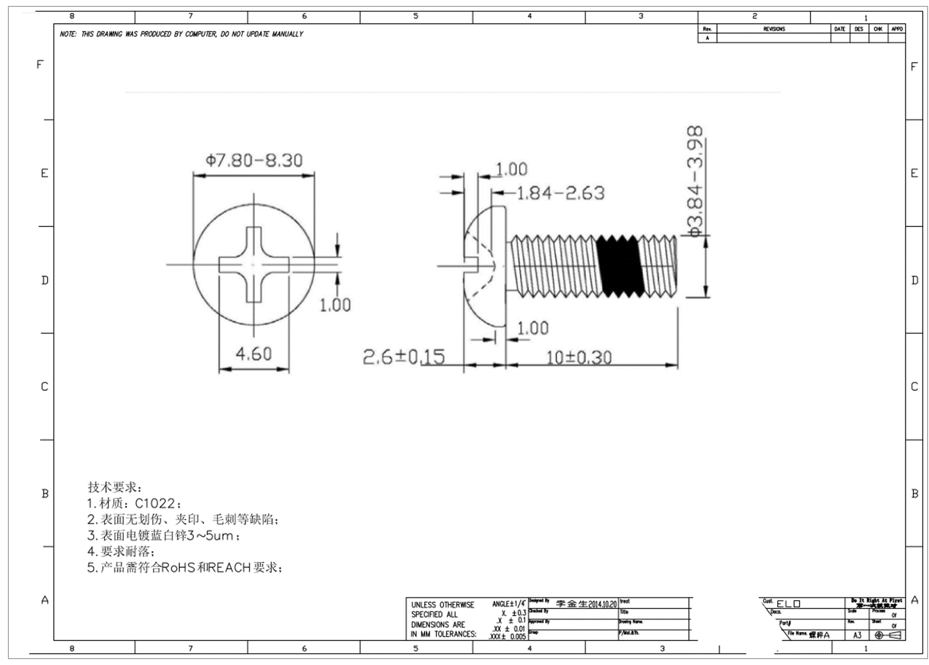

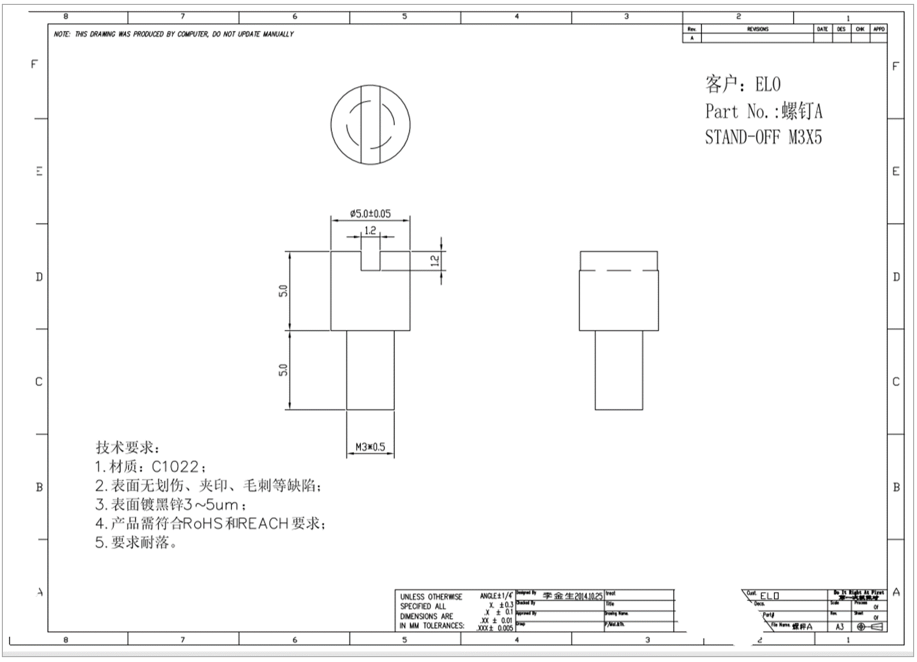

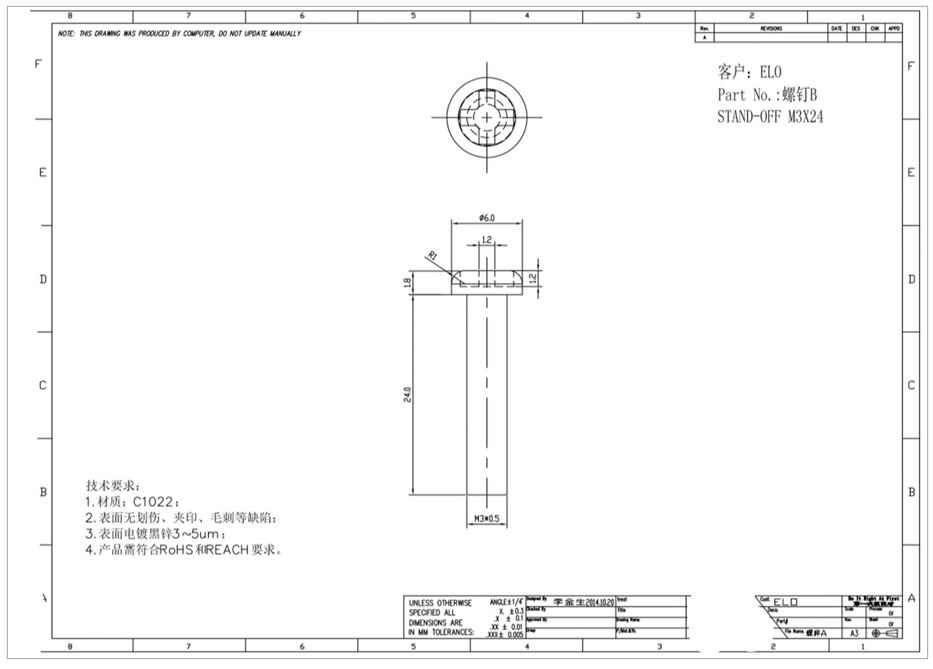

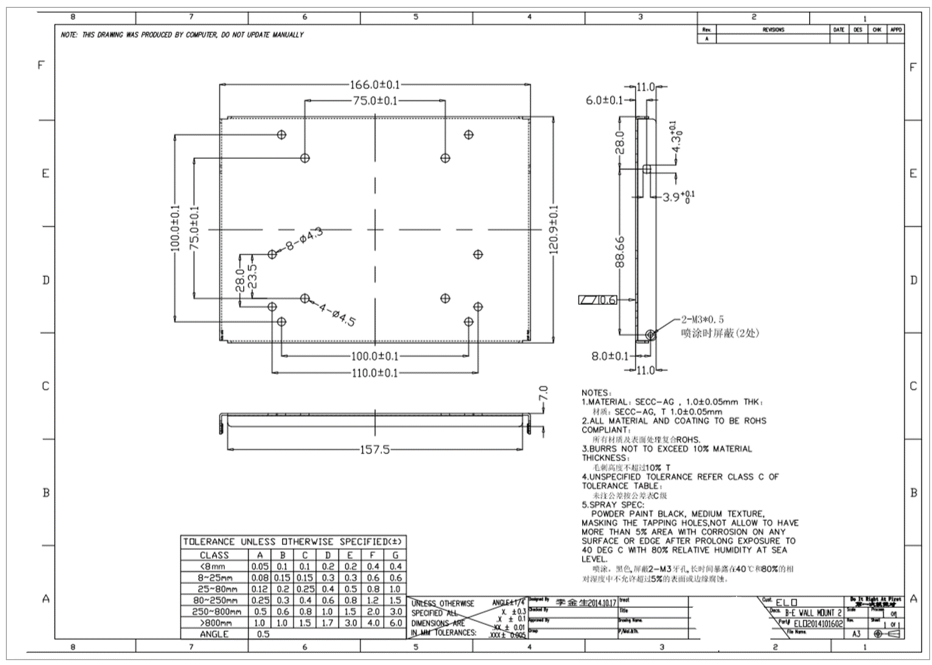

Bekijk hieronder de dimensionale tekeningen van de E143088 Wandmontageset voor E-I-X-Series Intel-Windows-gebaseerde all-in-one touchscreencomputers.




Download het .pdf-pakket met bovenstaande tekeningen hier .



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
