Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar a pinagem do conector LVDS no Módulo de Display Elo de 10 polegadas?

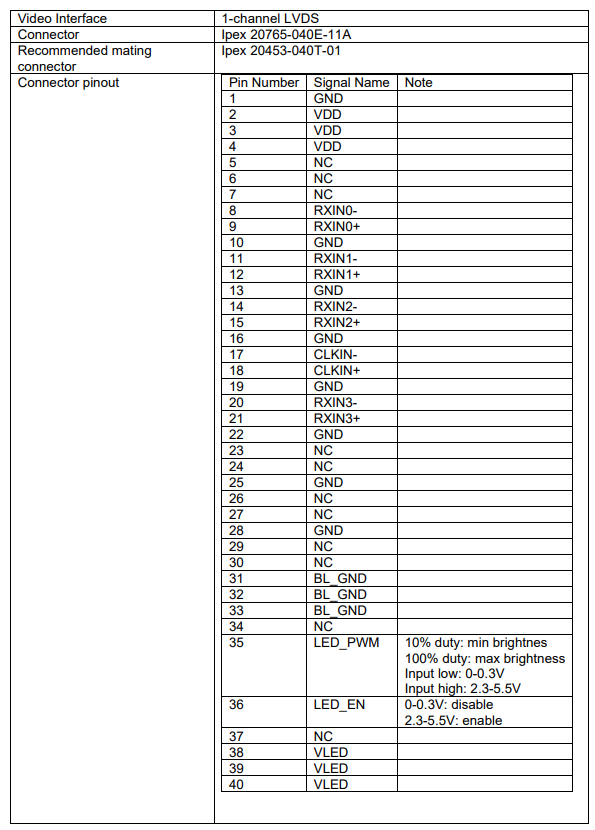

Este artigo mostra a pinagem no conector LVDS do Módulo de Exibição Elo de 10,1 polegadas, P/N:E270763
