Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

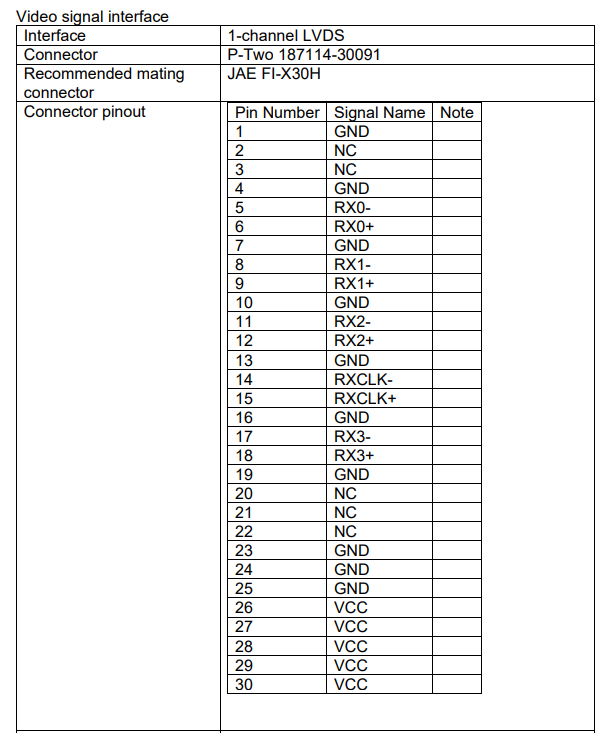

Onde posso encontrar o pinout do conector LVDS nos Módulos de Display Elo?

Este artigo mostra a disposição dos pinos do conector LVDS no Módulo de Display Elo de 15,6 polegadas, P/N:E270963



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
