Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar um Desenho Dimensional para o Leitor de Código de Barras 2D de 1ª Geração (E926356)?

Este artigo fornece um desenho dimensional do Leitor de Código de Barras 2D, Número da peça: E926356

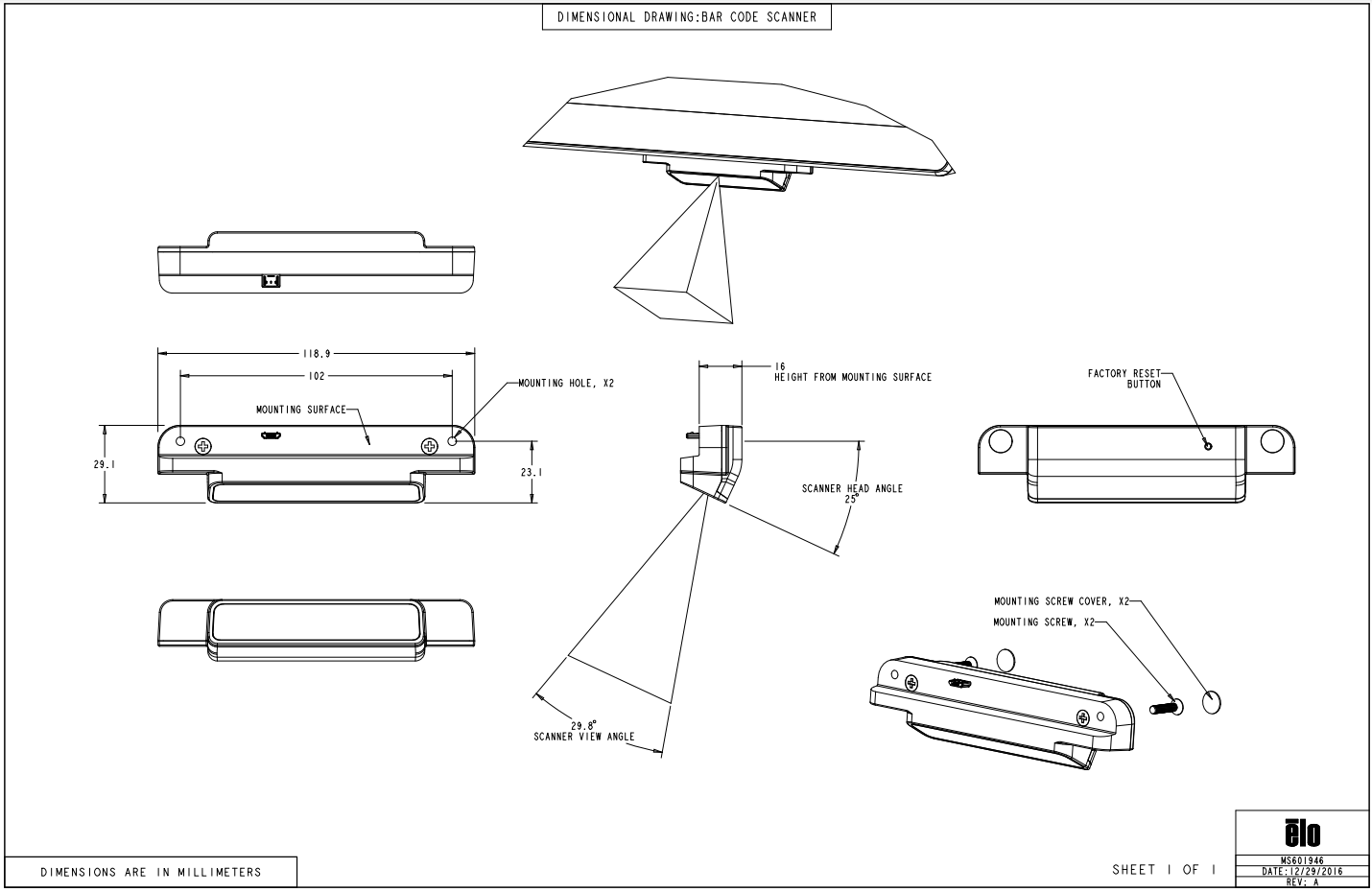

Veja o desenho abaixo do Leitor de Código de Barras 2D, Número da peça: E926356

O desenho abaixo também pode ser baixado AQUI

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
