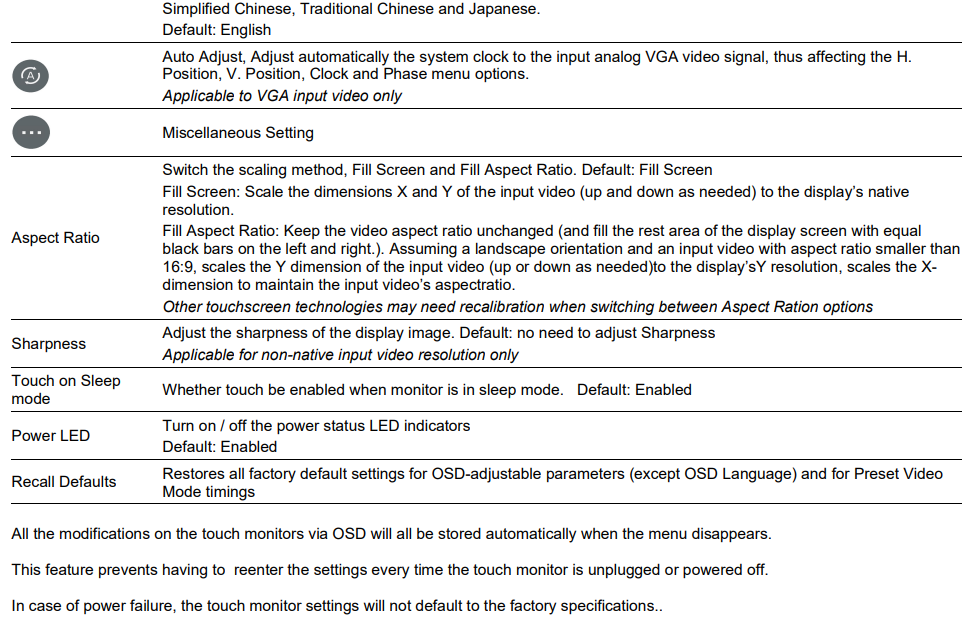

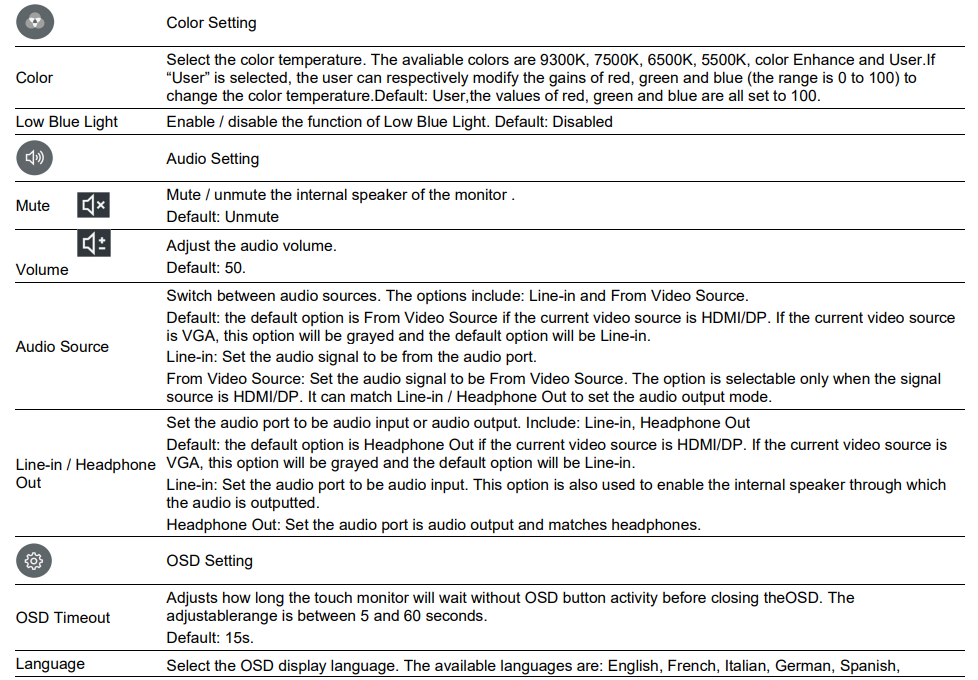

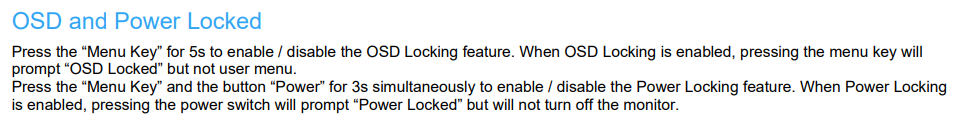

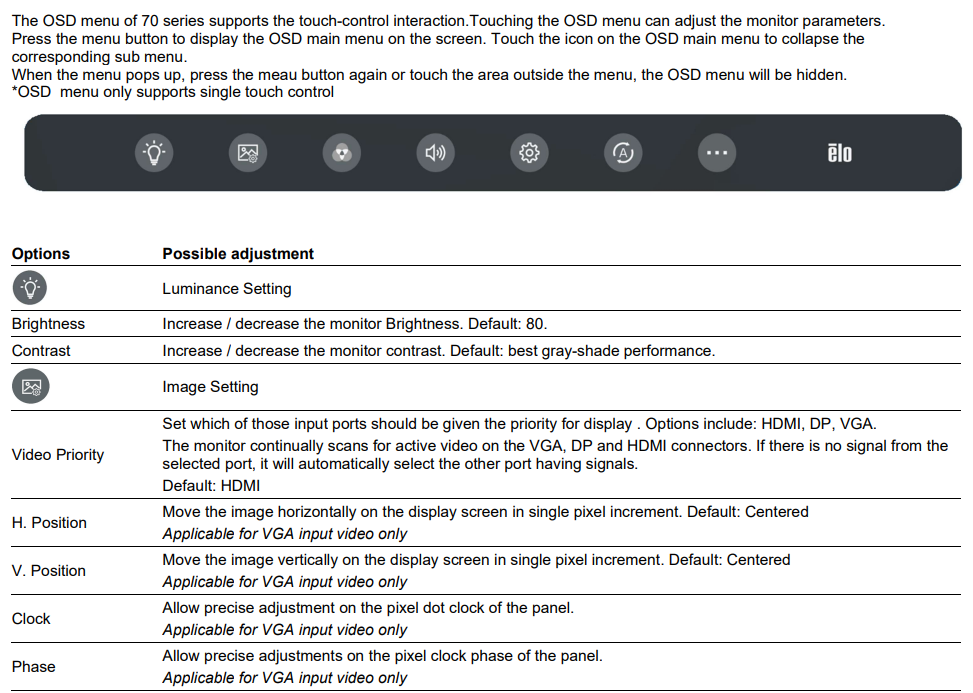

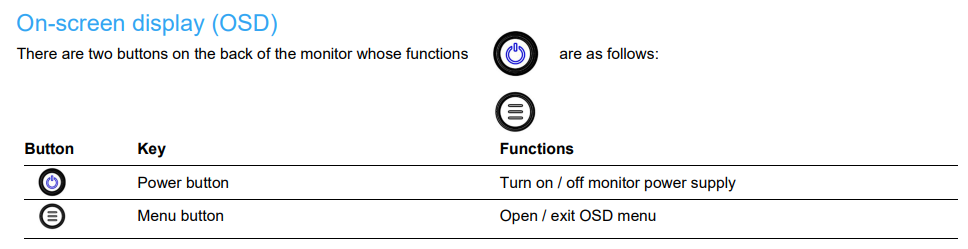

Onde posso encontrar informações sobre o menu OSD da série 70?

Este artigo descreve o menu OSD que está embutido nos monitores touch da Série 70 (2270L, 2470L, 2770L)

Essas informações também podem ser encontradas no Manual do Usuário da Série 70
