Como posso saber qual scanner 2D da Elo/Zebra eu tenho?

Este artigo explica como determinar qual Scanner 2D Elo/Zebra você possui

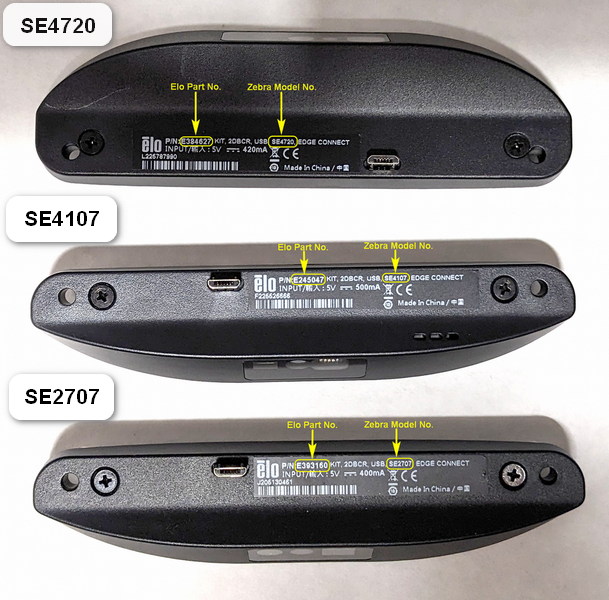

Atualmente, a Elo vende Scanners de Código de Barras 2D integrados com os motores de escaneamento OEM da Zebra. No momento da escrita deste artigo, você pode adquirir scanners integrados com os motores de escaneamento OEM da Zebra: SE2707, SE4107 e SE4720. As fotos abaixo indicam como distinguir qual scanner você possui.

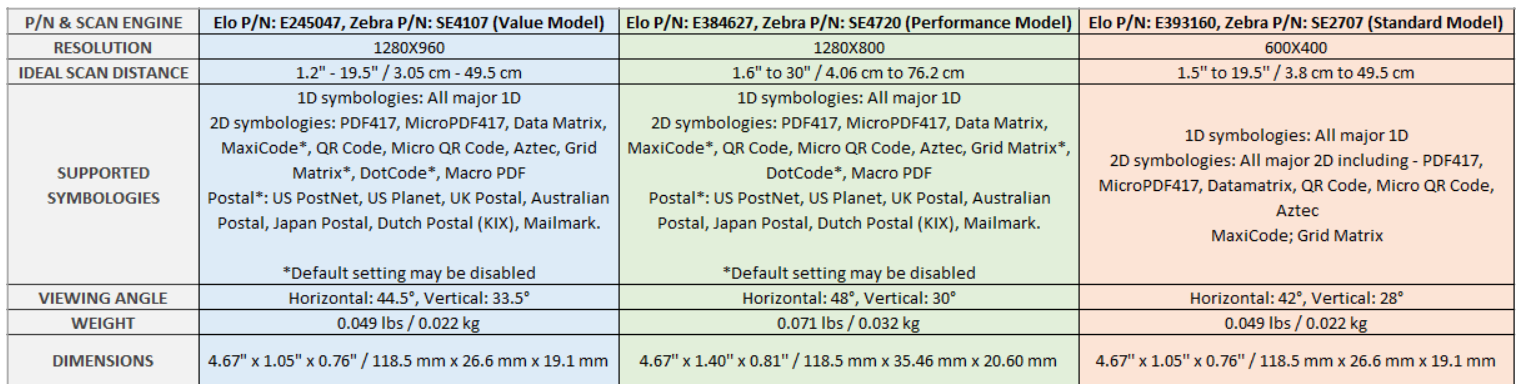

Abaixo mostra uma comparação lado a lado entre os motores de escaneamento SE4107, SE4720 e SE2707 oferecidos nos Scanners de Código de Barras 2D da Elo:  E245047 (SE4107), E384627 (SE4720), E393160 (SE2707)
