Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти распиновку разъема LVDS на Эло 10-дюймовом дисплейном модуле?

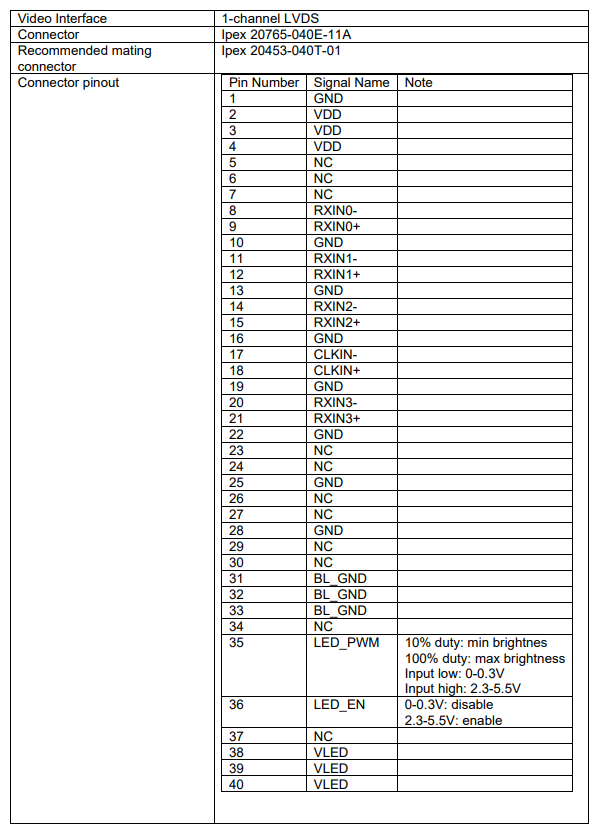

В этой статье показана распиновка на LVDS разъеме модуля отображения Elo размером 10,1 дюйма, P/N:E270763



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
