Где я могу найти распиновку разъема LVDS для дисплейного модуля Elo 7 дюймов?

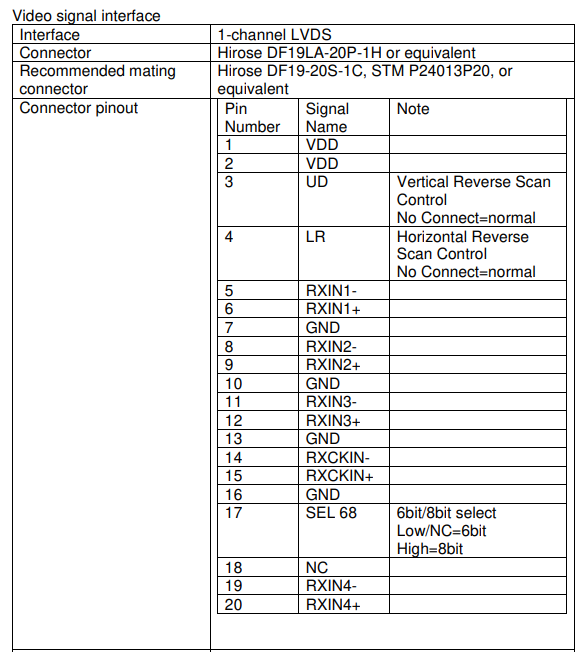

В этой статье представлена распиновка LVDS-разъема на 7-дюймовом дисплейном модуле Elo, P/N:E271156
