Где я могу найти размерный чертеж для P/N: E541676, Elo Edge Connect 10-Key Keypad?

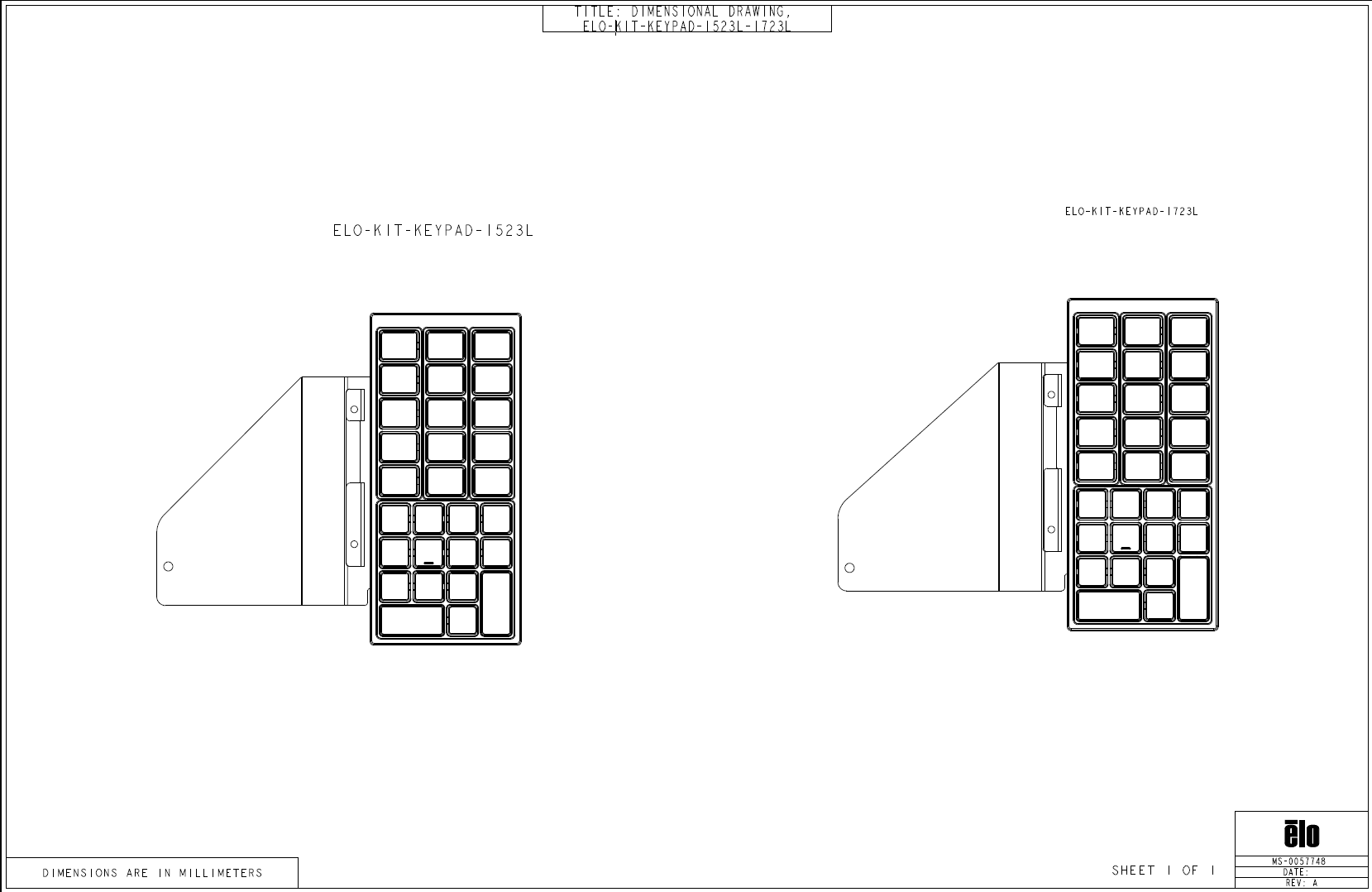

В этой статье представлен размерный чертеж для P/N: E541676, Elo Edge Connect 10-Key Keypad.

Скачать файл .STP CAD

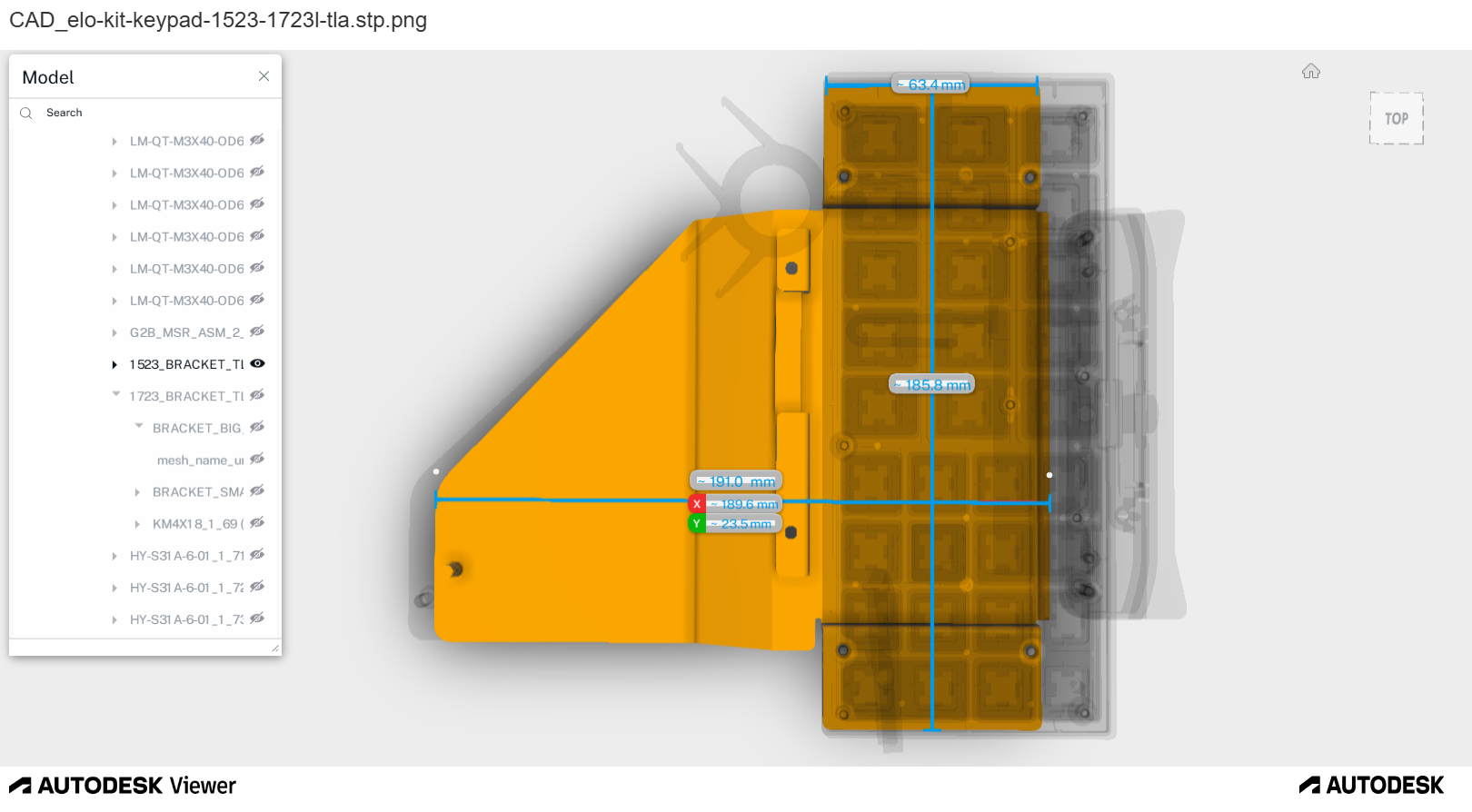

CAD_elo-kit-keypad-1523-1723l-tla.stp (4).png

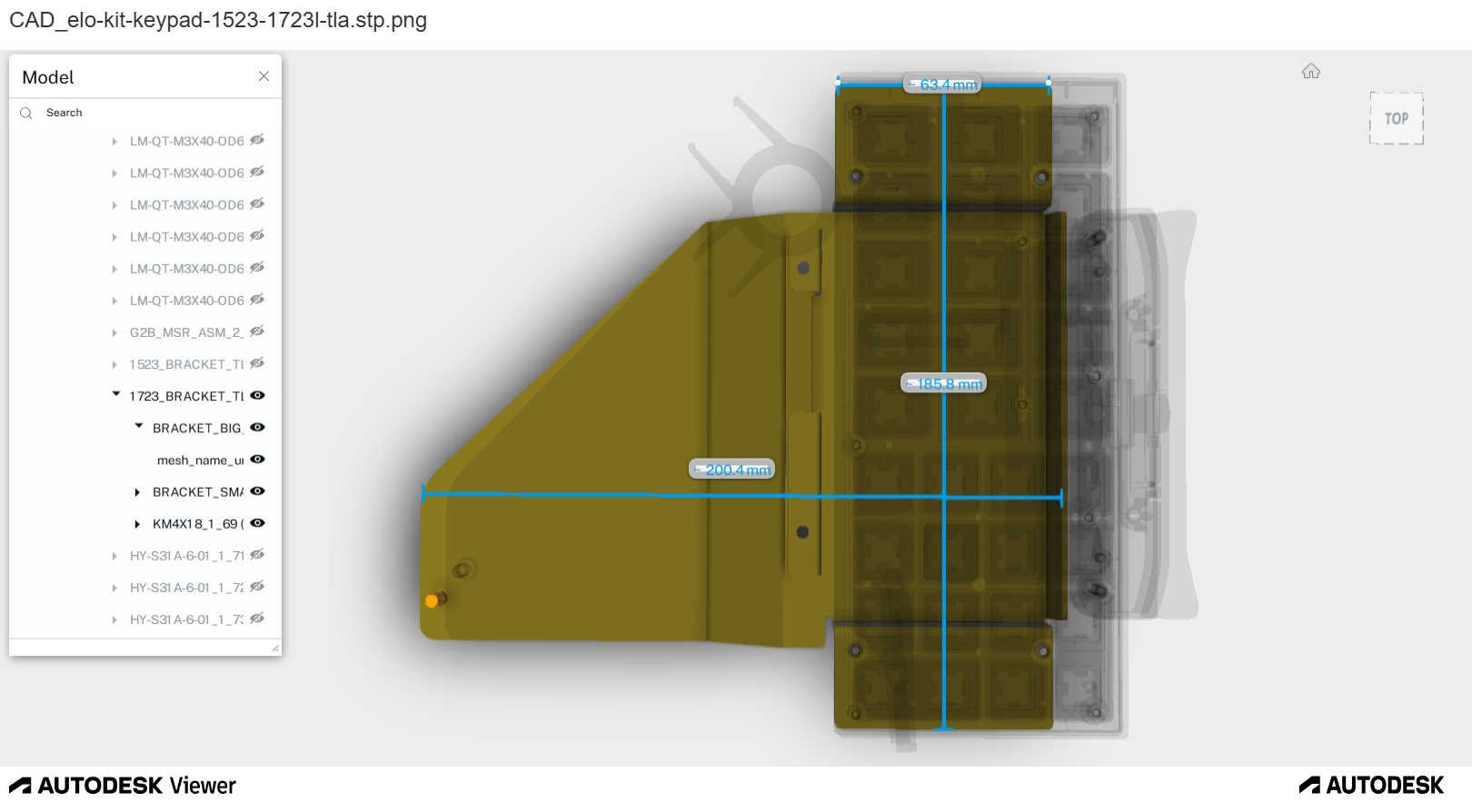

CAD_elo-kit-keypad-1523-1723l-tla.stp (3).png
