Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

X-Serisi için P/N: E038989 Arka Yüzeye Montaj Polu hakkında bilgi nerede bulabilirim?

Bu makale, X-Series için P/N: E038989 arka yüzey montajı hakkında bilgi vermektedir

Aşağıda Elo P/N: E038989 Arka Yüzey Montajı için X-Series AIO TouchComputer hakkında bilgiler bulunmaktadır.

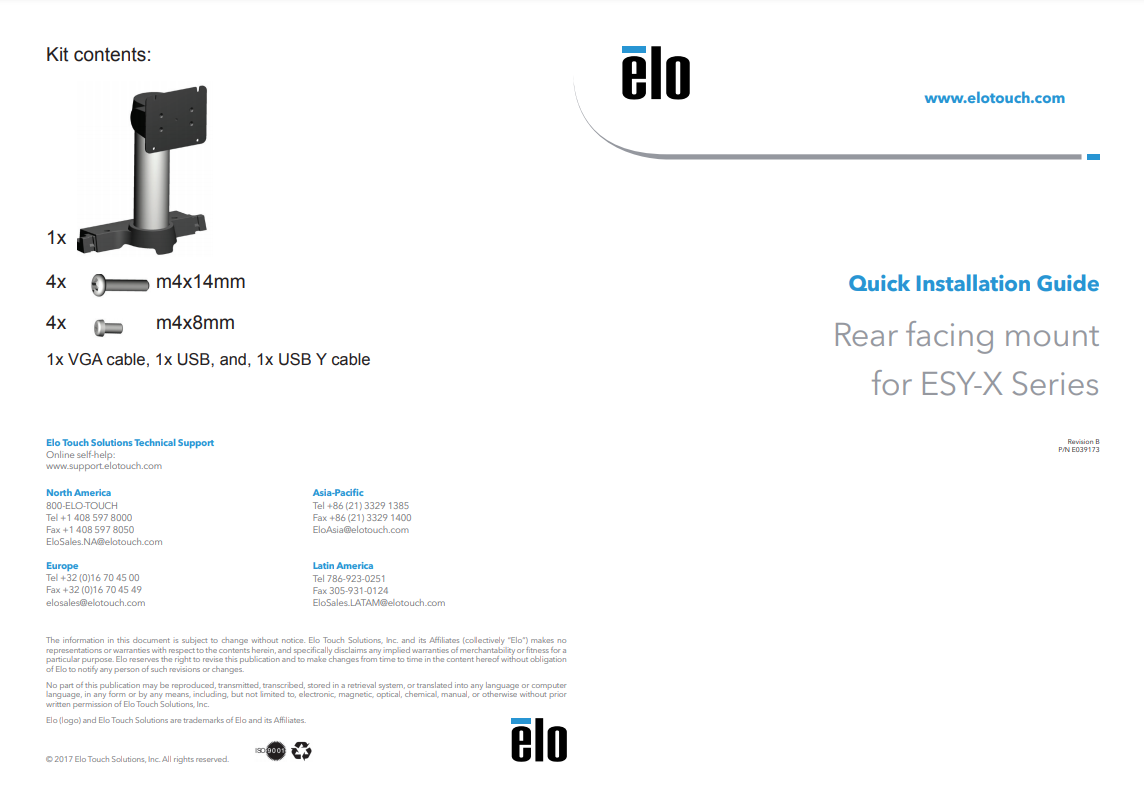

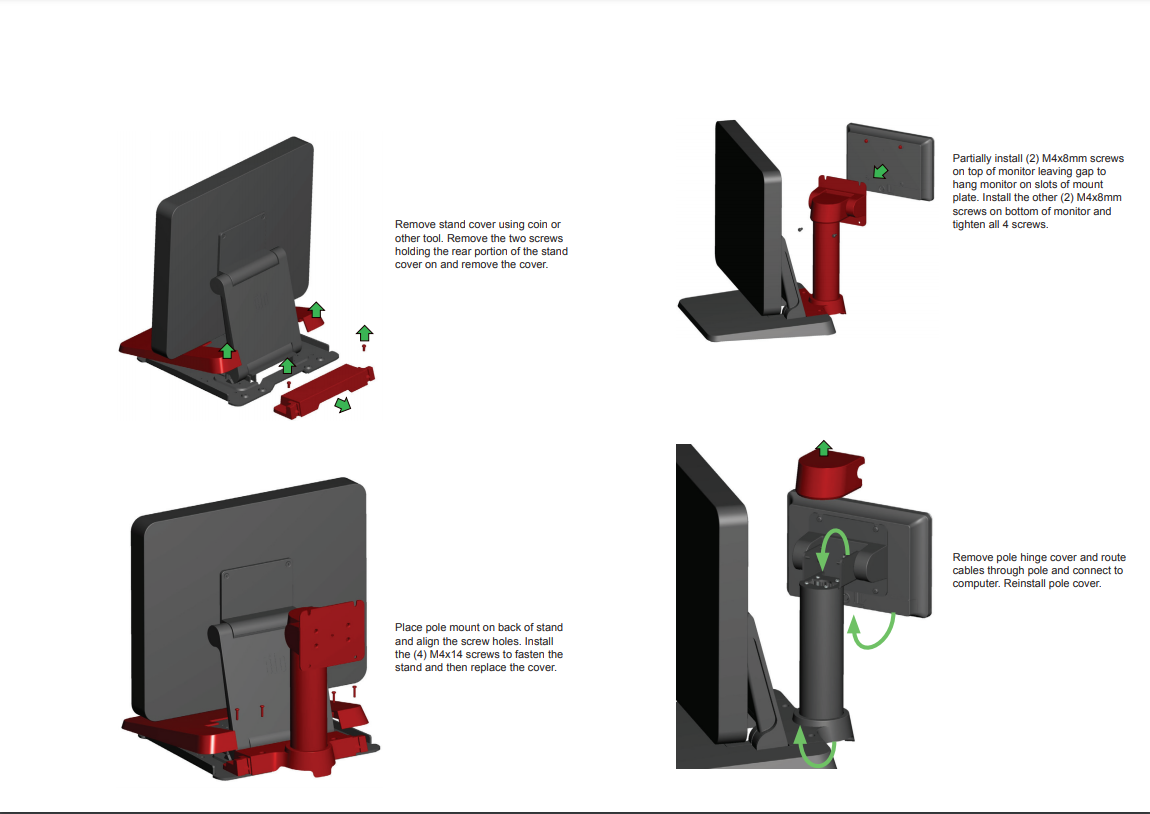

Hızlı Kurulum Kılavuzu:

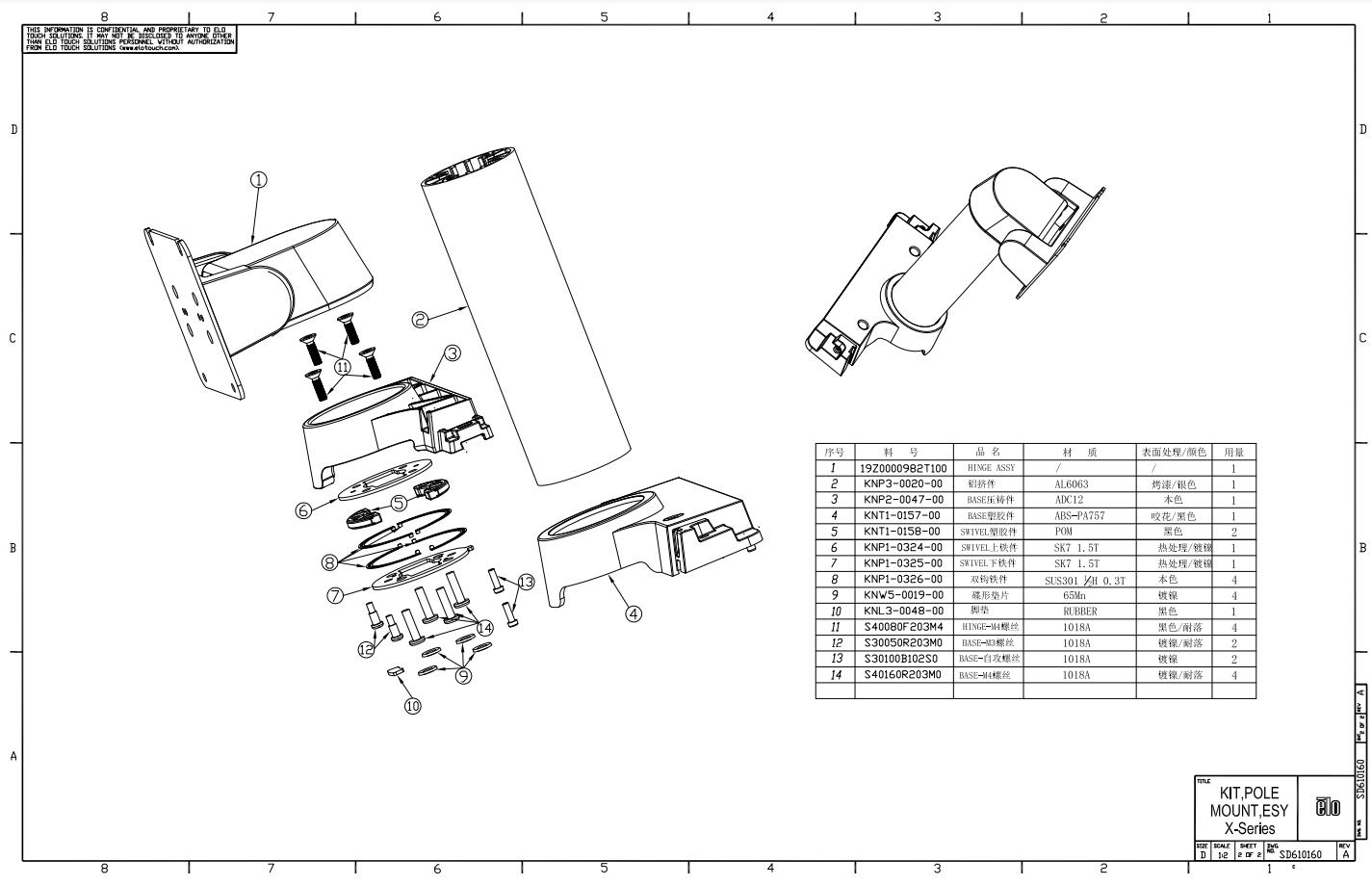

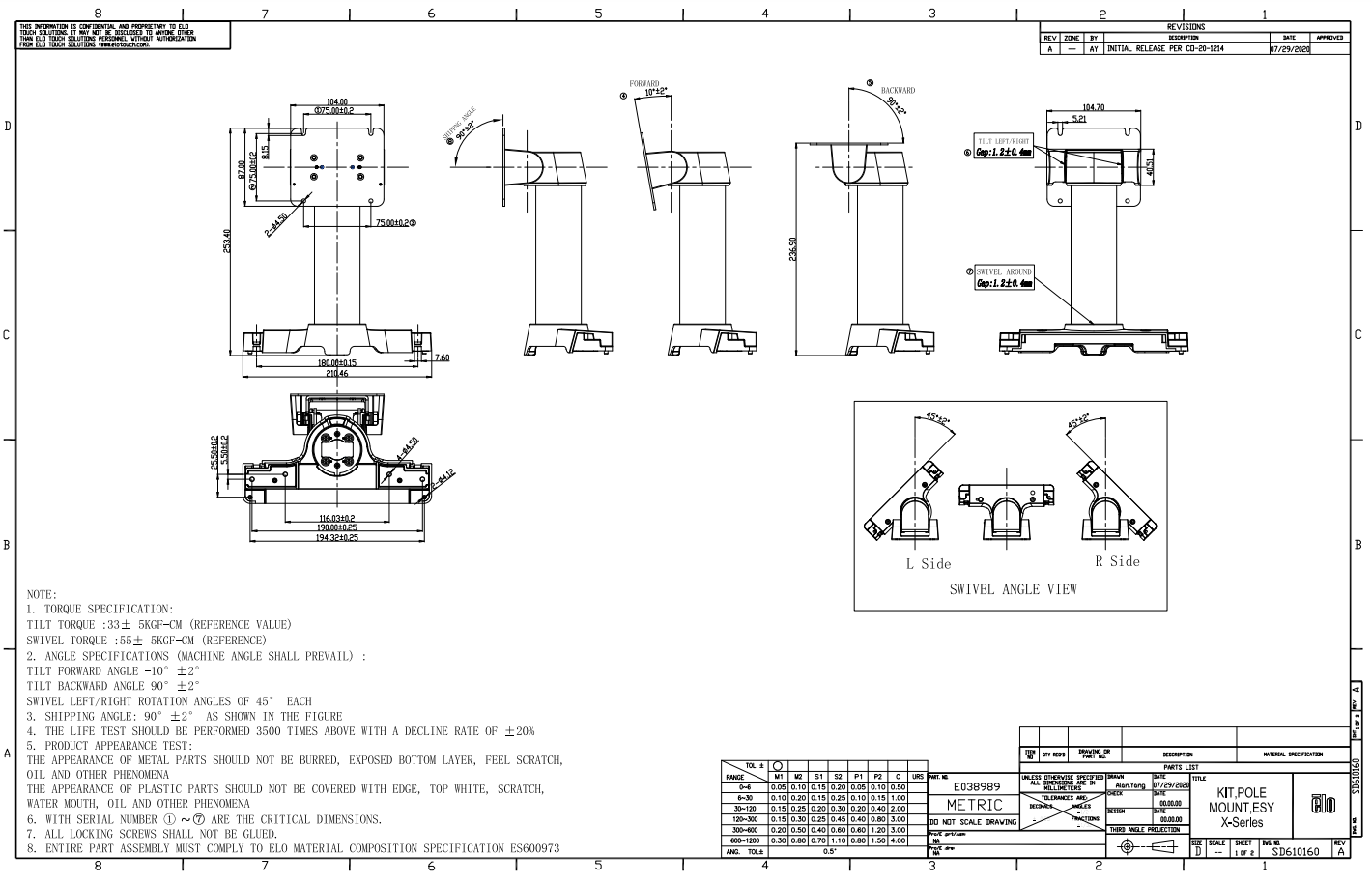

Boyutsal Çizimler:

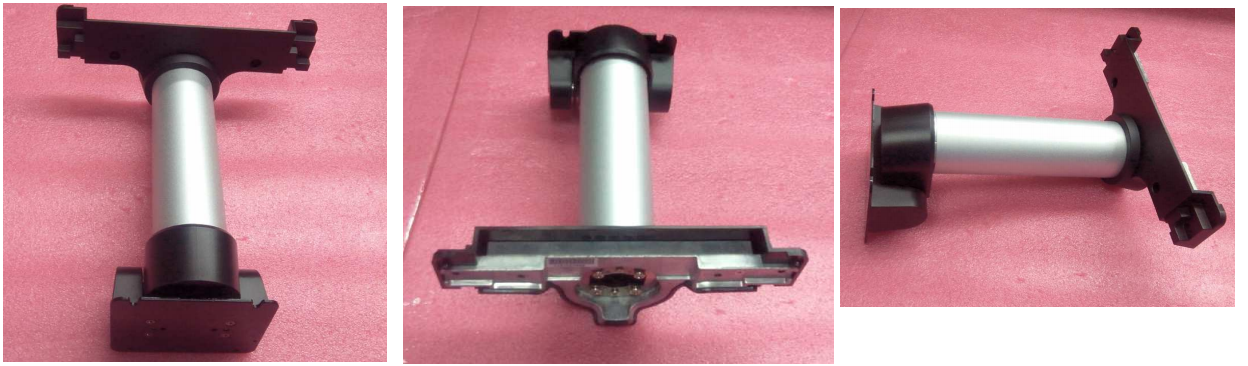

Fotoğraflar:


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
