E668194, Elo 2293L-2294L Ön Montaj Çerçeve Kiti Hakkında Bilgi Nerede Bulabilirim?

Bu makale E668194, Elo 2293L-2294L Ön montaj Çerçeve Kiti hakkında bilgi verir

E668194, Elo 2293L-2294L Ön montaj Çerçeve Kiti, yalnızca ürünlerin intelliTouch, SecureTouch, AccuTouch versiyonları için uygundur.

Kit İçeriği:

  • 4 x L Braket
  • 4 x Ön montaj braketleri
  • 16 x M4*6 Montaj Vidaları
  • 4 x sızdırmazlık köpüğü şeritleri-hv
  • 1 x Ön montaj metal çerçeve - siyah

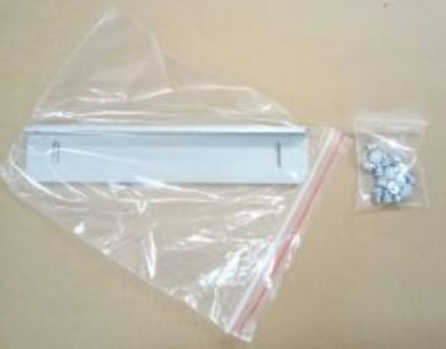

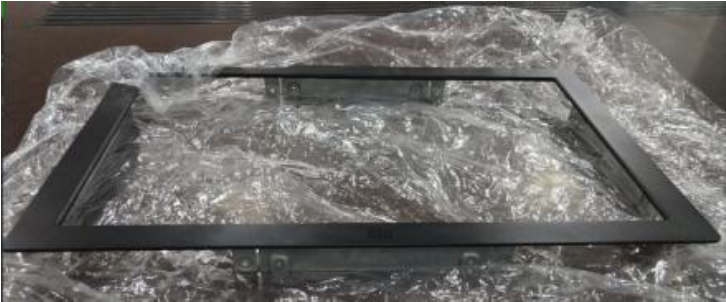

Fotoğraflar

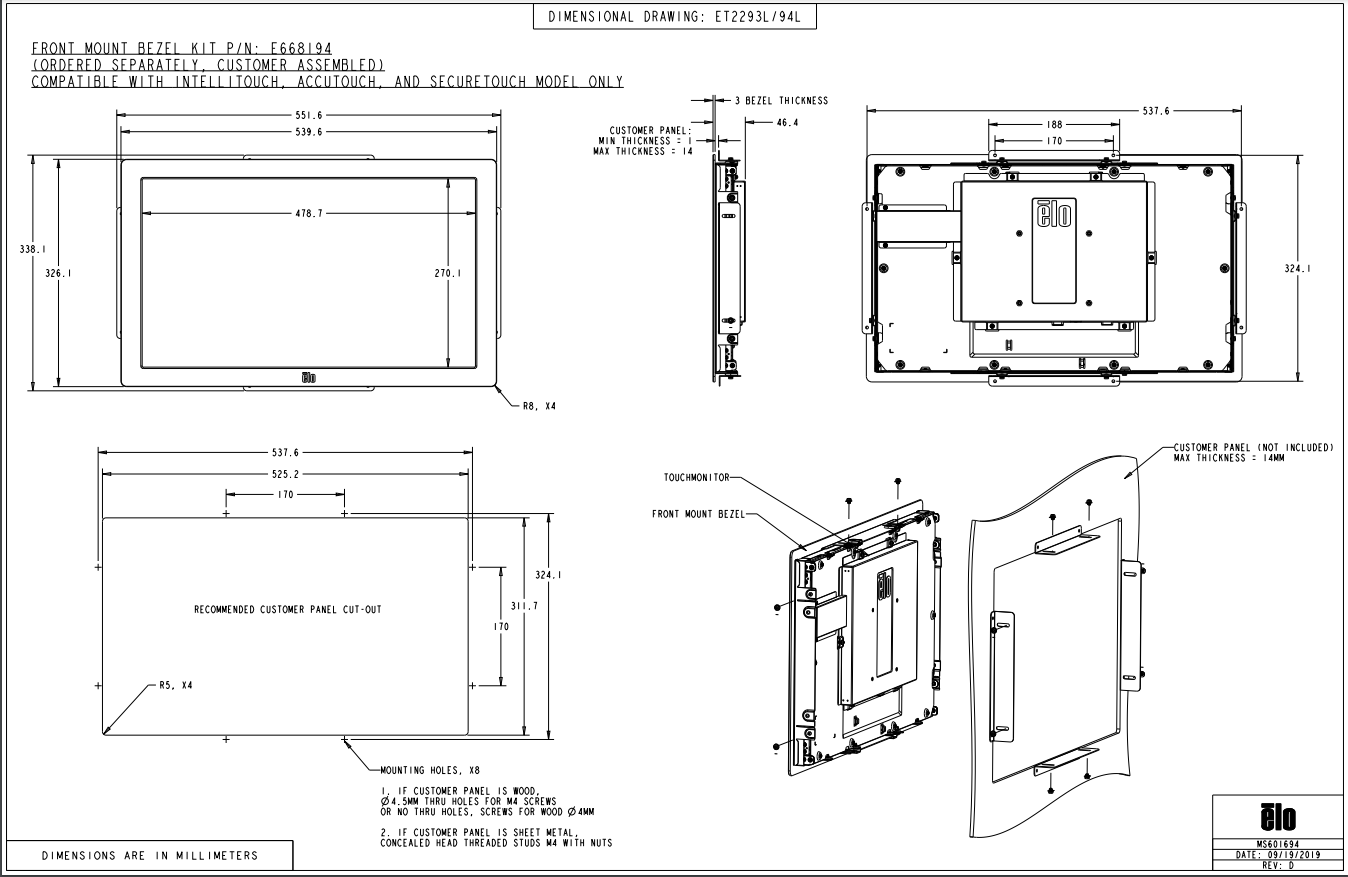

Çizim ve Montaj
