本文提供了Elo 5553L显示器的rs232 TRS插孔的串行协议和引脚分配

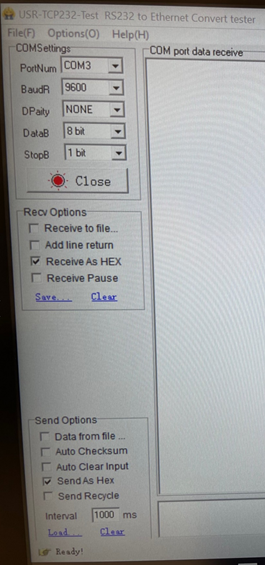

Elo 5553L/6553L IDS显示器上使用的RS232串行协议如下。
- 波特率 = 9600
- 校验位 = 无
- 数据位 = 8
- 停止位 = 1

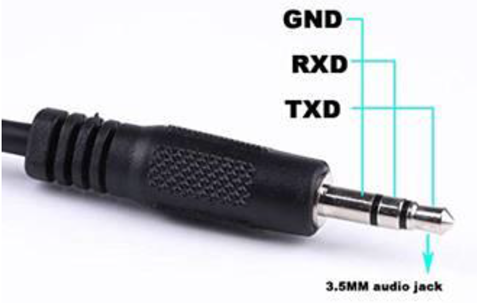

下方显示了串行RS232的3.5mm TRS插孔的引脚分配和示意图。
