在哪里可以找到 E047458，6 英寸杆式安装套件的尺寸图纸？

本文提供 E047458，6 英寸杆式安装工具包的尺寸图纸

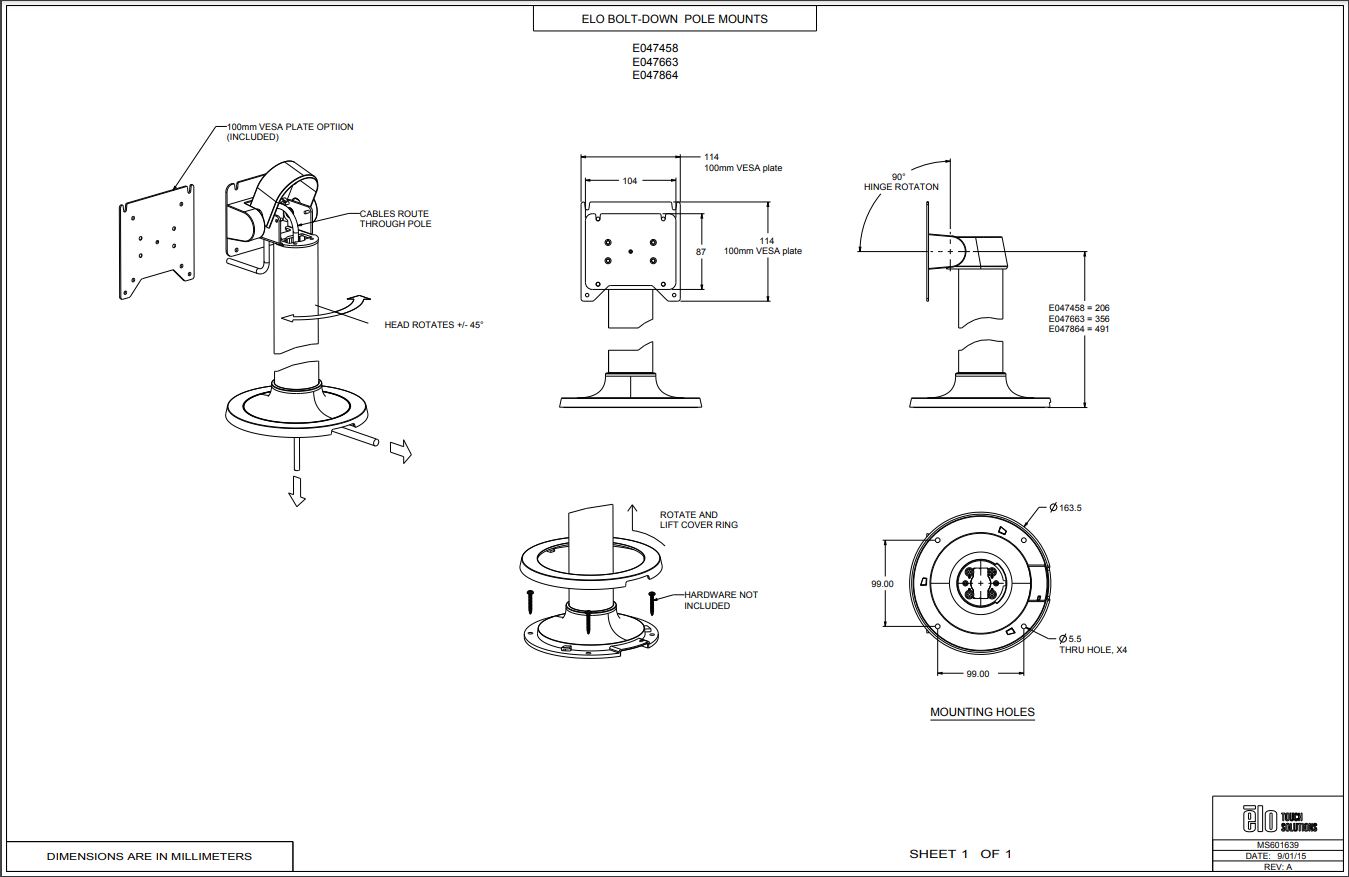

E047458，6 英寸杆式安装工具包尺寸图纸

以下图纸也可在 Elo 网站上找到 此处

请求 CAD 图纸 此处

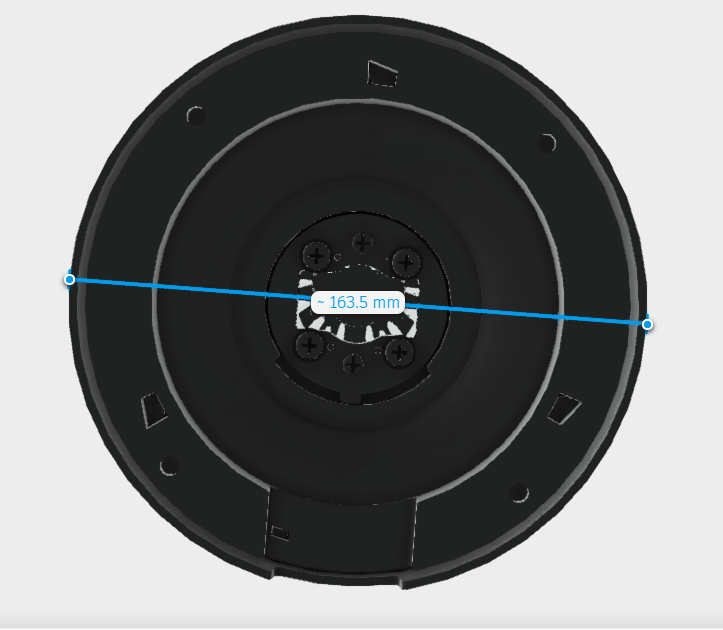

以下显示支架底座直径测量 = 163.5mm
