欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到Elo 10英寸显示模块上LVDS连接器的引脚图？

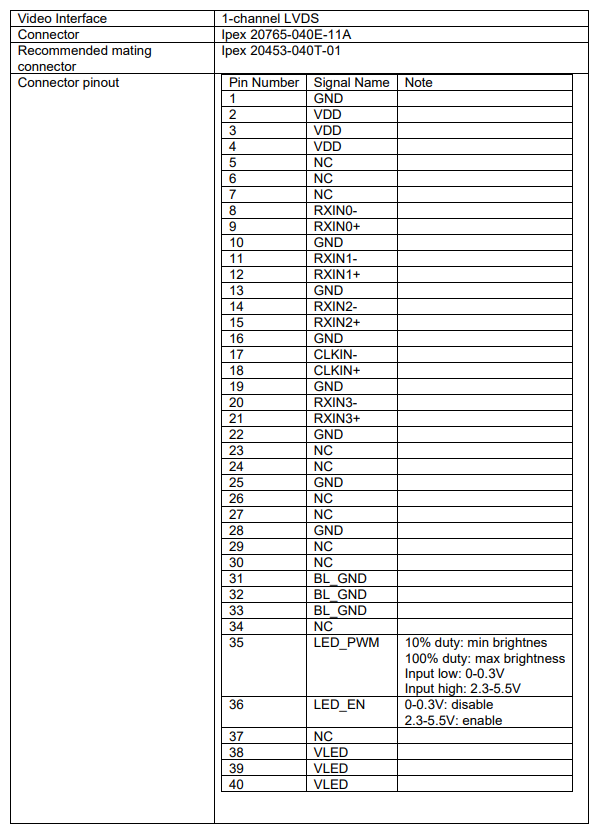

本文展示了Elo 10.1英寸显示模块LVDS连接器的引脚排列，部件编号：E270763



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
