我在哪里可以找到触摸屏显示模块上LVDS连接器的规格？

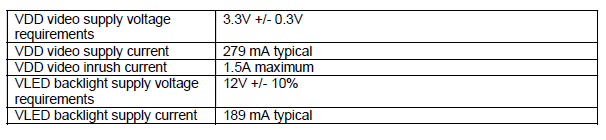

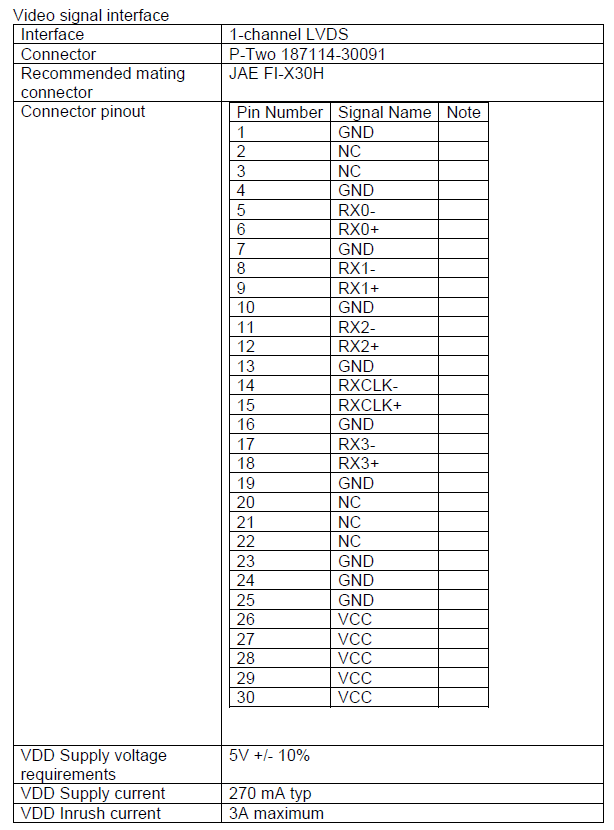

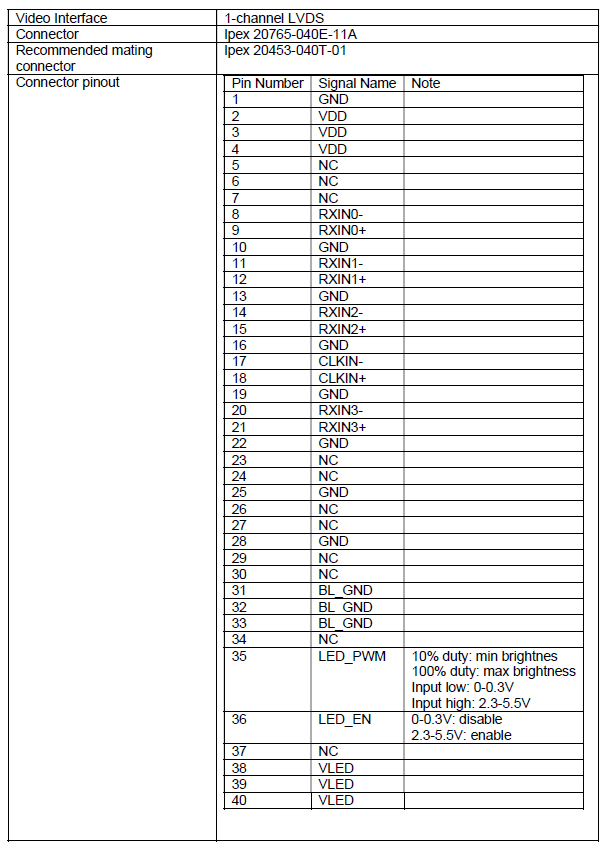

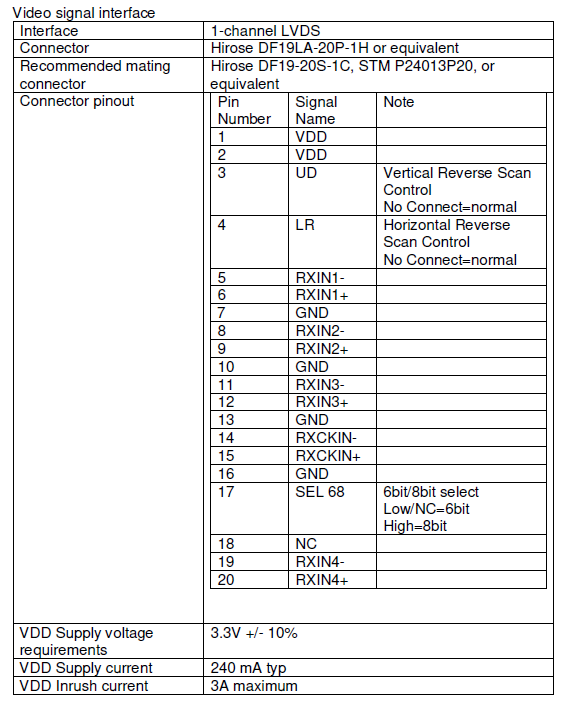

以下是Elo触摸屏显示模块的LVDS连接器规格；7英寸、10英寸和15英寸

  • E271156: TDM-TP-FZW7.0-E270564-AB-R, Elo 7英寸TouchPro PCAP触摸屏显示模块


  • E270763: LCM-TP-FZW10.1-E270180-AB-R, Elo 10.1英寸TouchPro PCAP触摸屏显示模块


  • E270963: TDM-TP-FZW15.6-E270380-AB-R, Elo 15.6英寸TouchPro PCAP触摸屏显示模块



如发现任何链接损坏，请通过电子邮件发送至 support@elotouch.com 并包含知识文章的链接

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
