我在哪里可以找到 E143088 壁挂套餐的尺寸图？

本文提供E143088壁挂支架的尺寸图

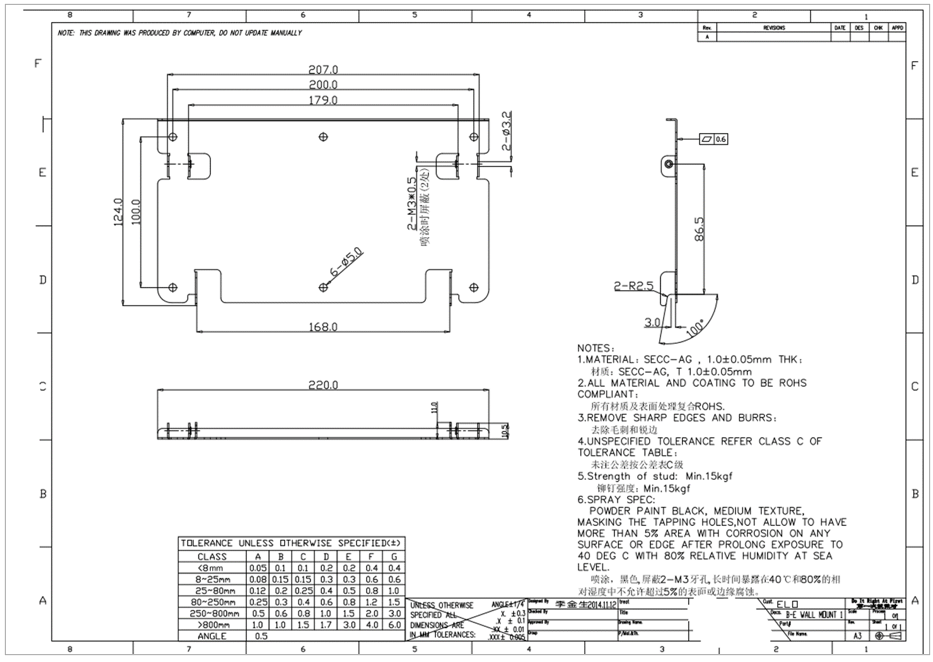

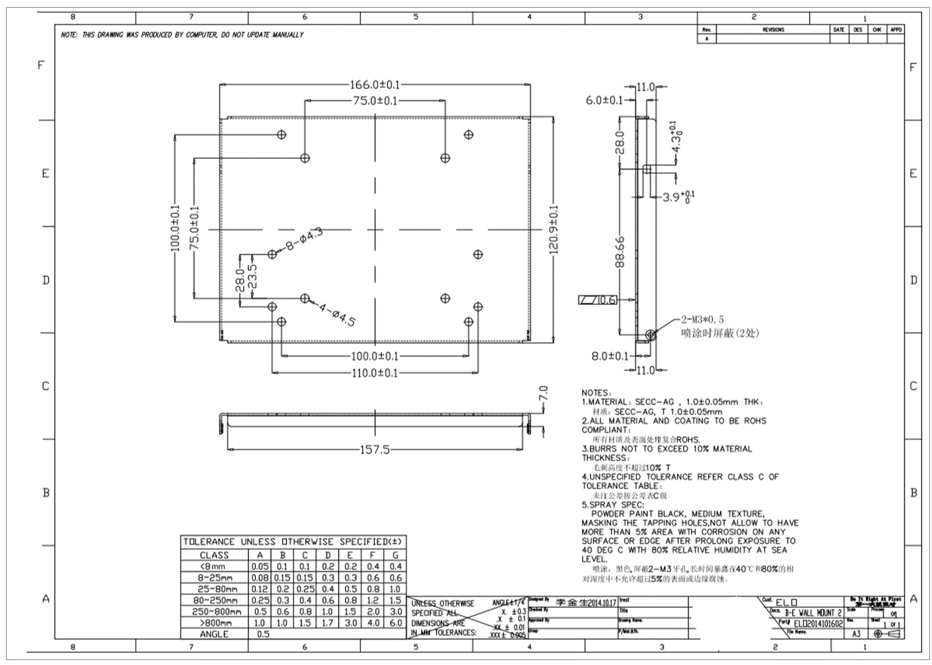

请参见下面E143088壁挂支架的尺寸图，适用于E-I-X系列基于英特尔Windows的一体机触控电脑。




下载以上图纸的.pdf文件 这里 .
