Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

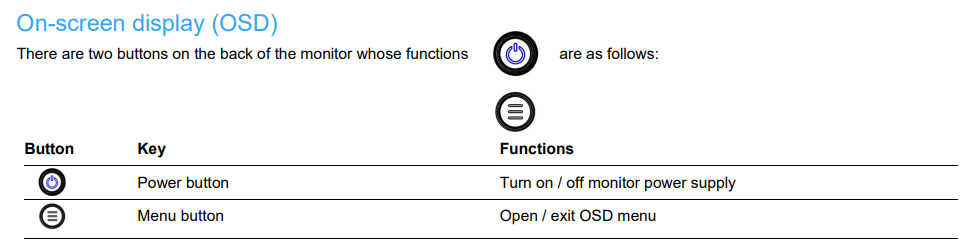

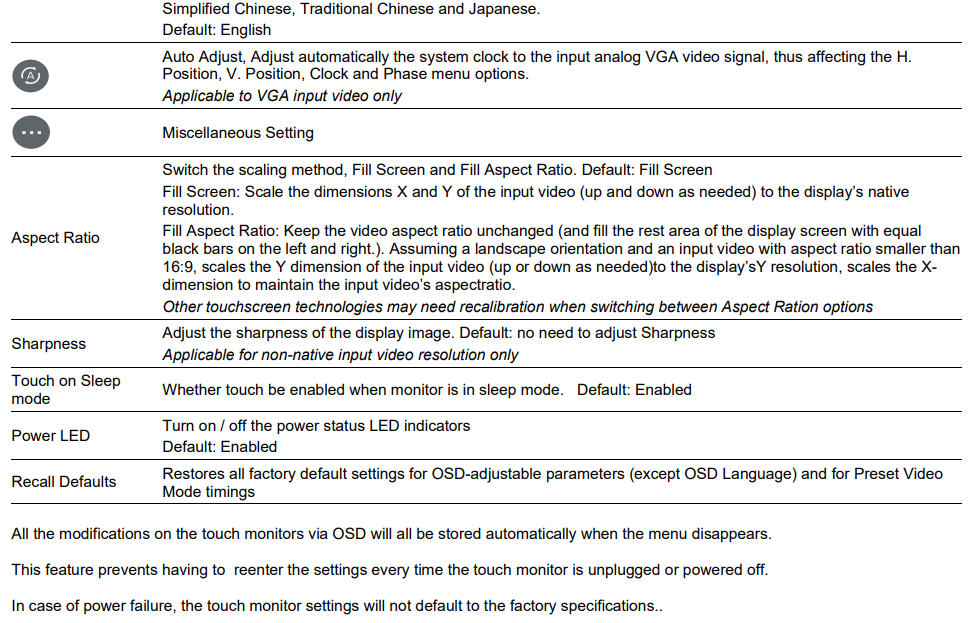

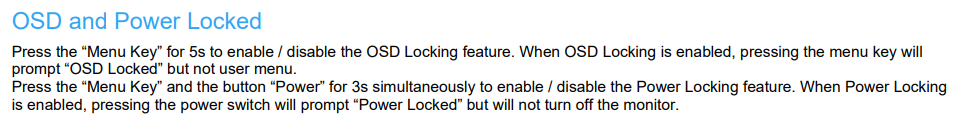

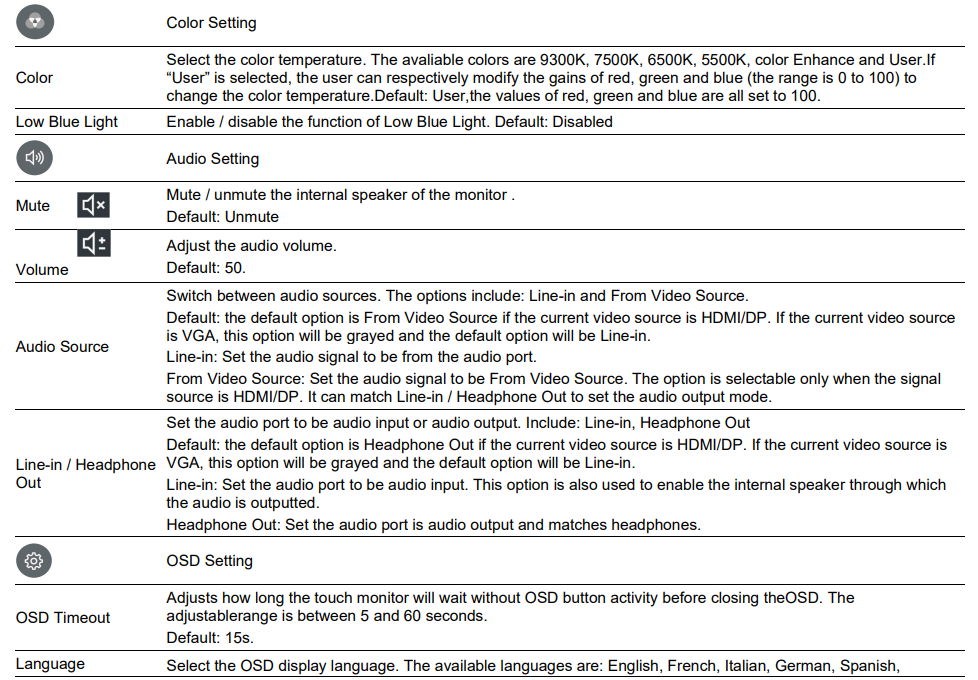

Wo finde ich Informationen zum OSD-Menü der 70-Serie?

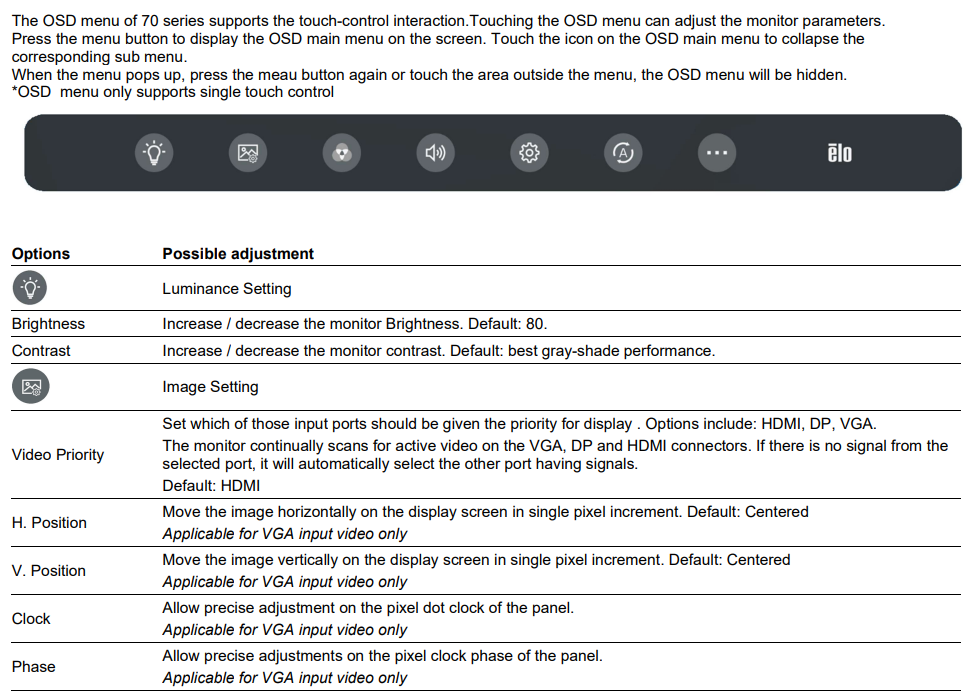

In diesem Artikel wird das OSD-Menü beschrieben, das in den Touchmonitoren der 70-Serie (2270L, 2470L, 2770L) integriert ist

Diese Informationen finden Sie auch im Benutzerhandbuch der 70-Serie


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
