Wie installiere ich die Flush-Mount-Winkel am 3263L / 4363L Monitor?

Dieser Artikel zeigt, wie man die Flushmount-Halterungen an den 63-Serie Open Frame Monitore installiert (3263L, 4363L)

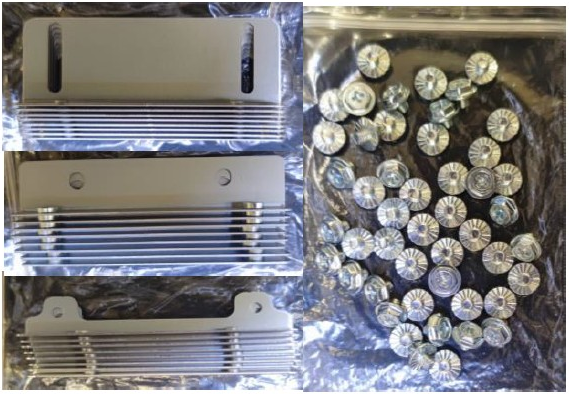

Die Monitore enthalten 8 Sätze Flushmount-Halterungen 48 Stück Schrauben

  • Ersatzhalterungskits können separat gekauft werden

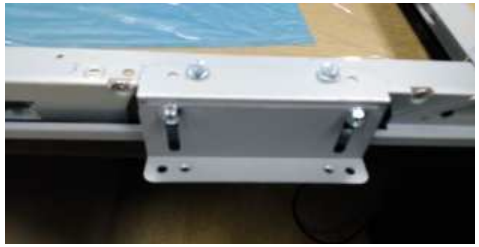

Beispiel von montierten Halterungen am Monitor:

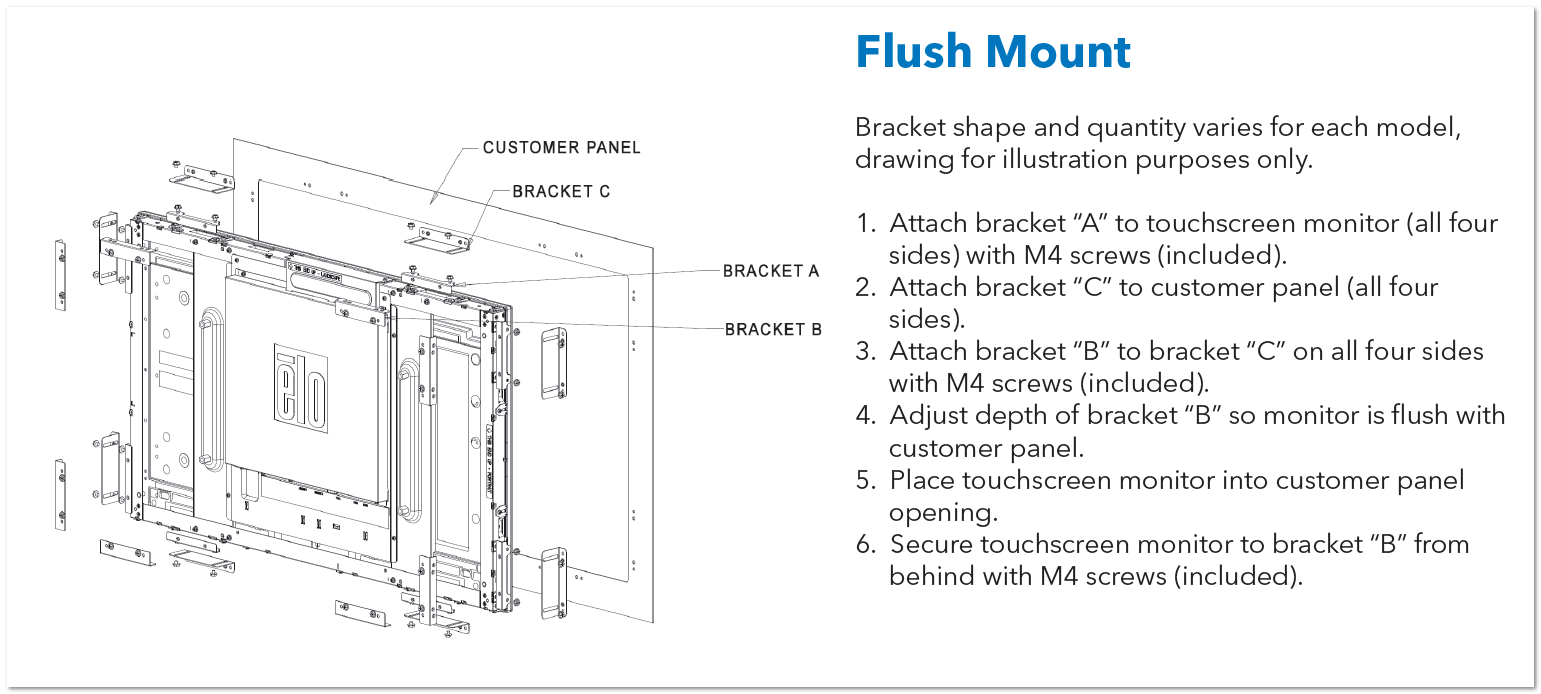

Aus dem QIG

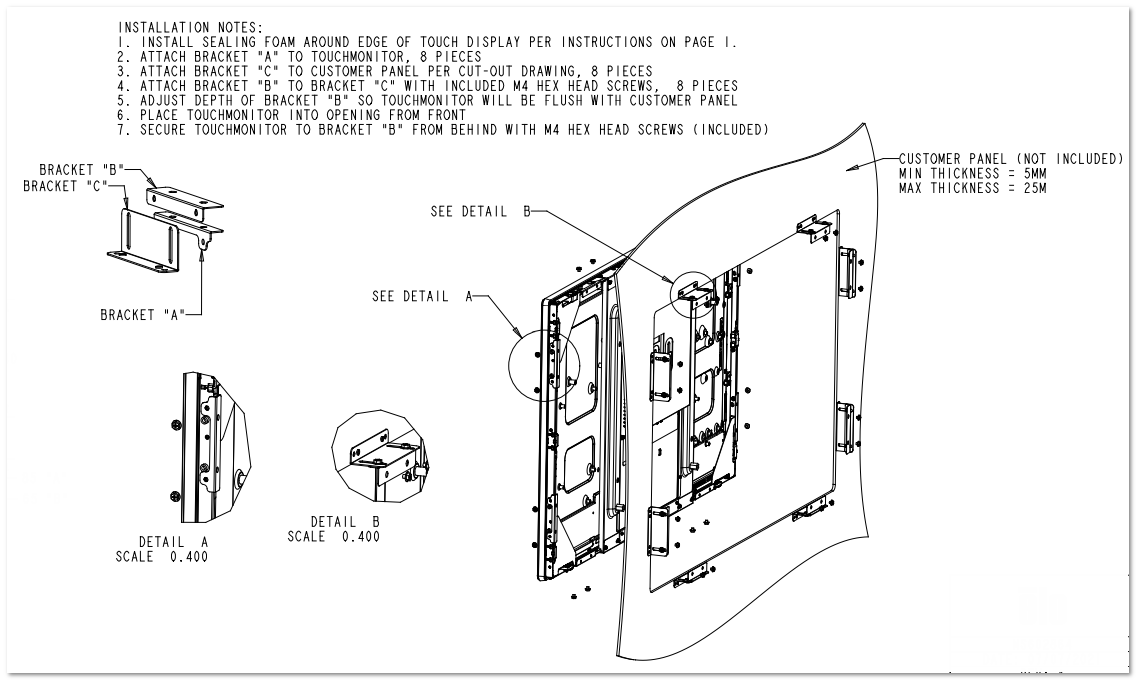

Aus der Maßzeichnung 3263L:

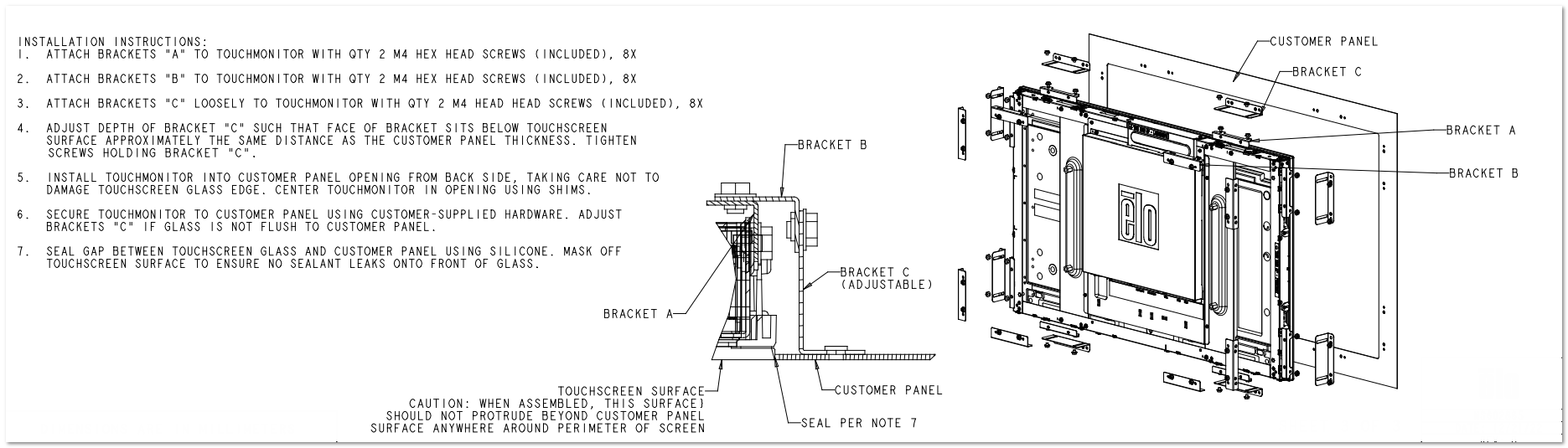

Aus der Maßzeichnung 4363L:
