This article explains how to update the BIOS on a legacy Elo X3 Revision B All-in-One (AIO) Touchcomputer using the latest available BIOS firmware.
⚠ Legacy Product Notice
This article applies only to the Elo X3 Revision B Touchcomputer. This product has been discontinued and is no longer supported. The BIOS files provided in this article are the final firmware releases available for this product family.
This article applies only to the Elo X3 Revision B Touchcomputer. This product has been discontinued and is no longer supported. The BIOS files provided in this article are the final firmware releases available for this product family.
⚠ Warning
The BIOS files provided in this article are intended only for the Elo X3 Revision B Touchcomputer. Installing this BIOS on any other Elo system may permanently damage the hardware.
The BIOS files provided in this article are intended only for the Elo X3 Revision B Touchcomputer. Installing this BIOS on any other Elo system may permanently damage the hardware.
ℹ Overview
Follow this procedure to update the system BIOS using a bootable USB flash drive. The same procedure applies to both BIOS versions listed below. Simply use the files contained in the appropriate BIOS package.
Follow this procedure to update the system BIOS using a bootable USB flash drive. The same procedure applies to both BIOS versions listed below. Simply use the files contained in the appropriate BIOS package.
Requirements
- Elo X3 Revision B AIO Touchcomputer
- Bootable USB flash drive
- USB keyboard (optional)
- BIOS firmware package
ℹ Note
The bootable USB creation guide references a third-party formatting utility. Elo provides this guide as a convenience but does not provide technical support for third-party software and is not responsible for any issues that may result from its use.
The bootable USB creation guide references a third-party formatting utility. Elo provides this guide as a convenience but does not provide technical support for third-party software and is not responsible for any issues that may result from its use.
Downloads
Create a Bootable USB Flash Drive
📄 How to Create a Bootable USB Flash Drive
| Model | BIOS Download |
|---|---|
| ESY15/17/20 X3 Rev. B | SA30V113_H110.zip |
| ESY15/17/20 X3 Rev. B | SA30V116_H110.zip |
Update the BIOS
- Download the desired BIOS package (V113 or V116) and save it to your computer.
- Extract the contents of the ZIP file.

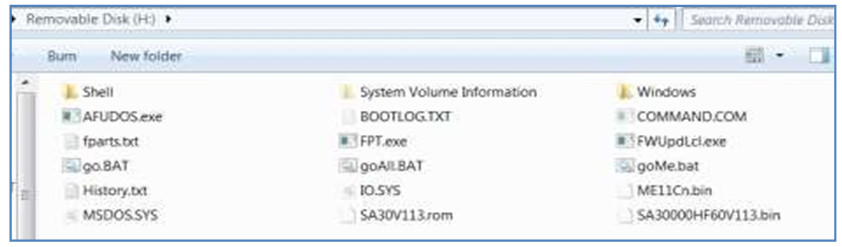

- Copy all extracted files to the root of the bootable USB flash drive.
- Insert the USB flash drive into the X3 Revision B Touchcomputer.
- Restart the computer. During startup, tap the SETUP icon in the upper-right corner of the screen to enter the BIOS. Alternatively, connect a USB keyboard and repeatedly press the Delete (DEL) key during startup.

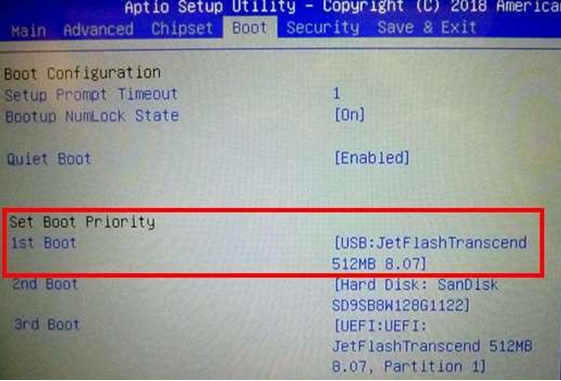

- Navigate to the Boot menu and configure the USB flash drive as the first boot device.

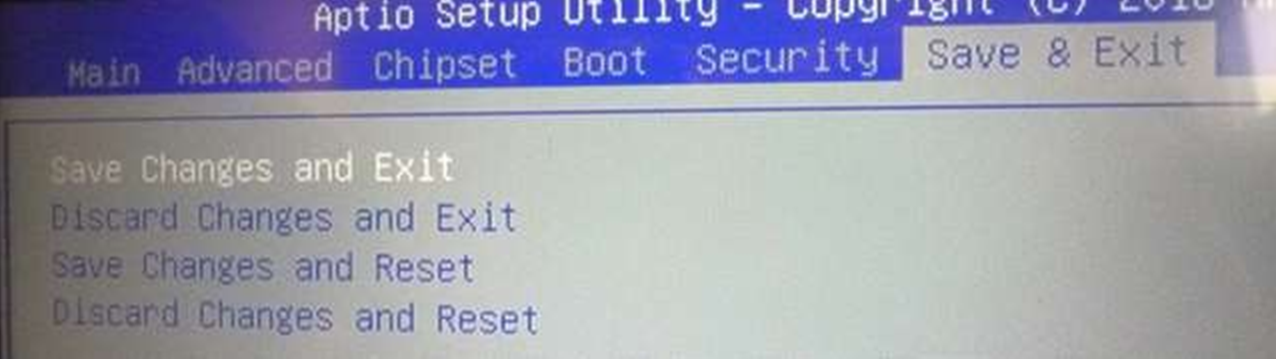

- Save your BIOS settings and exit.

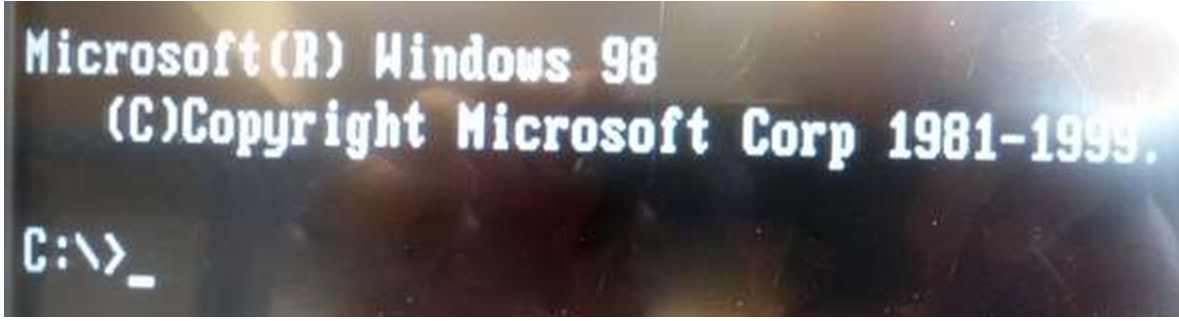

- The system will boot to a DOS command prompt.
-

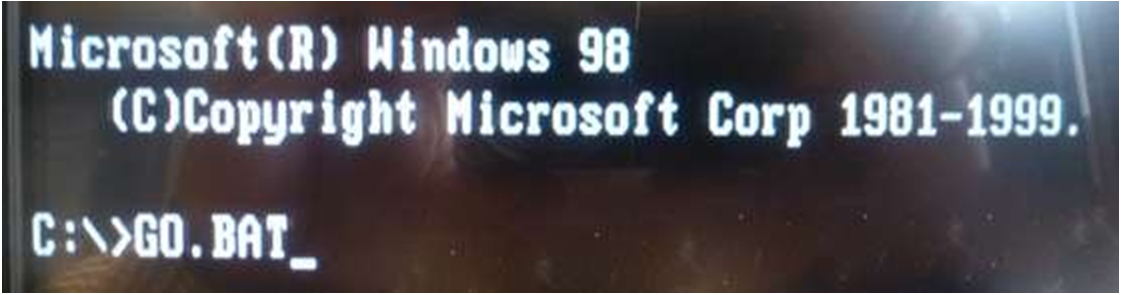

Run the appropriate BIOS update command:
-
SA30V113:
GO.BAT -
SA30V116:
FlashH110.BAT
-
SA30V113:

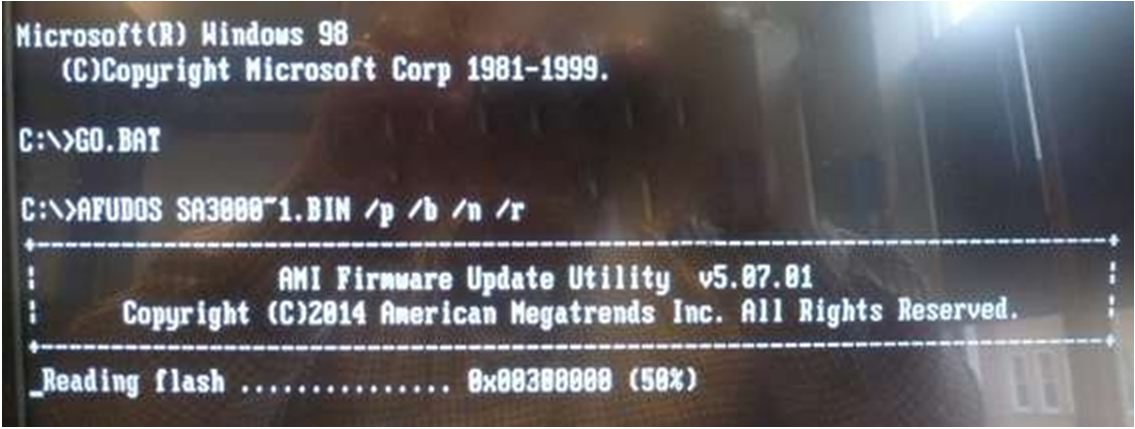

- The BIOS update will begin. The update typically completes in less than five minutes.

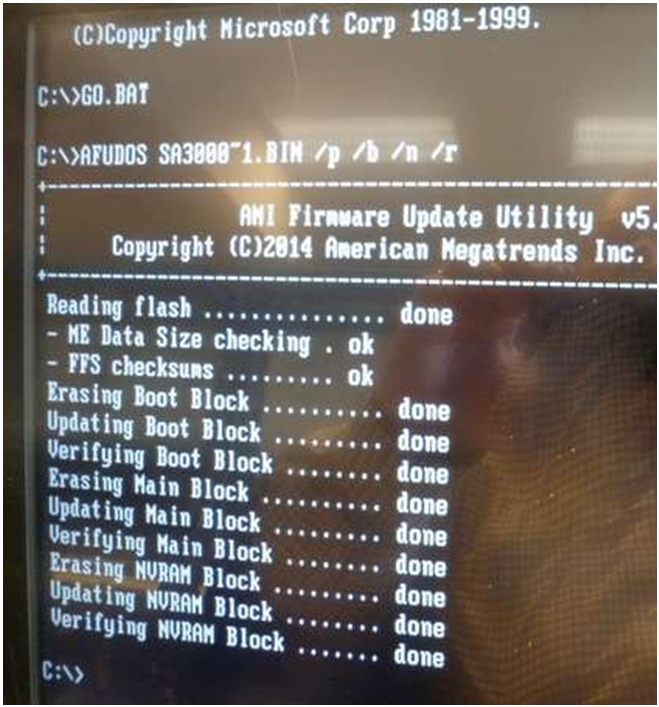

- When the update completes and the C:\ prompt reappears, remove the USB flash drive and restart the computer.

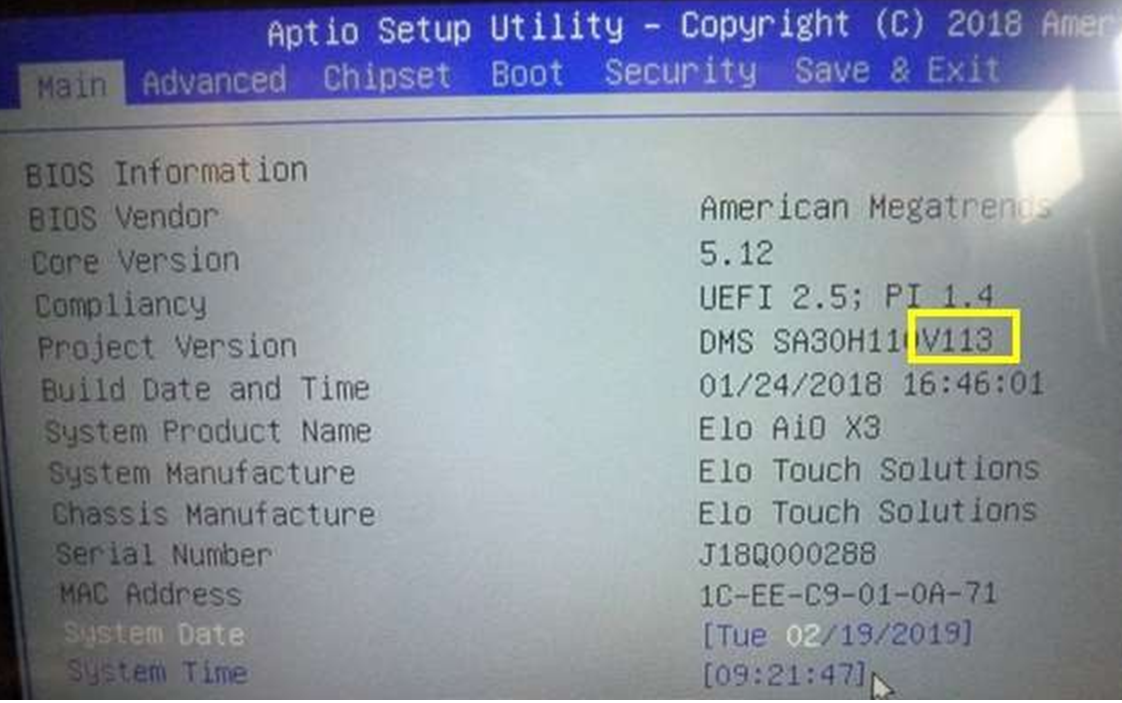

- Enter the BIOS and verify the Project Version shown on the Main tab reflects the BIOS version you installed.
⚠ Important
Do not power off the system, remove power, or interrupt the BIOS update while it is in progress. Interrupting the update may permanently damage the system.
Do not power off the system, remove power, or interrupt the BIOS update while it is in progress. Interrupting the update may permanently damage the system.
Troubleshooting
⚠ Troubleshooting
- Verify the USB flash drive is bootable.
- Ensure all BIOS files are copied to the root directory of the USB flash drive.
- Confirm the USB flash drive is configured as the first boot device.
- Verify you are running the correct batch file for the BIOS package you downloaded.
- After the update completes, verify the Project Version shown in the BIOS matches the installed firmware.
💡 Tip
If your X3 Revision B Touchcomputer is already running the latest BIOS version, no update is necessary. BIOS updates should only be performed when required to resolve a specific issue or install the final supported firmware revision.
If your X3 Revision B Touchcomputer is already running the latest BIOS version, no update is necessary. BIOS updates should only be performed when required to resolve a specific issue or install the final supported firmware revision.
