This article explains how to access the WiFi/Bluetooth module inside an EloPOS AIO unit.

WiFi/Bluetooth Specifications

• Elo P/N: E576849
• Description: Intel AC-9260 WiFi/Bluetooth Module, 802.11ac, Bluetooth 5.0

Procedure

Follow the steps below to access the WiFi/Bluetooth module on the EloPOS unit:

1. Disconnect power from the EloPOS unit.

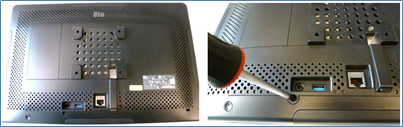

2. Place the unit face down on a clean, protective surface. Remove the Phillips screw from the lower access panel.

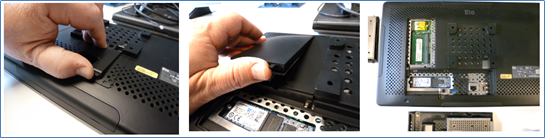

3. Remove the lower and upper access panels to gain access to the internal components.



4. Remove the tape, disconnect the WiFi antenna cables, and then remove the Phillips screw securing the WiFi/Bluetooth module.



Note

Use care when disconnecting the antenna cables to avoid damage to the connectors or the module.
