What are the instructions to setup and test EloPOS Cash Drawer?

This article describes how to install OPOS and JPOS cash drawer testing solutions on the EloPOS system

EloPOS - Cash Drawer Setup and Testing Instructions

Hardware Requirements

• EloPOS System
• Cash Drawer – Tested with APG’s MultiPRO 320 interface
• Cash Drawer Cable – Tested with APG’s CD-101A cable

Software Requirements

OPOS Driver Solution

• EloUPOSSetup_4.0.6.zip – OPOS/JPOS drivers
• POSforDotNet-1.14.msi – Microsoft POS for .NET class library

JPOS Driver Solution

• EloUPOSSetup_4.0.6.zip – OPOS/JPOS drivers
• jdk-7u80-windows-x64.exe – Java Development Kit (JDK)
• POSTest-1.10.0-bin_x64-jdk1.7.zip – JPOS JDK 1.7 POS tester

Instructions for OPOS Driver Solution
1. Using the cash drawer cable, connect the RJ-12 end to the EloPOS system and the RJ-45 end to the cash drawer.

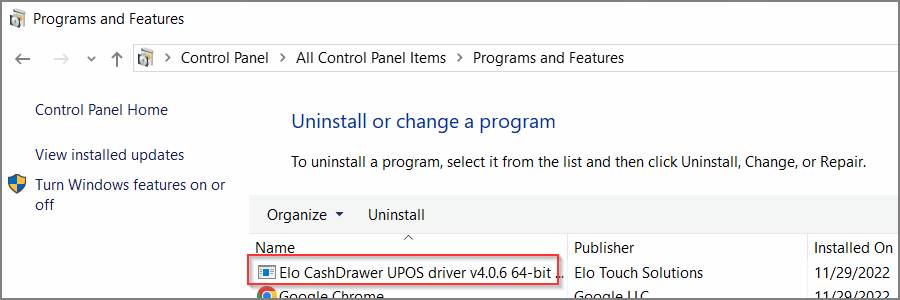

2. Verify if the ‘Elo CashDrawer UPOS driver…’ is installed.

• If not installed, find a copy of the installer located at C:\EloTouchSolutions\Peripherals\CashDrawer\ or download it from the Files section in this article
• Filename is EloUPOSSetup_4.0.6.zip
• Select 64-bit and install with setup.exe
• Choose the OPOS option during installation

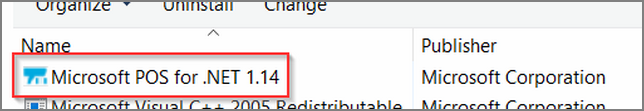

3. Verify if the ‘Microsoft POS for .NET 1.14’ is installed.

• If not installed, find a copy of the installer located at C:\EloTouchSolutions\Peripherals\CashDrawer\ or download it from the Files section in this article
• Filename is POSforDotNet-1.14.msi

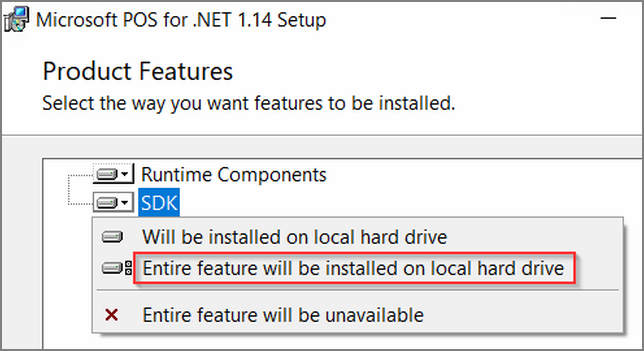

• Install the entire Runtime Components and SDK package on local hard drive

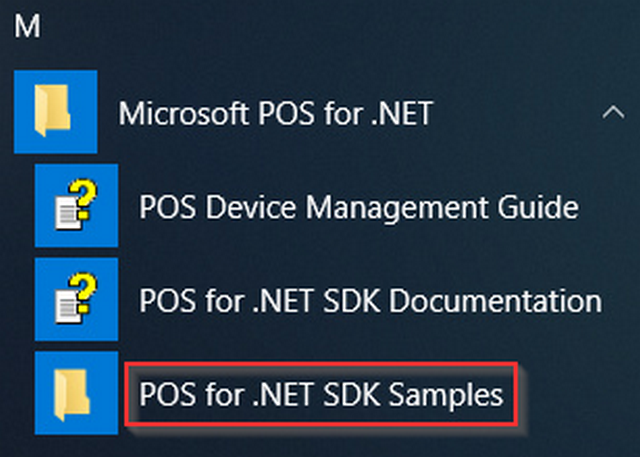

4. Open the Start Menu, navigate to the Microsoft POS for .NET 1.14.1 folder and then open POS for .NET SDK Samples

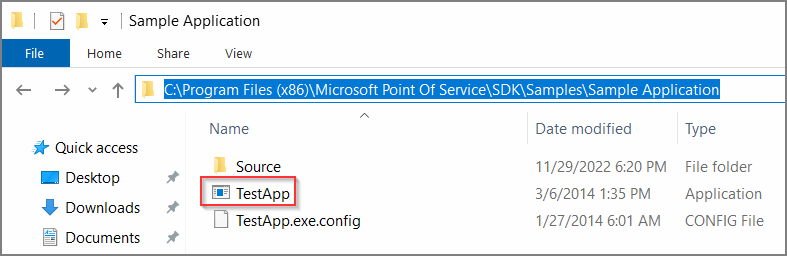

5. Open the Sample Application folder and then run the TestApp.exe utility.

Instructions for Microsoft POS Tester to Open Drawer

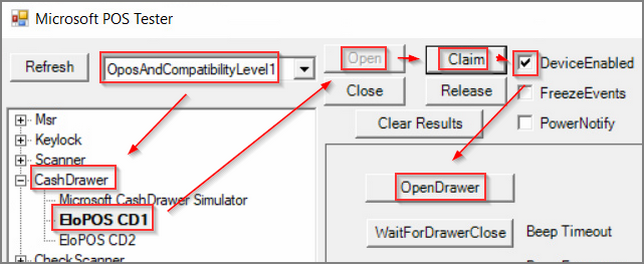

1. Select OposAndCompatibilityLevel1 from the drop-down menu
2. Expand on CashDrawer and then select EloPOS CD1
3. Click the buttons Open -- Claim -- checkmark DeviceEnabled -- OpenDrawer

Instructions for JPOS Driver Solution

1. Using the cash drawer cable, connect the RJ-12 end to the EloPOS system and the RJ-45 end to the cash drawer.

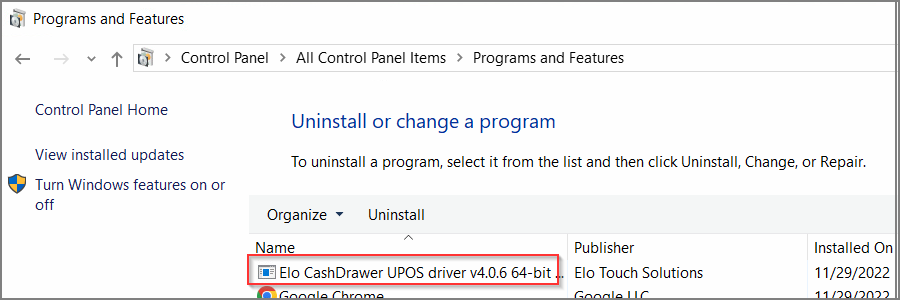

2. Verify if the ‘Elo CashDrawer UPOS driver…’ is installed and then uninstall it.

• Find a copy of the installer located at C:\EloTouchSolutions\Peripherals\CashDrawer\ or download it from the Files section in this article
• Filename is EloUPOSSetup_4.0.6.zip
• Select 64-bit and install with setup.exe
• Choose the JPOS option during installation

3. Download jdk-7u80-windows-x64.exe and perform a standard installation.

• Find a copy of the installer in the Files section of this article

4. Download POSTest-1.10.0-bin_x64-jdk1.7.zip and extract to C:\POSTest-1.10.0-bin_x64-jdk1.7

• Find a copy of the application in the Files section of this article

5. Open the POSTest-1.10.0-bin_x64-jdk1.7 folder and edit the JPOStest-jdk1.7.bat script.

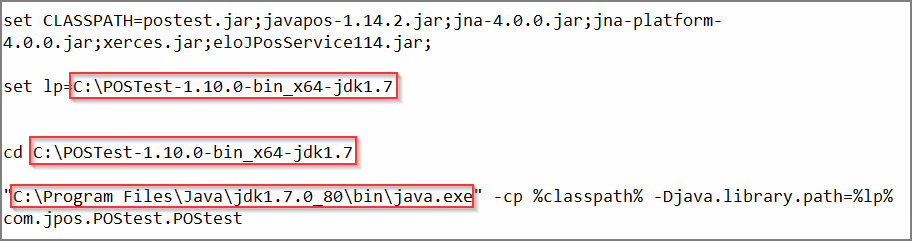

6. Verify that the JPOS JDK 1.7 POS tester and JDK folder paths are valid. Update the paths as necessary and then save the file.

7. Run the JPOStest-jdk1.7.bat script to launch the JPOS JDK 1.7 POS tester.

Instructions for JPOS JDK 1.7 POS Tester

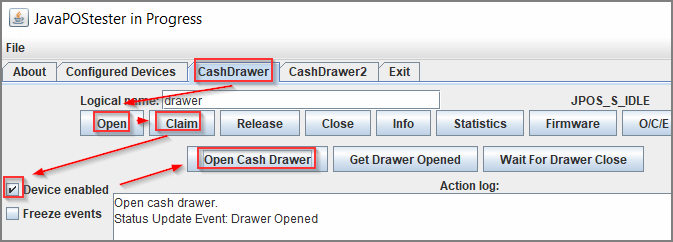

1. Go to the CashDrawer tab
2. Click the buttons Open -- Claim -- checkmark Device Enabled -- Open Cash Drawer.

POSforDotNet-1.14
10 MB Download
POSTest-1.10.0-bin_x64-jdk1.7
3 MB Download
EloUPOSSetup_4.0.6
9 MB Download
