This article provides information about E802400 Wall Mount Kit for I-Series 2.0 Android
See below for information on E802400 Wall Mount Kit for I-Series 2.0 with Android.
Kit Contents:
- 1x bracket A
- 1x bracket B
- 2x security brackets
- 2x alignment pins
- 2x m3x8 flathead screws
- 4x m3x4 flathead screws
- 2x m3x8 Philips screw with washer

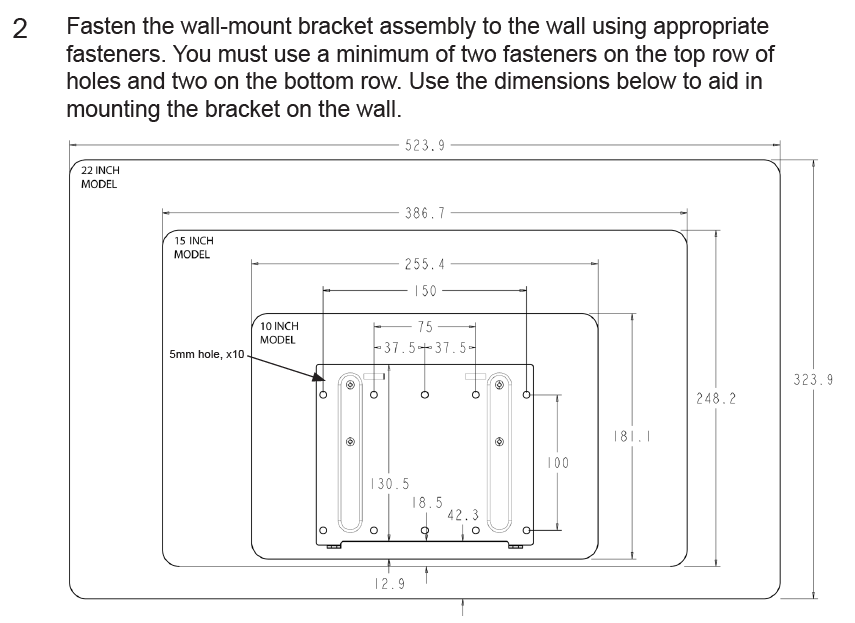

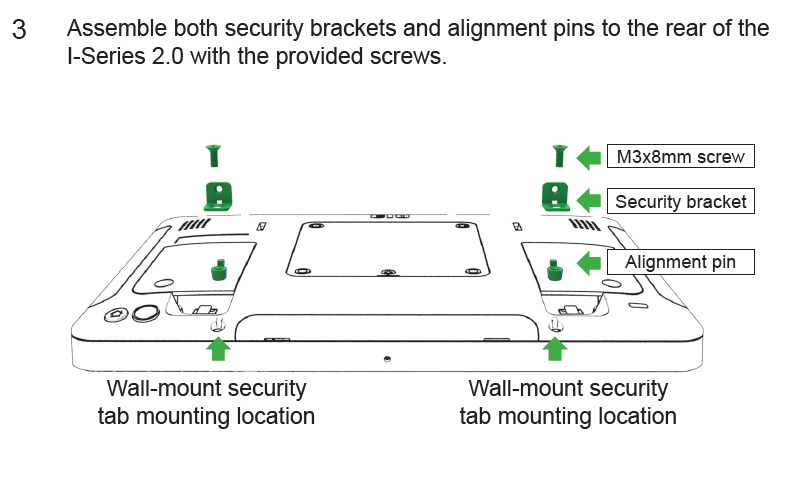

Assembly:

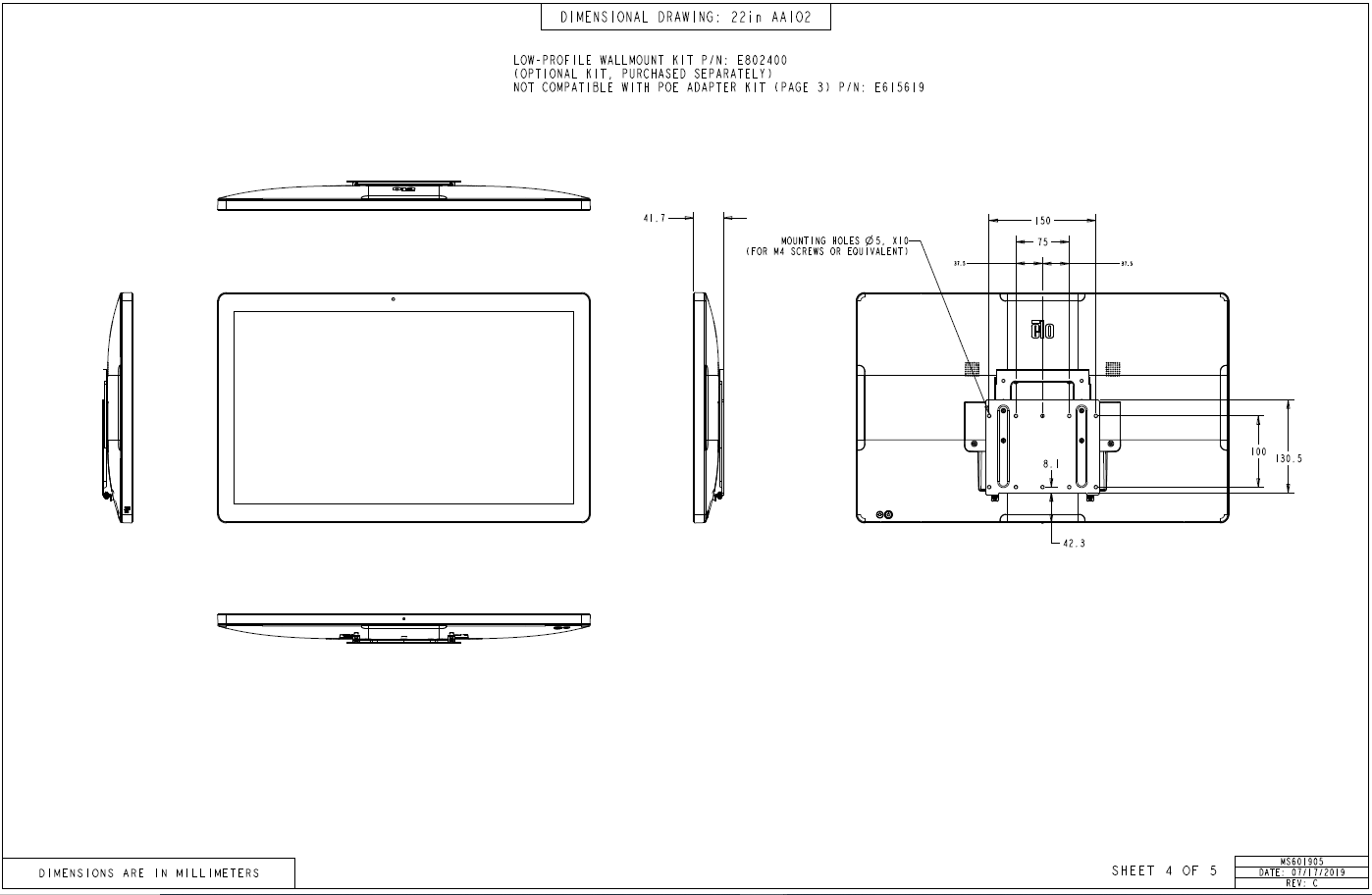

Dimensional Drawing:

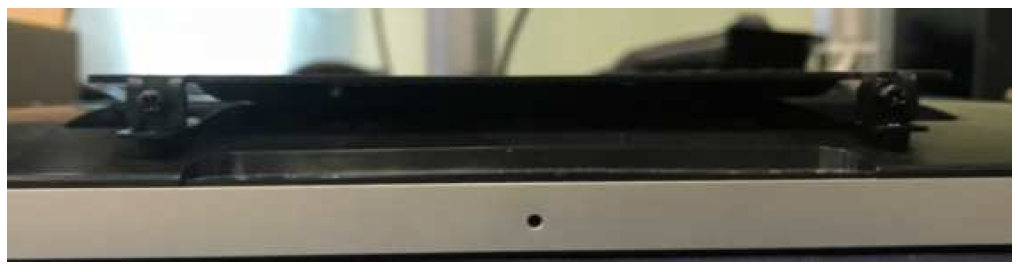

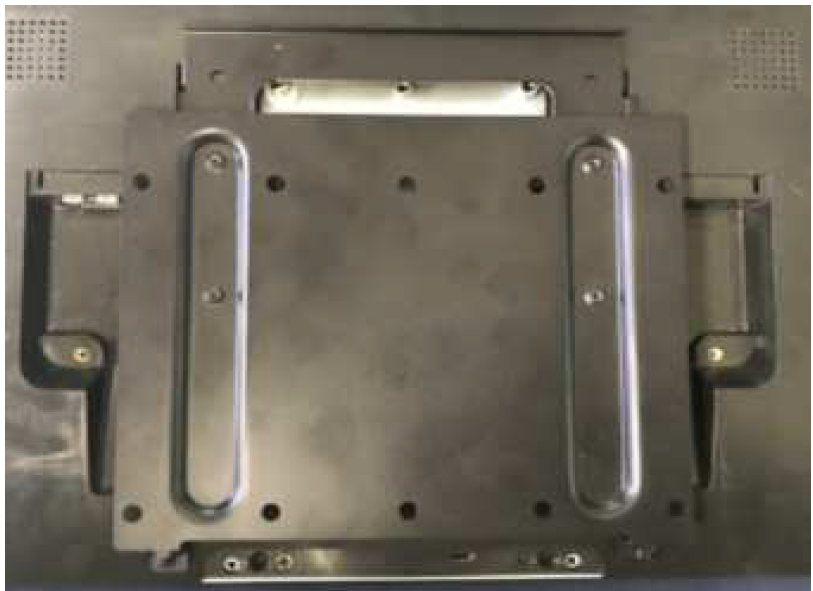

Photos:
Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
