Where can I find information on installing the 5553L wall mount kit E727774?

This article provides information on installing the 5553L wall mount kit

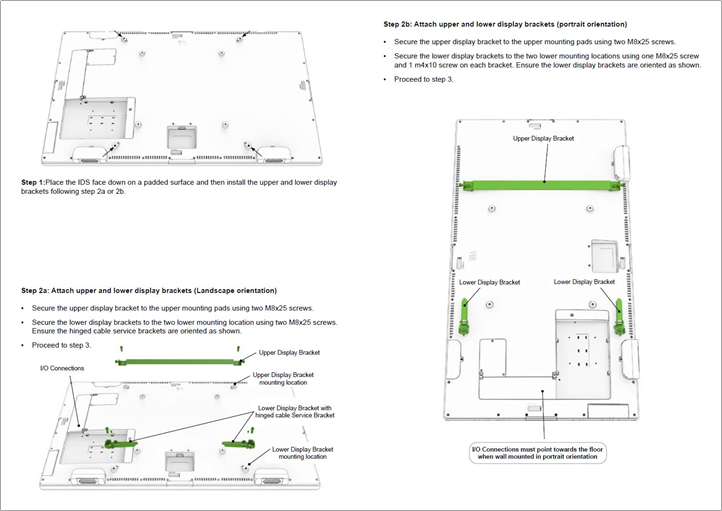

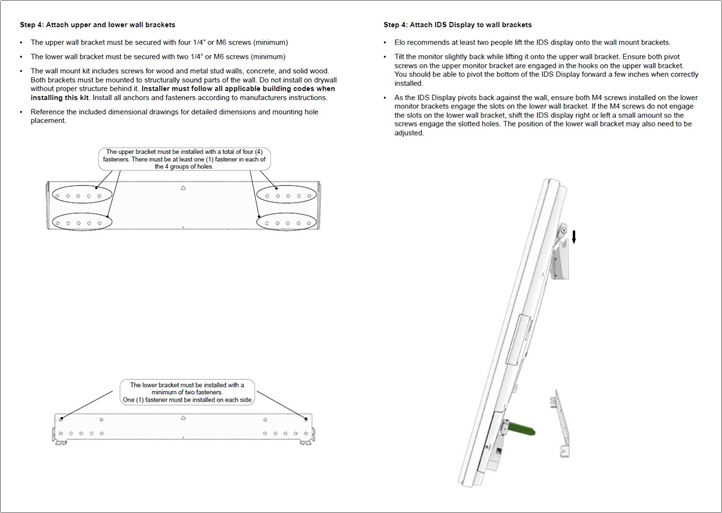

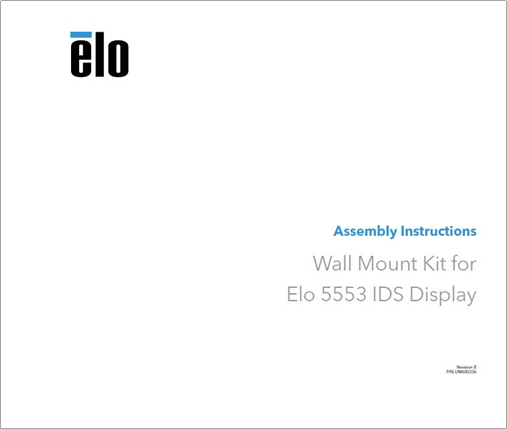

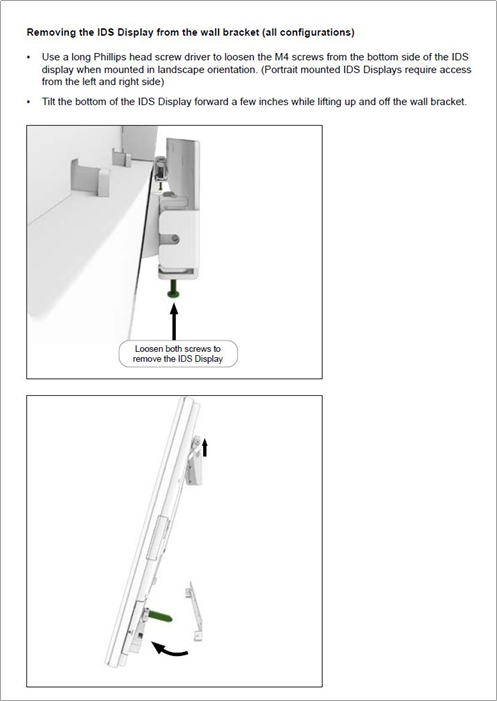

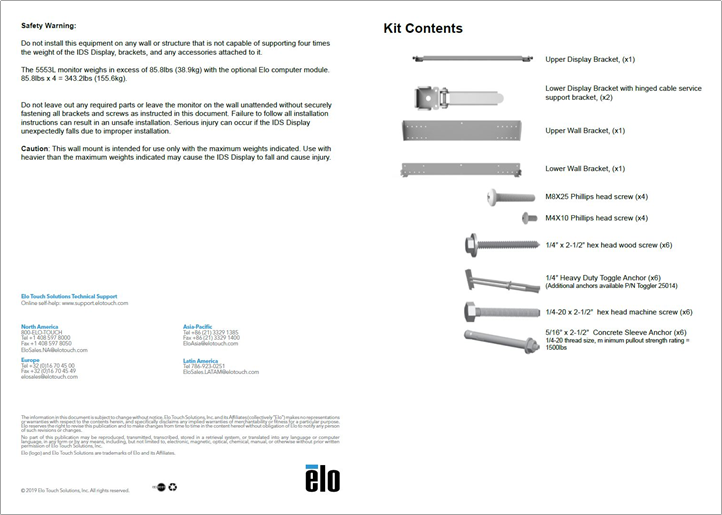

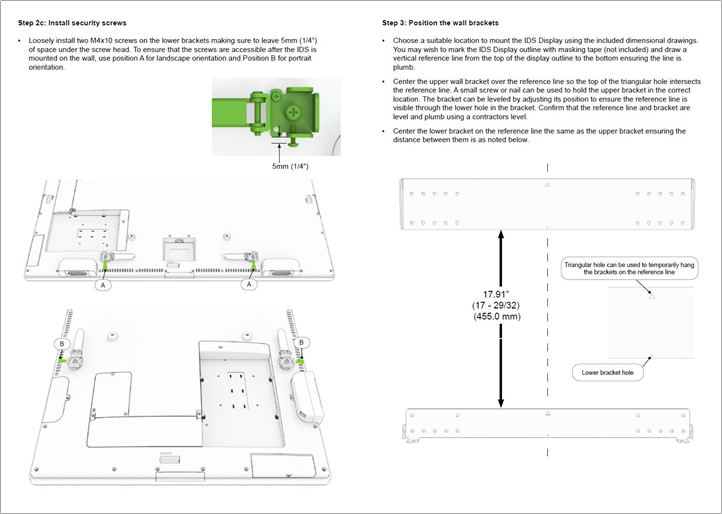

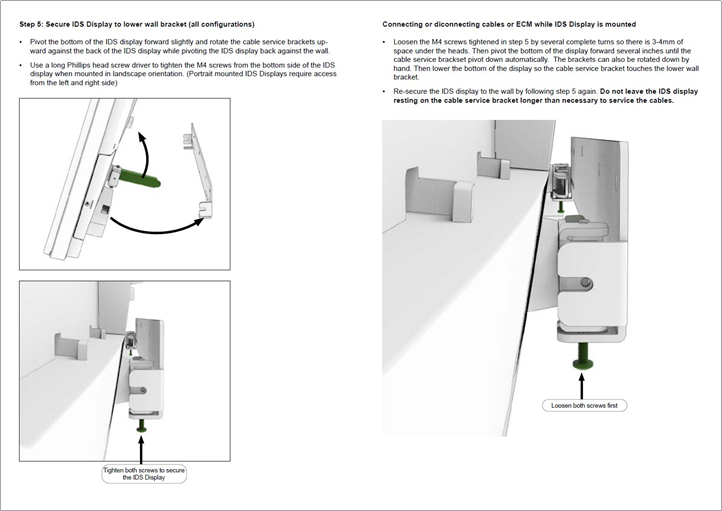

See below for 5553L Wall Mount Installation Guide. The part number for the wall mount kit is: E727774




You can download a .pdf copy of the 5553L Wall Mount Kit Installation Guide at the following url: https://docs.elotouch.com/touchscreen-signage/large-format-touchscreen-signage/UM600336.pdf

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
