This article provides photos of the E143088 Wall Mount Kit

Below are some various photos of the E143088 Wall mount for E-/I-/X-Series Intel/Windows based all-in-one touch computers and 02/03 touch monitors.

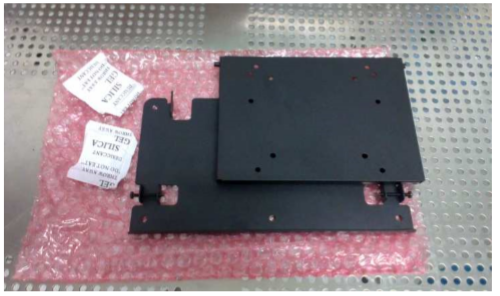

Monitor VESA plate and wall mount plate that comes in the kit

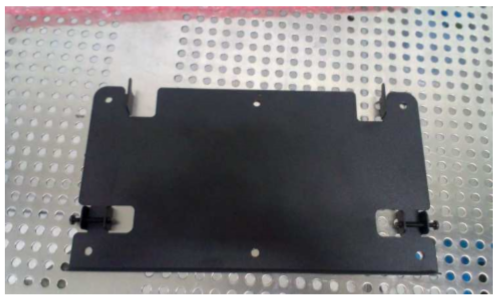

Wall mount plate

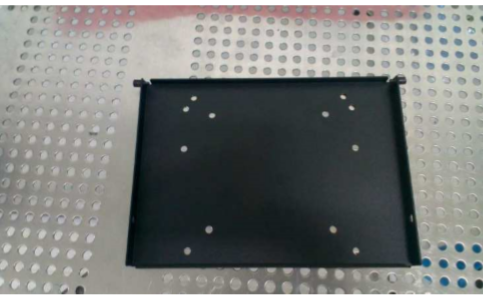

Monitor VESA plate

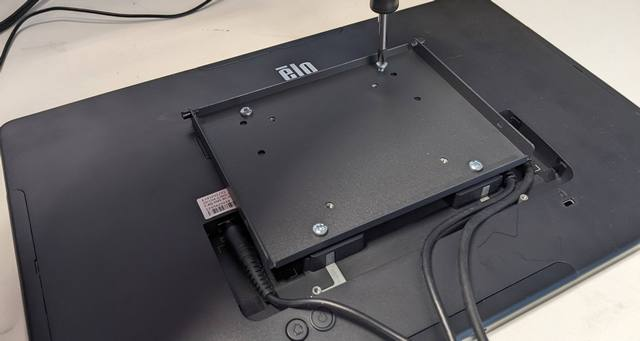

Mounting monitor plate to back of 15" I-Series 4 using the provided VESA Philips screws

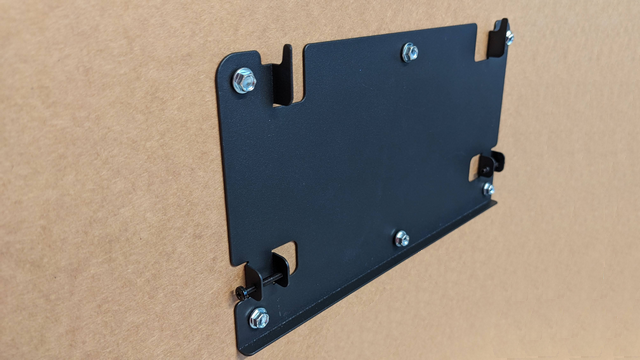

Wall plate mounts to wall in the below orientation (mounting screws not included)

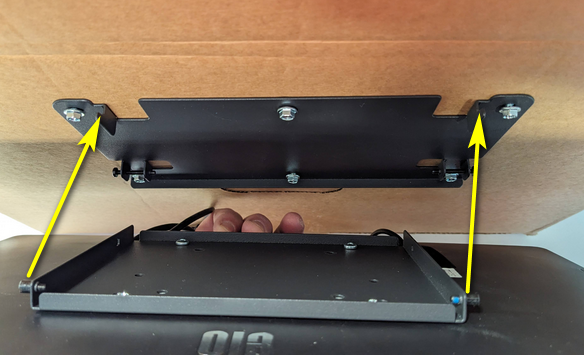

Hang the unit by placing the two pins from the VESA bracket onto the two hooks on the wall mount plate.

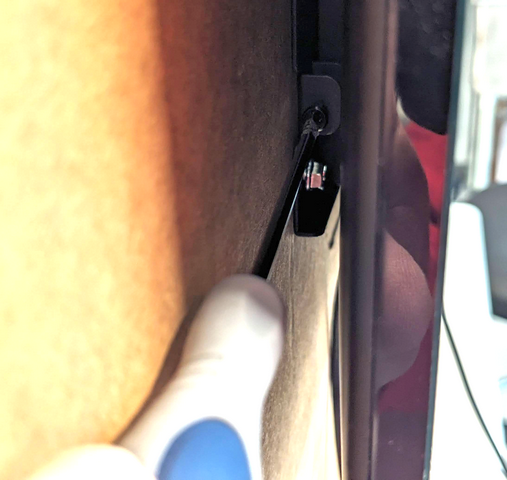

Secure the unit by tightening the two philips screws (one on each side) of the wall bracket
