VESA Mounting Specifications & Bracket Guidelines for 22-Inch I-Series for Android
Audience: Public / Elo Customers, Field Technicians & Integrators
Article Type: Hardware Specifications & Mounting Safety Guide
This article details the structural VESA mounting specifications and critical mechanical safety precautions for installing the Elo 22-inch I-Series for Android all-in-one touchcomputer on wall mounts, desk stands, or kiosk arms.
⚠️ CRITICAL MOUNTING SAFETY WARNING:
DO NOT USE THE INNER 75mm × 75mm PATTERN TO MOUNT THE 22-INCH UNIT.
The inner 75mm threaded inserts are engineered solely for securing the optional Power-over-Ethernet (PoE) Adapter Module. Attempting to mount or suspend the full weight of the 22-inch display using the 75mm pattern will shear or tear the mounting studs from the rear housing, resulting in catastrophic physical damage and voiding the manufacturer warranty.
Rear Pattern Identification
| VESA Hole Pattern | Intended Mechanical Function | Load Bearing Capacity |
|---|---|---|
| 100 mm × 100 mm (Outer) | System Wall / Stand Mounting: Primary structural interface for all VESA brackets, articulated arms, and stands. | Full Device Weight (Approved) |
| 75 mm × 75 mm (Inner) | Accessory Module Mounting Only: Securing optional Elo PoE Adapter module. | Do NOT use for system mounting |

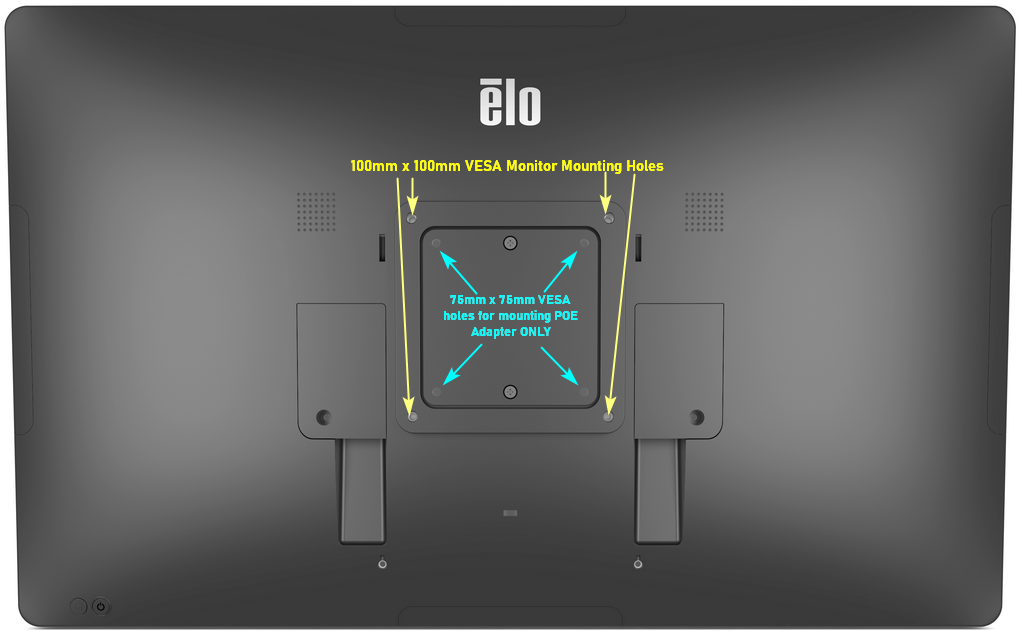

Rear Chassis Hole Pattern Reference
