This article provides more information on P/N: E757859, for 2201L and 1509L, as an optional MSR that can be added and mounted

The 2201L and the 1509L Touchmonitors have an optional Magnetic Stripe Reader (MSR) accessory that can be purchased separately and added on. See below for details.

Part Number and Description
P/N: E757859, Description: 2201L and 1509L Magnetic Stripe Reader, Gray
This MSR Kit is integrated with a Magtek USB HID IntelliHead Swipe Reader, 21030006 Rev R or later

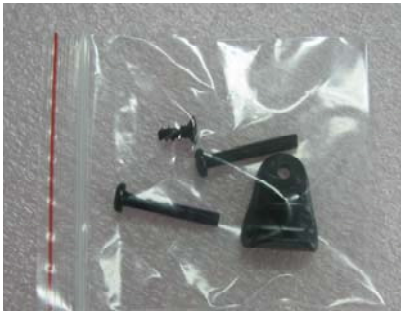

Kit Contents:

• 1-MSR with attached USB cable
• 1-Cable Clip
• 1-M3x8 screw
• 2-M3x20 screw
• 1-Quick Install Guide (QIG)

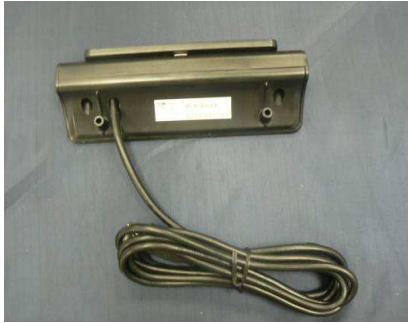

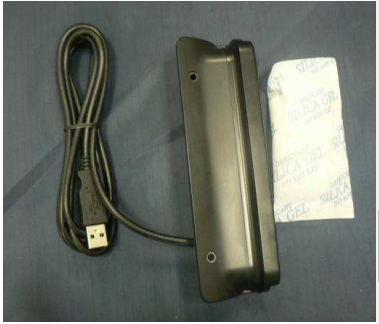

Photos:

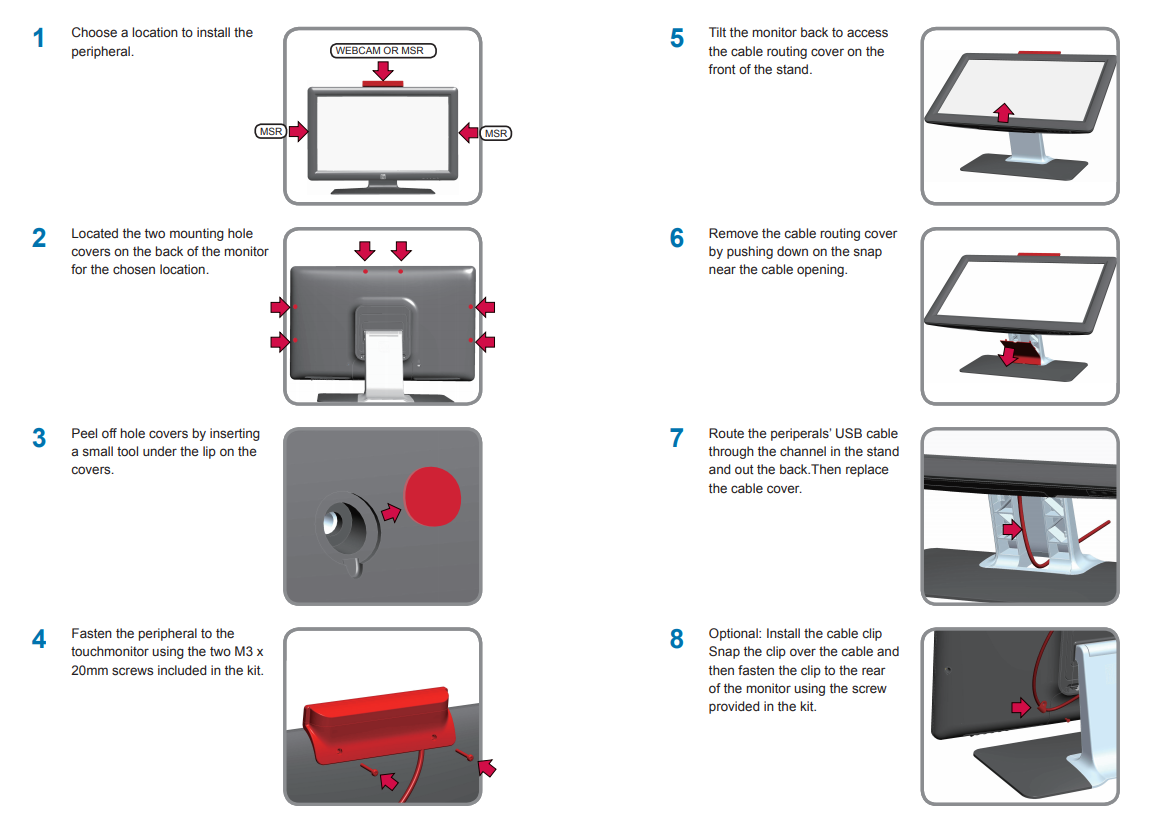

Quick Install Guide
