This article provides steps for mounting the MSR on to the Elo 1523L Desk Top Monitor.
Please refer to the steps below for installing the MSR on an Elo 1523L or 1723L monitor. Additionally, the Quick Install Guide (QIG), included in the box with Part #E628912: ELO-MSR-1523L 1723L-BL-R, is provided for further reference.
Steps
-
Place the monitor face down on a clean, soft, and smooth surface to protect the screen.
-
Remove the peripheral cover from the monitor.
-
Connect the 5-pin connector from the MSR (Magnetic Stripe Reader) to the corresponding 5-pin mating connector on the monitor.
-
Align the two Philips mounting screws with the designated holes and secure them using a screwdriver.
-
Apply the mylar screw covers over the screws to complete the assembly.
-
Finally, connect the USB cable from the monitor to an available USB port on the computer.
At this point, the MSR should be fully operational.

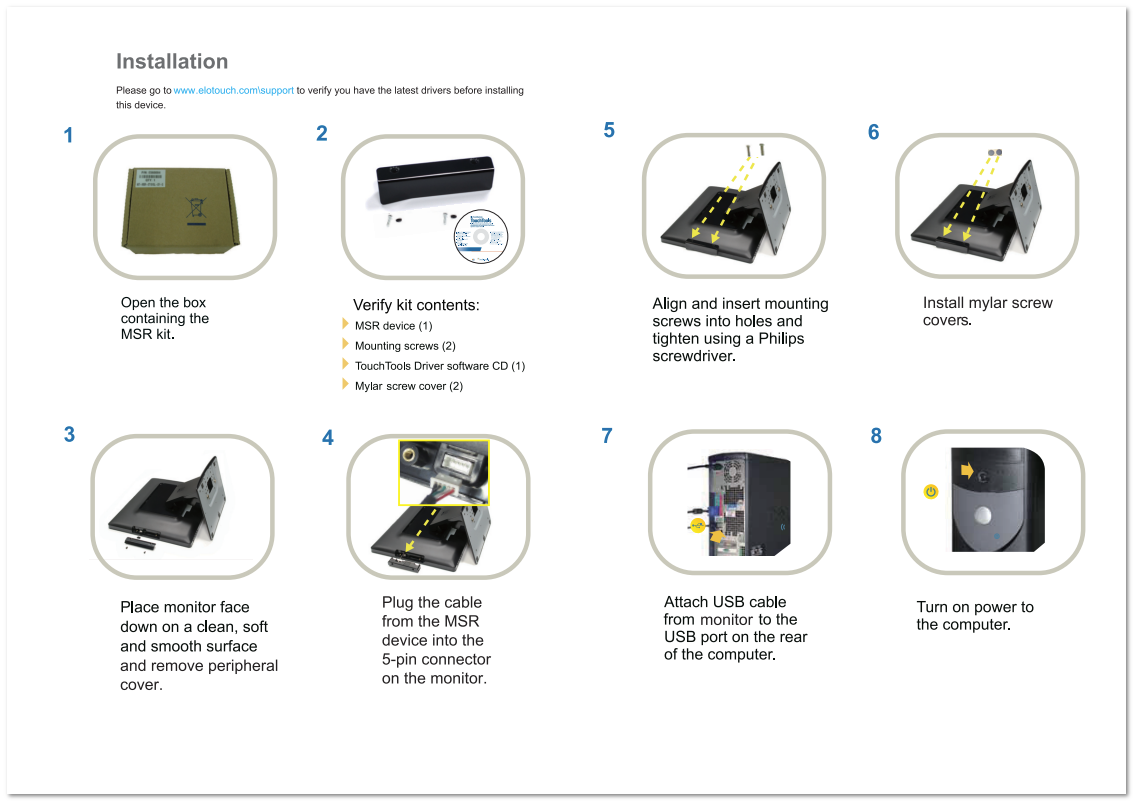

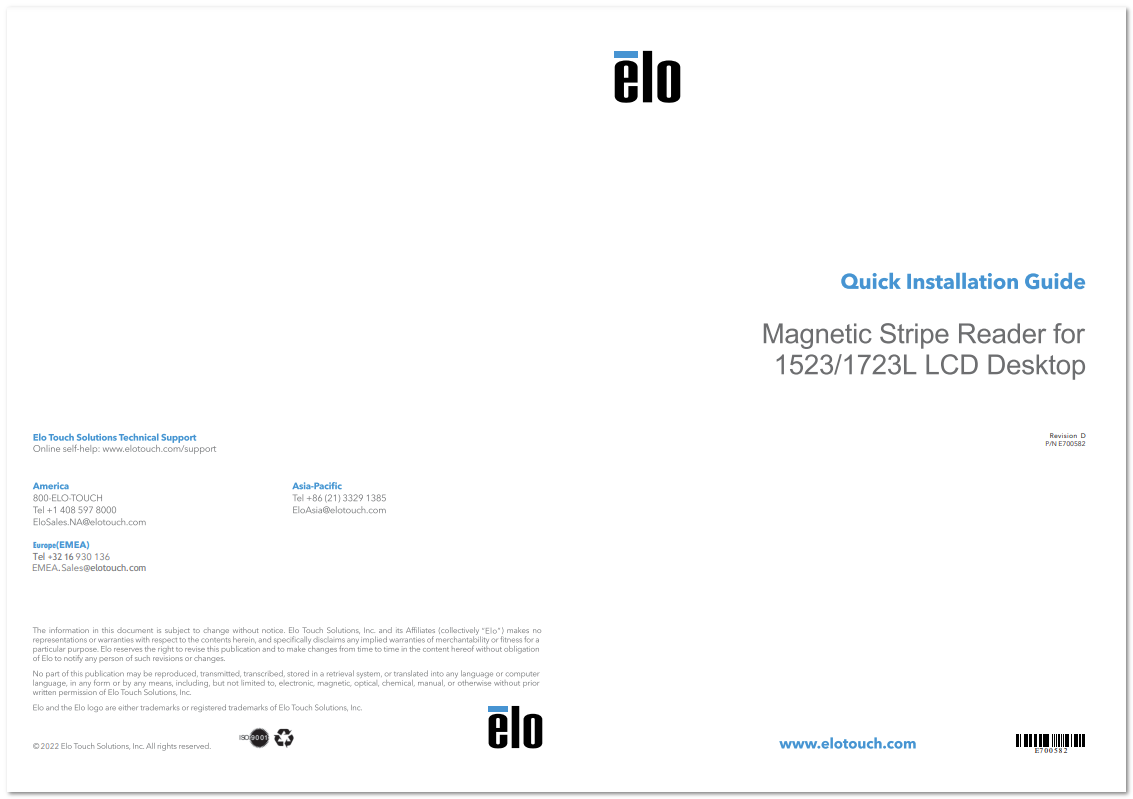

Quick Install Guide
