This article explains how to set up a virtual device in Android Studio that emulates Elo I-Series 4.0

Follow these steps to create and configure a custom Android Virtual Device (AVD) that emulates Elo I-Series screen sizes:

1. Open AVD Manager in Android Studio.

2. Click Create Virtual Device.

3. In the Category menu, choose Tablet, then select New Hardware Profile.

4. Under Device Type, select Phone/Tablet and configure the screen size and resolution:

   • 10" screen: 1920 x 1200

   • 15" screen: 1920 x 1080

   • 22" screen: 1920 x 1080

5. Click Finish to save the hardware profile.

6. In the Select Hardware step, click Next, choose Android 10 as the system image, then click Next again.

7. Review the configuration settings, then click Finish.

8. For 15" and 22" custom devices:

   • In AVD Manager, click the arrow under the Actions column next to your device.

   • Select Show on Disk.

9. In the opened folder, edit the config.ini file. Locate and set the following line:



   hw.lcd.density = 240

   Save the file.

10. Return to AVD Manager and click Refresh.

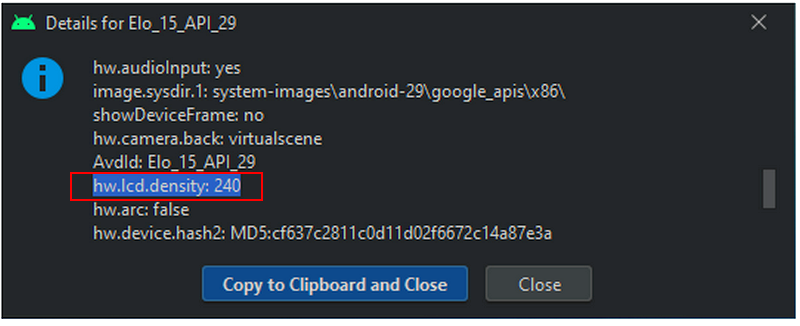

    • For your custom device, click the arrow under Actions and select View Details.

    • Confirm that hw.lcd.density = 240 is listed

11. Launch the emulator and test your app on the virtual device.
