This article provides steps to configure the Zebra SE2707 2D scanner for Windows devices

1. Create a configuration barcode on any Windows computer by downloading and installing the Zebra 123Scan utility, you DO NOT need to have the scanners connected to create the config barcode.

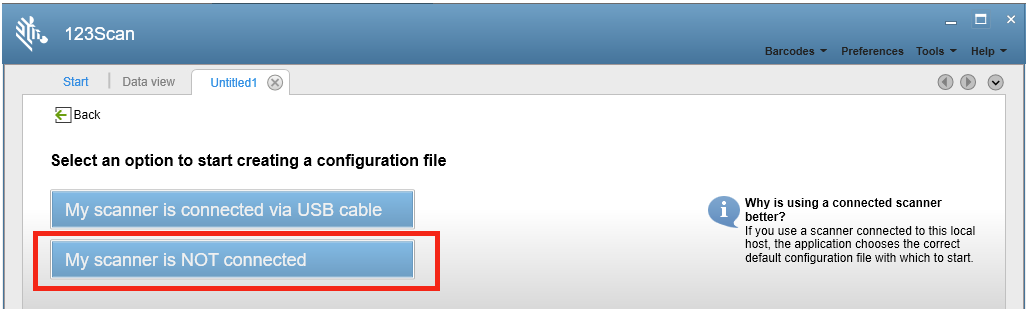

2. Open 123 scan and select ‘My scanner is NOT connected’



3. Search for the SE2707 plugin and it will load the scanners factory config.



4. You can use the Searchbox in bottom right to find and adjust parameters quickly. Either start typing a desired parameter or click in the search box and hit the space bar to pull up a list of parametes to choose from.

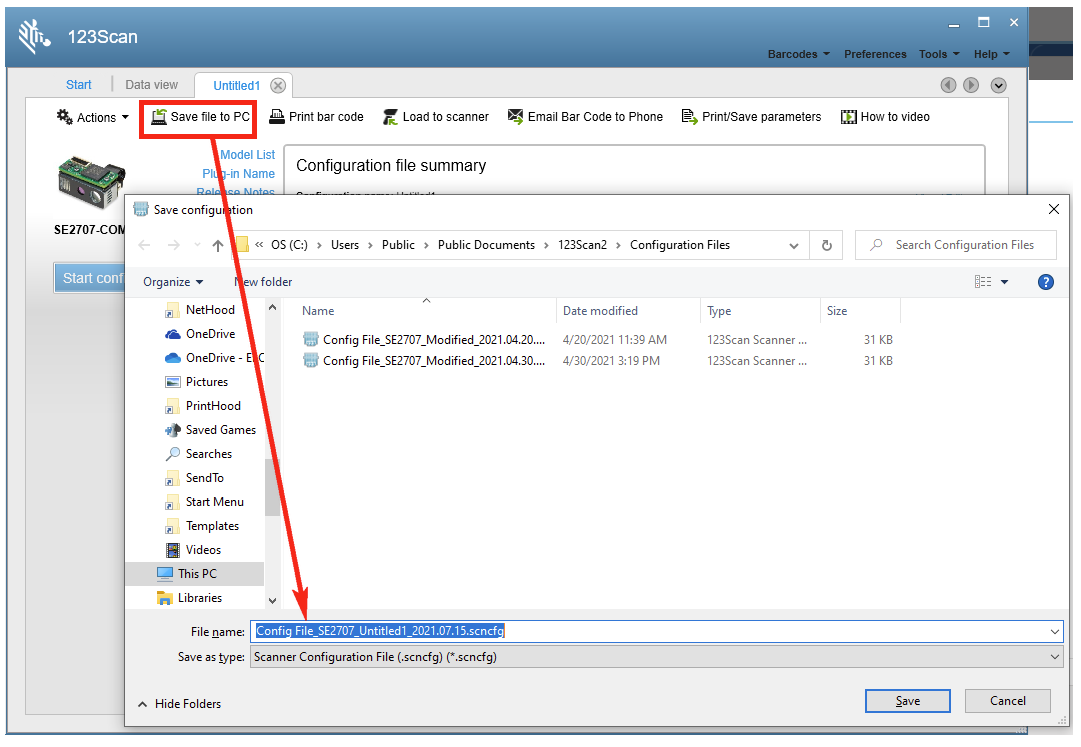

5. Once you have adjusted the required parameters, most folks then rename and store the config locally. See attached example of the barcode in this knowledge article.


6. To deploy, you can click email/print barcode this gives you a config barcode which can then be distributed/used on mass with other scanners.

7. Scan the configuration barcode with the Zebra 2D sanner and the configuration on the device will adjust parameters accordingly.
