Where can I find drawings and photos of Wall Mount Kit, P/N: E727774 for 5553L IDS Monitor?

This article provides drawings and photos of Wall Mount Kit, P/N: E727774 for 5553L IDS Monitor

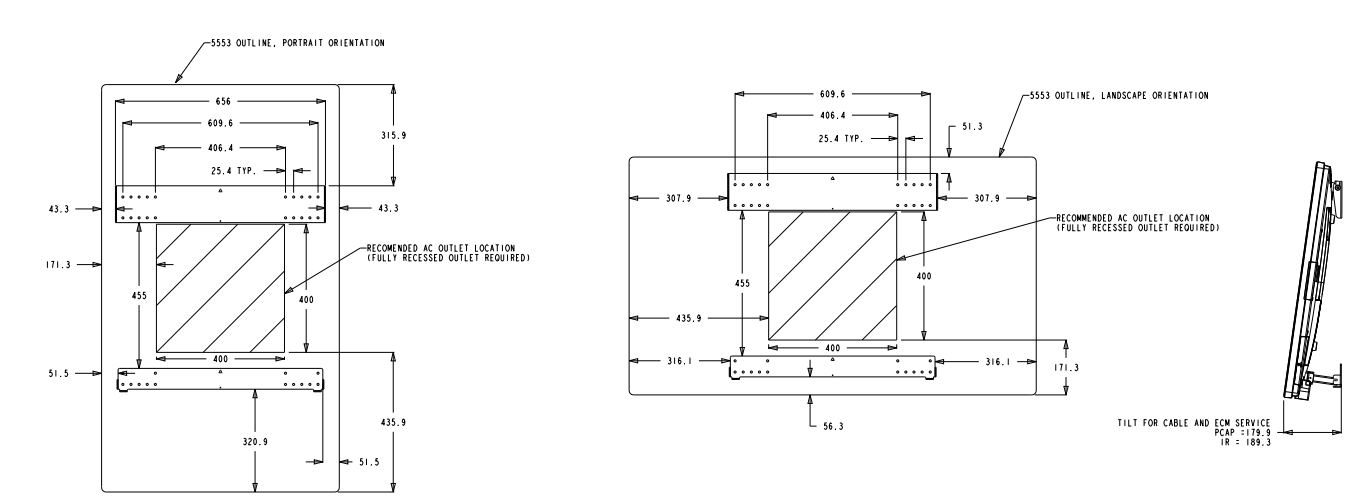

Below is the dimensional drawing and photos of the Wall Mount Kit, P/N: E727774 for the 5553L IDS monitor.

Drawing: (also in the attached .pdf)


Photos:

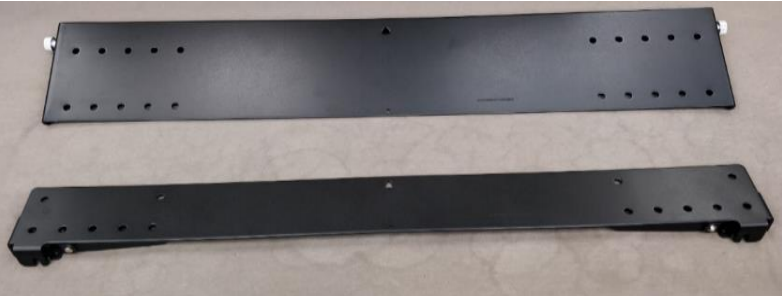

Front

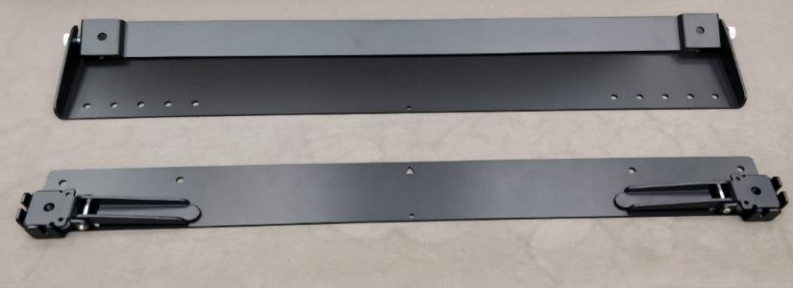

Back

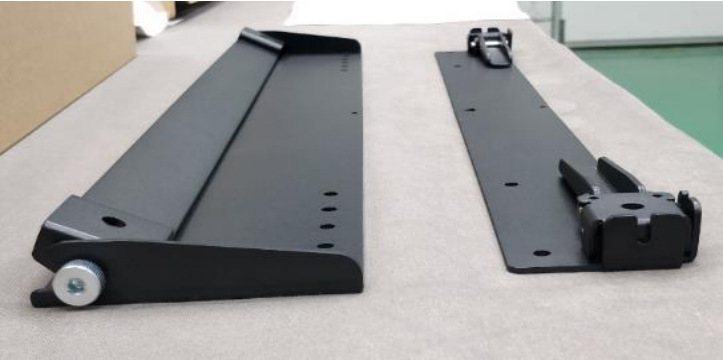

Left Side

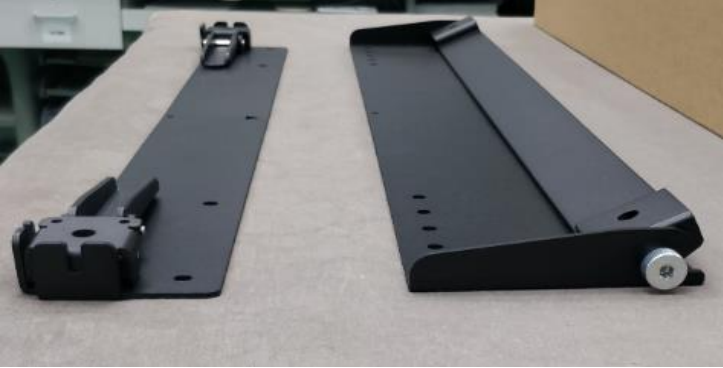

Right Side

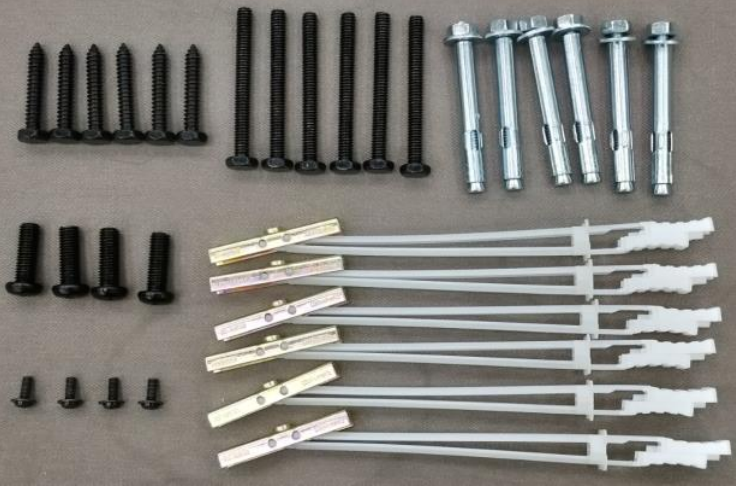

Bolts and Accessories
