This article provides specifications for P/N: E673037, Elo Edge Connect RFID Reader

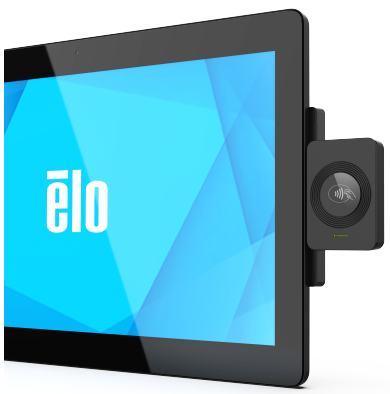

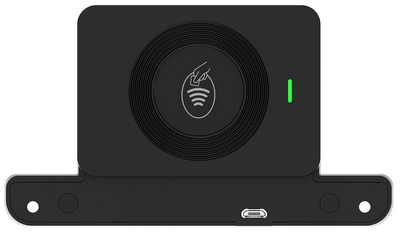

Below are specifications for P/N: E673037, Elo Edge Connect 5127CK RFID Reader.
| Model | E673037 | |
| Color | Black | |
| Compatibility | I-Series for Android (2.0, 3.0, 4.0) I-Series for Windows (2.0) EloPOS Touchscreen Monitors - 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L, 1903LM, 2203LM, 2403LM, 2703LM Touchscreen Signage - 3202L, 4202L, 4602L, 5502L, 3203L, 4303L, 5503L, 5053L, 5553L, 6553L |
|
| Product Dimensions | 119.6mm x 68.5mm x 29.1mm (4.71” x 2.70” x 1.15”) |
|
| Power Supply | 5VDC ± 5% | |
| RF Interface | ISO/IEC14443 | Type A&B up to 848kbps, MIFARE Classic, MIFARE, DESFire, HID Seos | |
| SO/IEC15693 | ||
| HID iCLASS | ISO/IEC15693 mode | ||
| FeliCa | CSN only | ||
| HID Prox | ||
| Indala Prox | ||
| BLE | For HID Mobile Access applications | ||
| Host Interface | USB2.0 | |
| Interface Modes | CCID, Keyboard Wedge | |
| Beeper Support | Yes | |
| Status Indicators | Yes | |
| Frequency Range | 124KHz, 13.56MHz, 2.44GHz | |
| Card & Protocols | CCID, Keyboard Wedge | |
| High Frequency | iCLASS, iCLASS SE/SR, iCLASS Seos MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2, T=CL, ISO 14443A, ISO14443B CSN, FeliCa, SmartMX with up to 848 kbps transmission rate (depending on card1), ISO 15693 with up to 26 kbps transmission rate (depending on card), Student ID in Apple Wallet |
The following credentials can be handled autonomously: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Security Lvl 1) , MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2 (MAC / DES/3DES / 3K3DES / AES), CEPAS (CAN), FeliCa (Idm), PIV, ISO14443B (CSN), Student ID in Apple Wallet |
| Cards & Protocols Low Frequency |
HID Prox, Indala Prox, EM Prox (Standard Mode Only), AWID Prox | |
| Supported Operating Systems | Windows 7/10, Ubuntu 18.04, Mac OS X, Android 7.x or latest | |
| Weight | Unpackaged: 0.075 kg (0.165 lbs) Packaged: 0.185 kg (0.408 lbs) |
|
| Shipping Dimensions |
175mm x 114mm x 69mm (6.89” x 4.49” x 2.72”) |
|
| Temperature | Operating: 10° C to 40° C (50° F to 104° F) Storage: 0° C to 50° C (32° F to 122° F) |
|
| Humidity (noncondensing) | Operating: 20% - 80% Storage: 10% - 90% |
|
| Warranty | 2 year | |
| Kit Contents | RFID KIT 2 Mounting screws 2 Mylar screw covers QIG |
|
| Part Number | E673037 | |
| Region | Worldwide | |
| Description | KIT, RFID, LF/HF, USB, EDGE CONNECT |
