This article provides information on the M50/M50C battery
Note: Before using the device for the first time fully charge the battery.
Battery Safety Precautions
The battery stores a large amount of energy in small amount of space. Replace the battery with same type only. Improper replacement of battery may cause risk of burns, fire, and explosions. Do not open, crush, bend, puncture, shred, heat above 60˚ C / 140˚ F or incinerate. Risk of fire and burns if improperly handled. Do not short circuit, immerse the battery to liquid, or attempt to insert any foreign object to the battery. Avoid storing under direct sunlight. If there is a serious swelling of the battery, do not continue using. Dispose the battery according to local regulations.
Battery Information / Specification
• Nominal Voltage: 3.8Vdc
• Limited Charging Voltage: 4.35Vdc
• Maximum Charging Current: 4A
• Minimum Capacity: 4000mAh 15.2Wh
Battery Installation

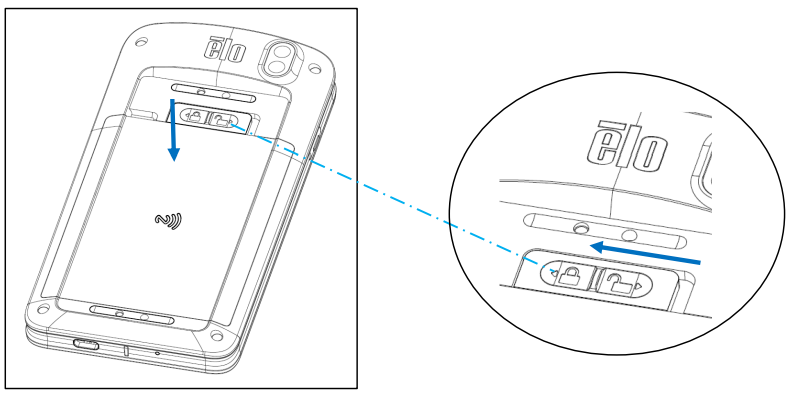

• While pressing down slide the battery lock to the left (into the locked position) to secure the battery.

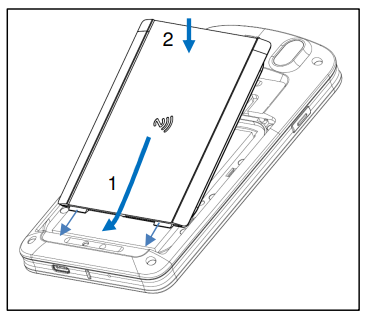

Note: Press the upper left corner of battery cover tightly then latch the battery lock. In order to protect the M50/M50C and maintain IP65 Ingres protection, check the battery after drops, or large impacts. Be sure the battery is secured properly, and no gaps are visible between the back cover and battery cover.

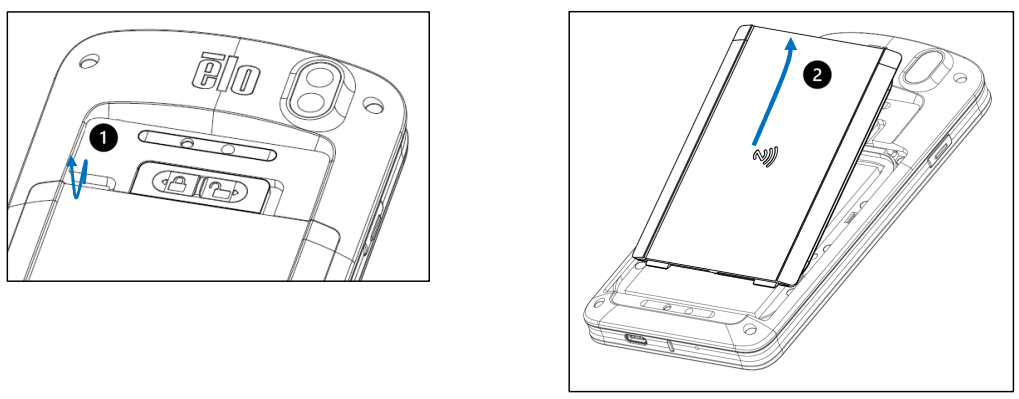

Battery Removal
• Remove the battery from the device.
• Slide the latch to the right to unlock the battery.
• Lift-up the battery, then slide up away from the compartment.
