This article provides power and charging system information for the Elo Mobile M50/M50C

Charging System & Power

• Charging the Handheld computer through USB type C Port
  • The Elo Mobile Computer is powered by a rechargeable battery (Li-ion polymer Battery). A charger (USB C type wall adapter) is included with the computer.
  • With Qualcomm Quick Charger 4.0 a charge to 90% will take about 60 – 90 minutes.

Charging Safety Features:

• Over charge/discharge protection
• Over current/short-circuit protection
• Temperature monitoring/Over temperature protection.
  • The handheld computer charger is design to stop charging when battery reaches the temperature of 43˚C.

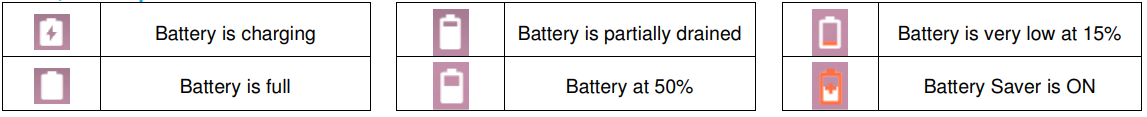

Battery Status / Descriptions



Power Button

Note: If any reason the device does not display video while it is charging. Press the power button once and if battery icon appears into the display screen it means it is in the OFF state.

• To turn ON the power of Elo Mobile Computer press and hold power button for 2 seconds.
• To Shut down or Restart, press and hold the power button for more than 5 seconds and follow the on-screen display menu.
• To force the system to Shutdown, press and hold the power button for 12 seconds.
• To bring the system out of sleep/standby mode, press the power button once or touch the screen.

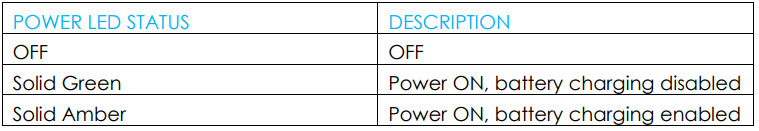

Power LED Status
