Where can I find instructions for installing the Micro SD and Nano SIM cards on the Elo Mobile Computer M50/M50C?

This article explains how to install a Micro SD & Nano Sim Card on the Elo Mobile Computer M50/M50C

  1. First save files and shutdown the computer
  2. Remove the battery. Refer on battery Uninstallation section of this user manual.

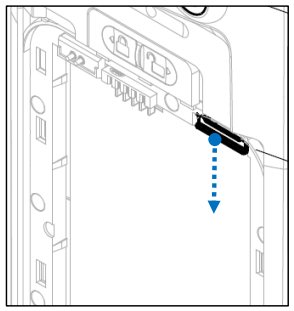

  3. Pull and slide down the Micro SD + Nano Sim carrier located on the upper right side of the battery compartment.
  4. Place the Micro SD and/or the Nano Sim card into the carrier with contact side face down.

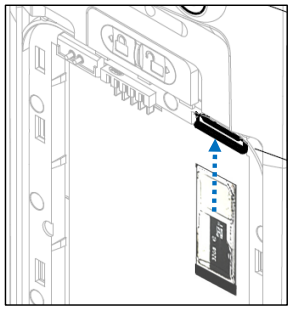

  5. Insert the carrier back into the Micro SD card compartmentimage.pngimage.png
  6. Reinstall the battery. Refer to battery installation section of the user manual
