This article provides the EloPOS Pack Connector Panel & Interfaces with descriptions

This information is also located in the EloPOS Pack User Manual.

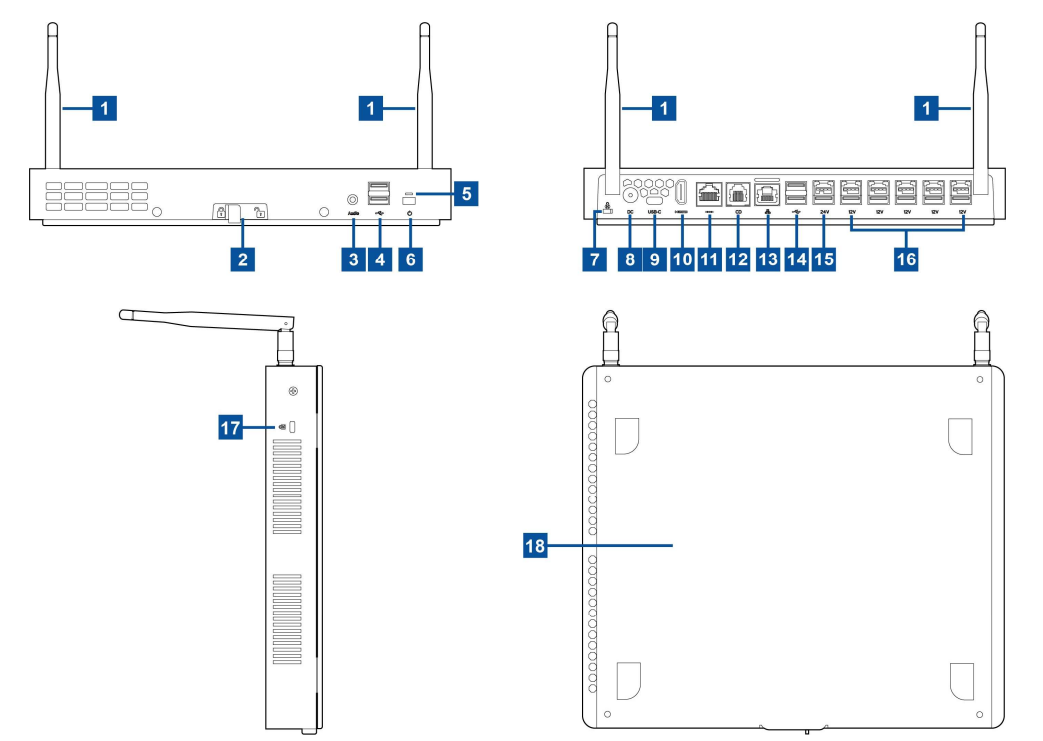

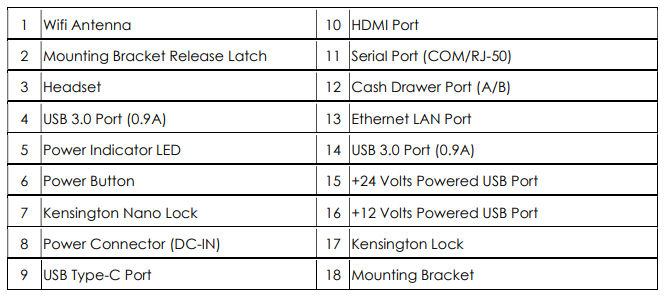

1. Wifi Antenna
Attach the supplied antennae to the EloPOS Pack when Wifi is needed. The antenna is compatible with 2.4G and 5GHz bands.

2. Mounting Bracket Release Latch

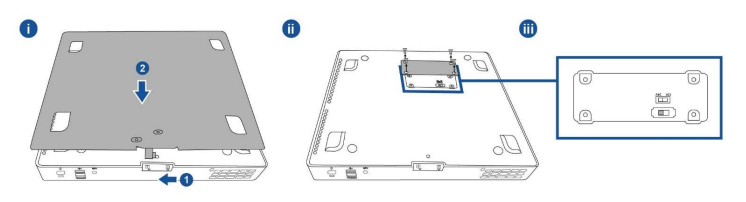

Sliding the latch to the right will release the mounting bracket from the EloPOS Pack.

3. Headset
The audio port is designed for headset and microphone connectivity.

4. USB 3.0 Port (0.9A)
Two standard Super Speed USB 3.0 ports are available on the front panel of the EloPOS Pack.

5. Power Indicator LED
The power indicator LED shows the state of the EloPOS Pack. See Section 3 for more details.

6. Power Button
Press the power button to turn on/off the EloPOS Pack.

7. Kensington Nano Lock
Kensington Nano Lock is an ultra-slim sized anti-theft mechanism to secure the EloPOS Pack to the desired mounting location. The Kensington cable lock is not included.

8. Power Connector (DC-IN)
To power up the EloPOS Pack, plug the DC connector of the AC/DC power adaptor kit into the power connection on the device.

9. USB Type-C Port
The USB Type-C port allows connection to other type-C compatible devices (Up to 27W).

10. HDMI Port
The HDMI port allows connection to a display equipped with HDMI input.

11. Serial Port (COM/RJ-50)
The serial port is a native RS-232 specification for RJ-50 interface connection.

12. Cash Drawer Port (A/B)

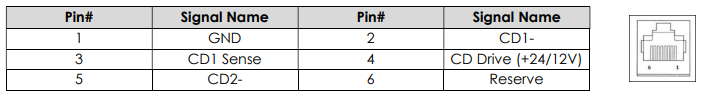

The main cash drawer port is a RJ-12 interface and provides switchable operation at +12 Volts and +24 Volts. The default setting is at +24 Volts and the settings are adjustable from the bottom of the EloPOS Pack.

13. Ethernet LAN Port
The Ethernet LAN Port provides up to 1 Gbps speed capability for networking.

14. USB 3.0 Port (0.9A)
Two standard Super Speed USB 3.0 ports are available on the rear side.

15. +24 Volts Powered USB Port
The +24 Volts Powered USB Port is included on all models. The maximum power rating of the +24 Volts Powered USB is 24 Volts at 0.5 Amps. If your EloPOS Pack is running at 100% load and all I/O ports, except 24V Powered USB port are connected, at the maximum power load of each port, DO NOT use the +24 Volts Powered USB port, use an external power adapter for the +24 Volts Powered peripheral.

Please ensure your overall peripheral power consumption does not exceed the following (assuming the EloPOS Pack is running at max power consumption):

16. +12 Volts Powered USB Port
The maximum power rating of the +12 Volts Powered USB is 12 Volts at 1 Amps.

17. Kensington Lock
Kensington Lock is a standard anti-theft mechanism to secure the EloPOS Pack to the desired mounting location. The Kensington cable lock is not included.

18. Mounting Bracket
The bracket has four holes to mount on a table by using four M4 or #8 mounting screws. The screw head height must be 3.0 mm (0.118”) or less. When mounting on a wall, it is recommended using four M3 or #8 screws. The screw length must be longer than 25 mm, and the screw head height must be 3.0 mm (0.118”) or less.
