Where can I find a pin-out for the LVDS connector on the Elo 10-inch Display Module?

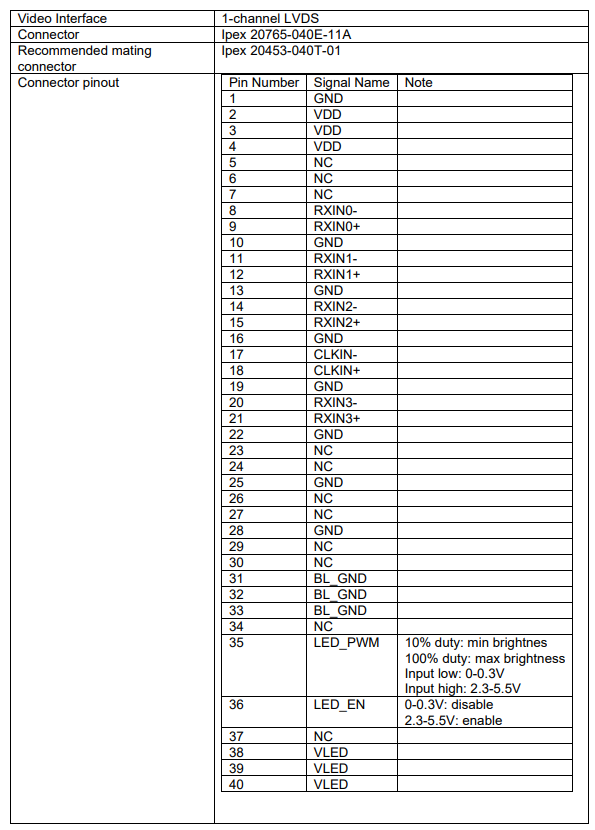

This article shows the pin-out on the Elo 10.1-Inch Display Module LVDS connector, P/N:E270763
