Where can I find specifications for LVDS connector on Touchscreen Display Modules

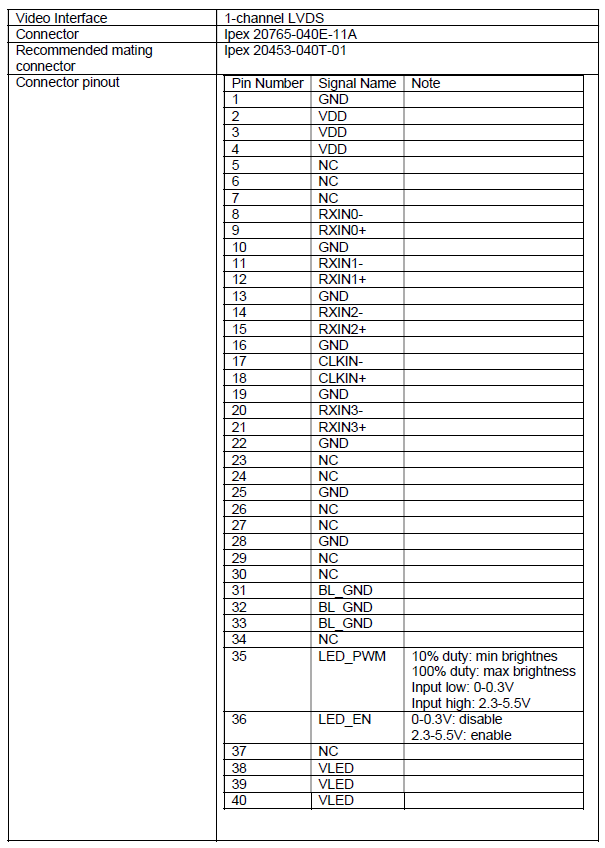

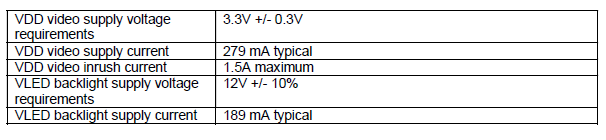

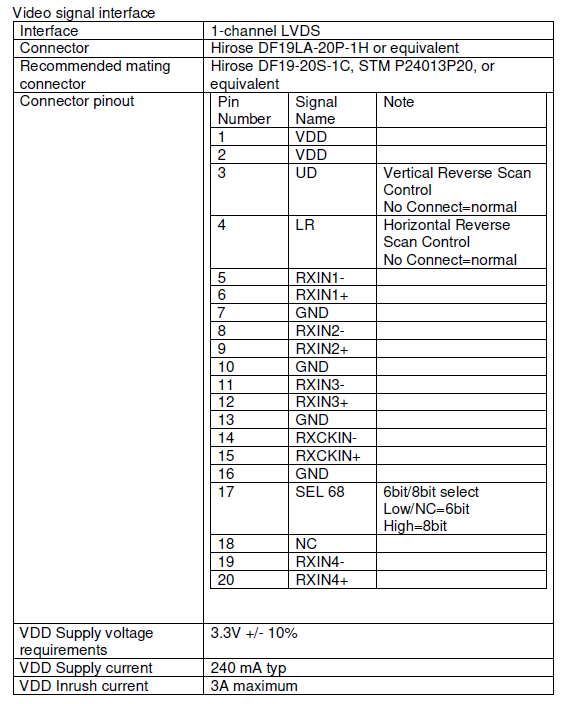

Below are the specifications for the LVDS connector on the Elo Touchscreen Display Modules; 7-inch, 10-inch, and 15-inch

  • E271156: TDM-TP-FZW7.0-E270564-AB-R, Elo 7-inch TouchPro PCAP Touchscreen Display Module


  • E270763: LCM-TP-FZW10.1-E270180-AB-R, Elo 10.1-inch TouchPro PCAP Touchscreen Display Module


  • E270963: TDM-TP-FZW15.6-E270380-AB-R, Elo 15.6-inch TouchPro PCAP Touchscreen Display Module
