Where can I find a pin-out of the LVDS connector on the Elo Display Modules?

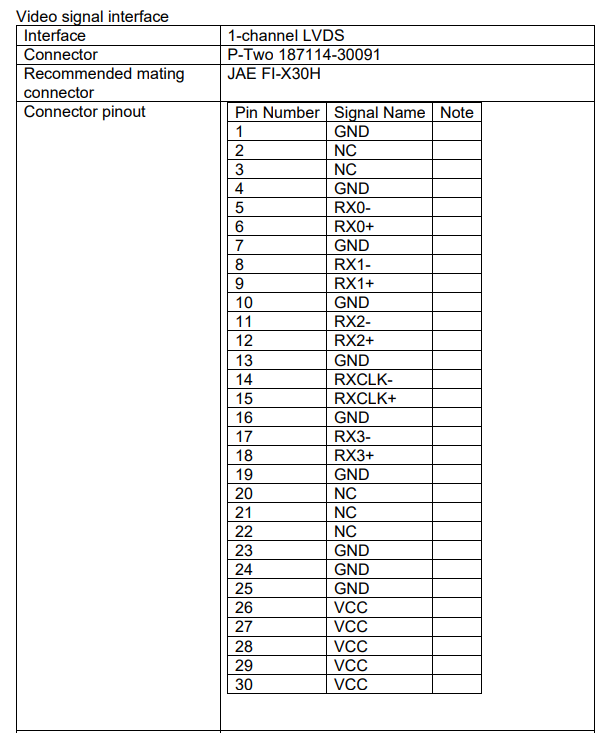

This article shows pin-out of the LVDS connector on the Elo 15.6-inch Display Module, P/N:E270963
