This article explains how to add additional USB ports on the I-Series 2.0 devices

To add additional USB ports to the I-Series 2.0 devices, Elo sells an optional USB-C Hub & Bracket Kit, i-Series 2.0.

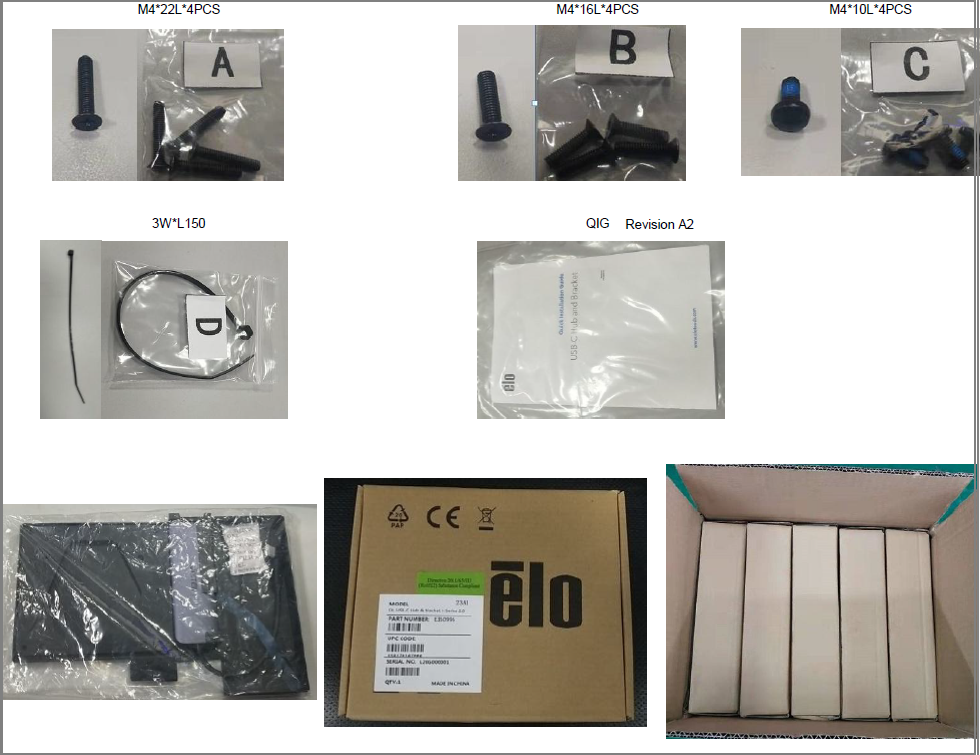

Kit Contents:

• USB-C Hub with Bracket Assembly x 1
• Screws (M4x22mm) x 4, (M4x16mm) x 4, (M4x10mm) x 4
• Cable tie x 1
• Quick Install Guide x 1 (also attached to this knowledge article)
• Desiccant x 1

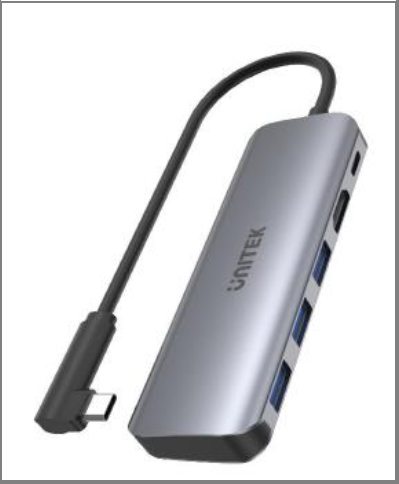

Photo of USB-C Hub (UNITEK H1107G)

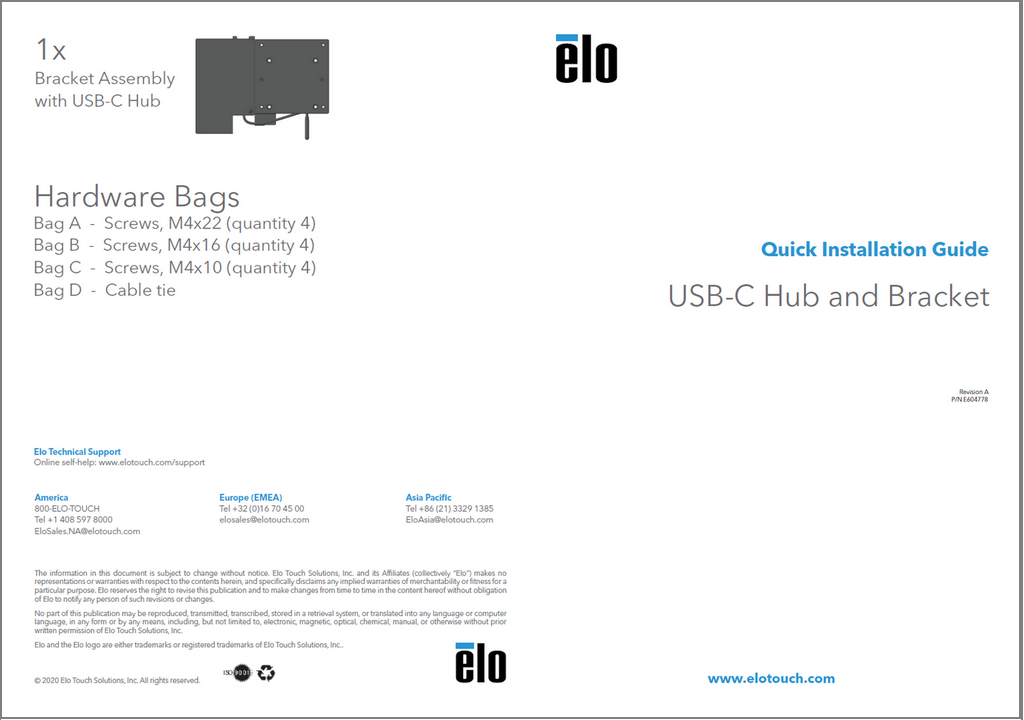

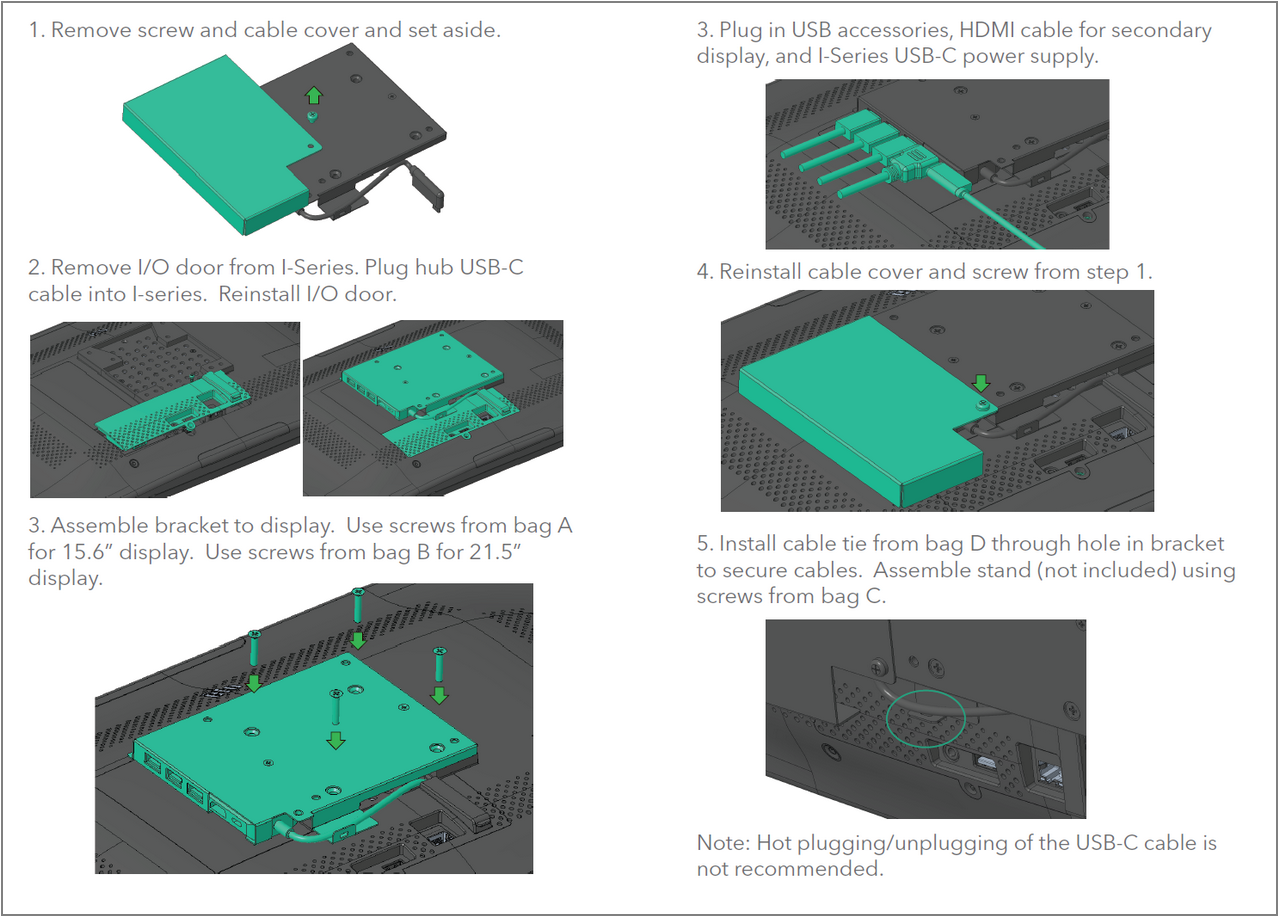

Quick Install Guide

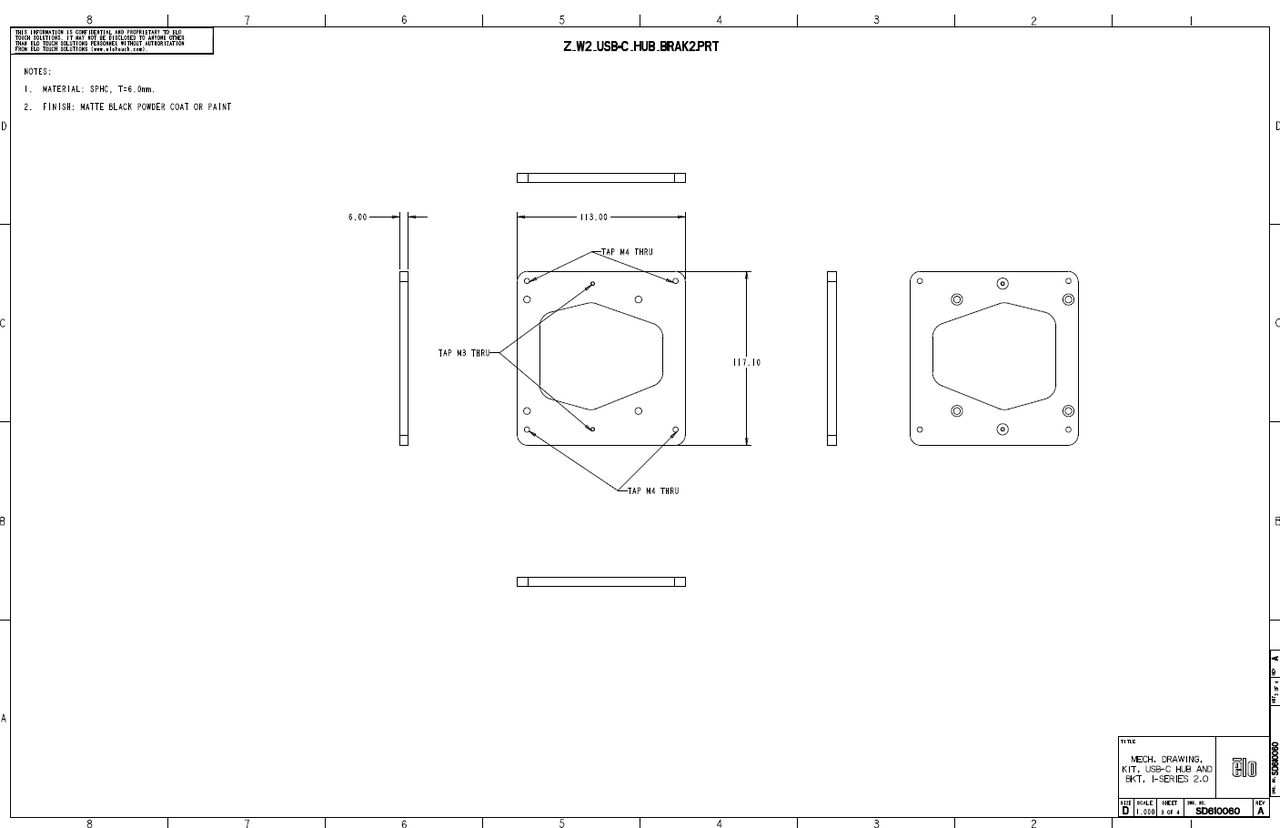

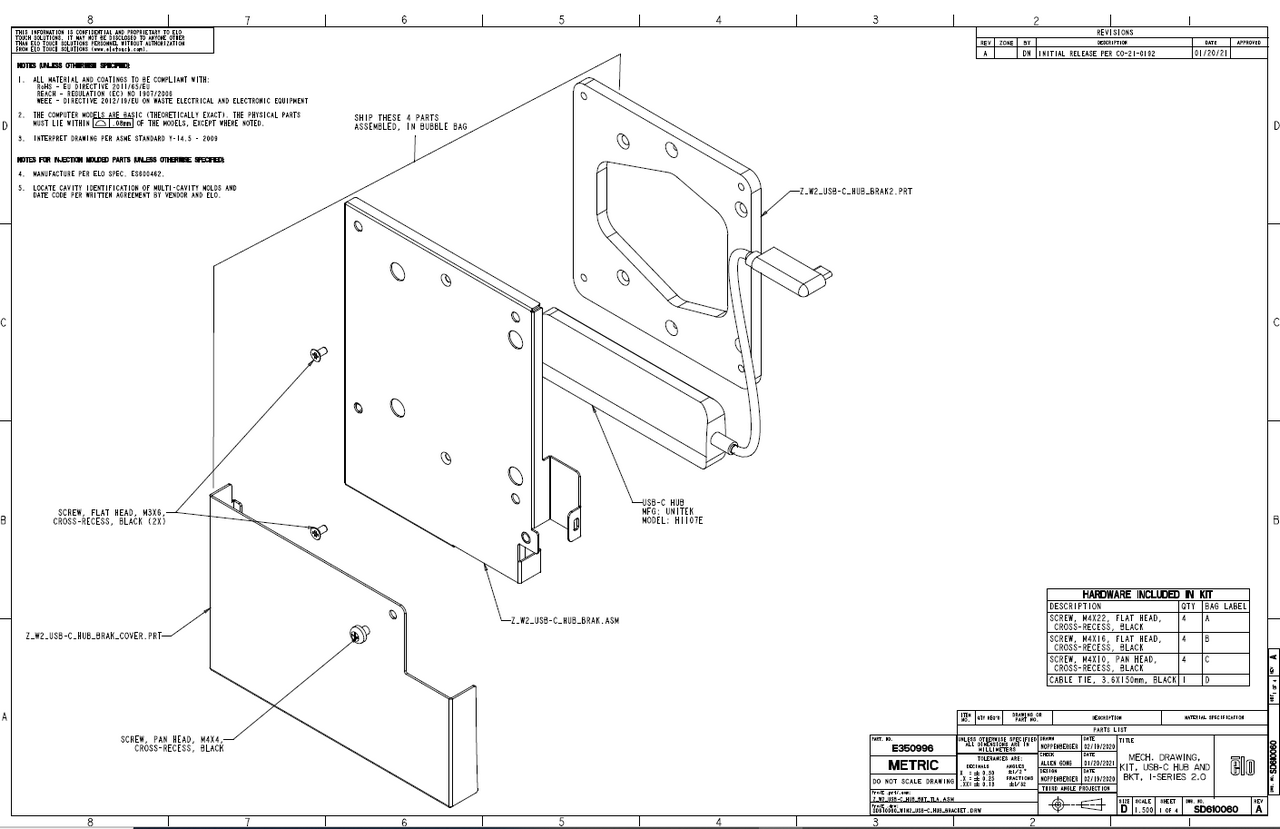

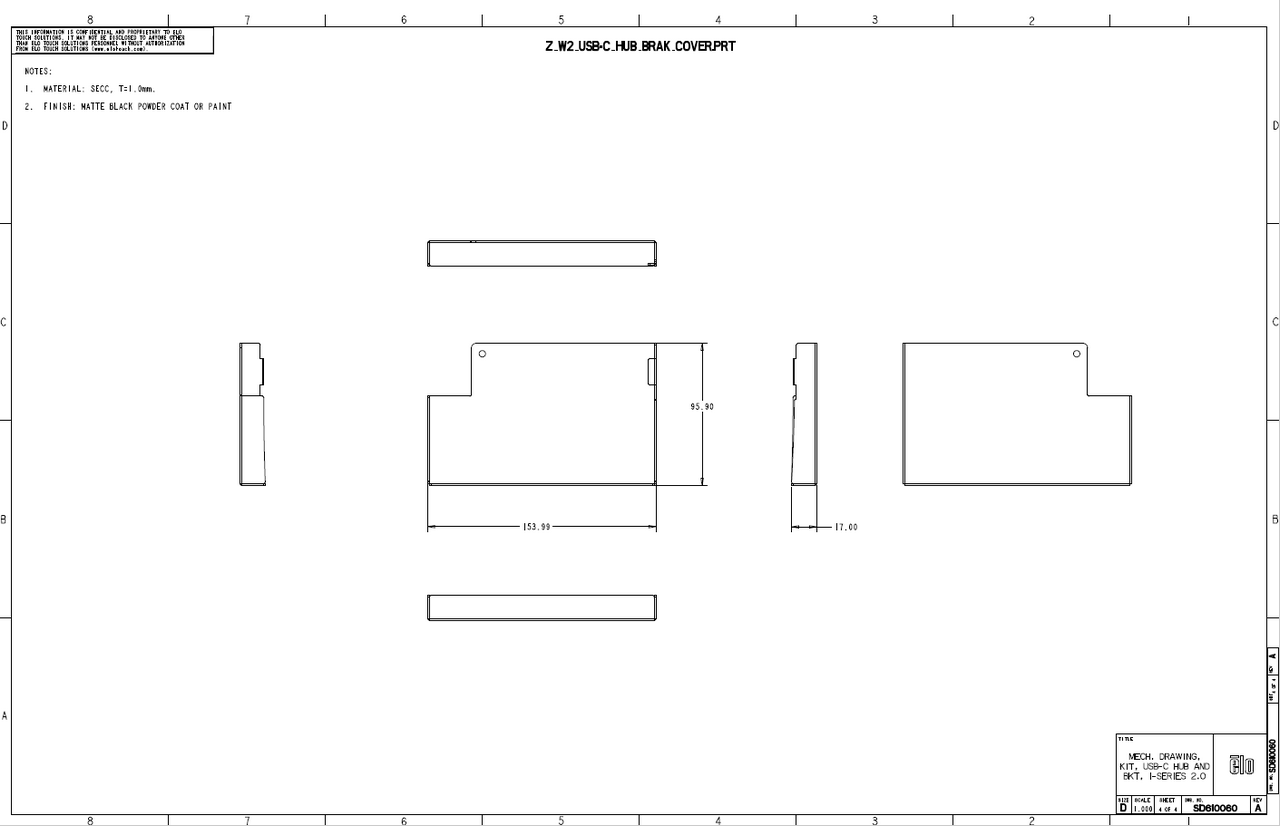

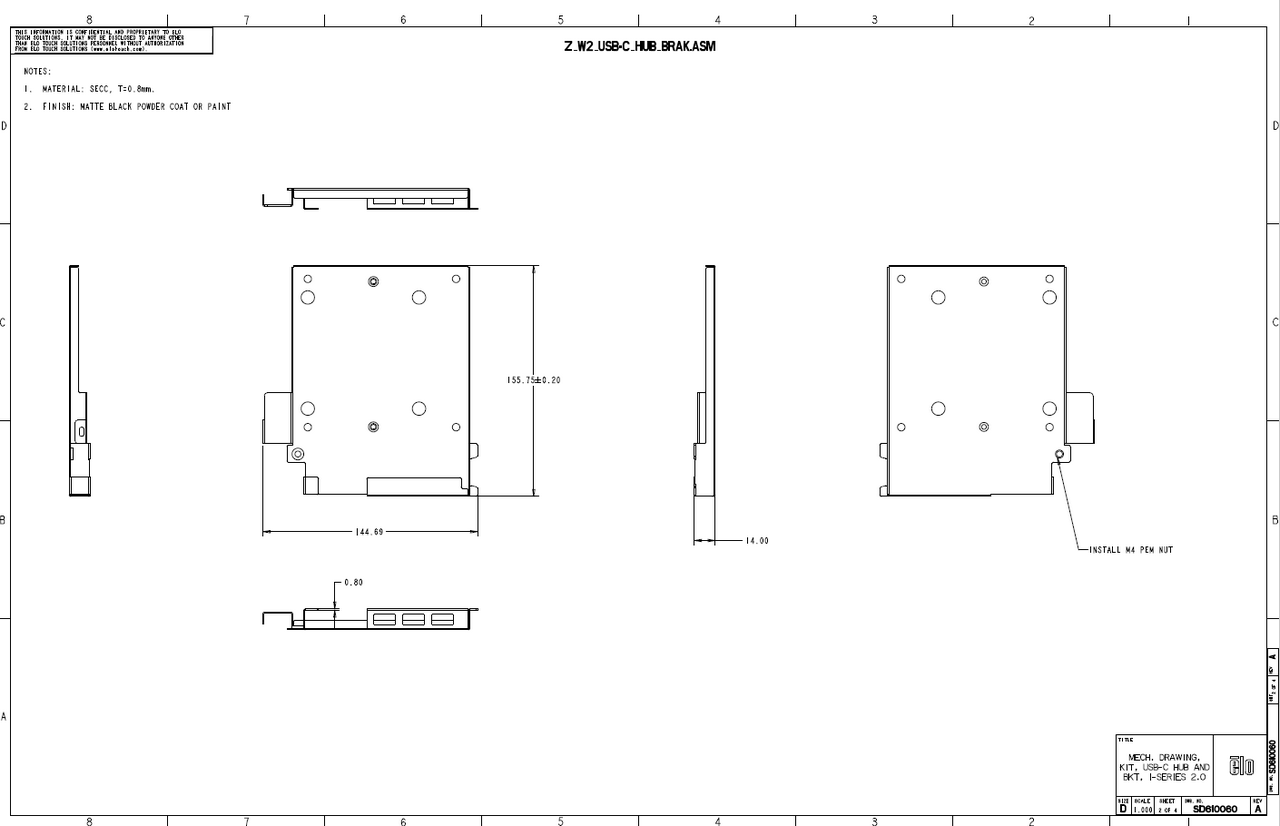

Drawings
