Troubleshooting "Display Connection Might Be Limited" Warning on USB-C Displays

Audience: Public / Elo Customers, IT Administrators & Integrators

Article Type: Troubleshooting & USB-C Display Configuration Guide

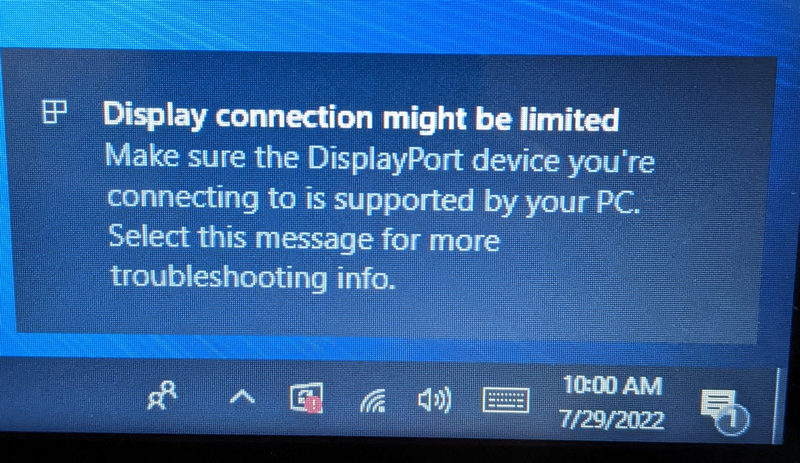

When connecting a secondary touchmonitor (such as an Elo 1002L, 1302L, 1502L, or Customer Facing Display) to an EloPOS or other USB-C equipped Windows system, Windows may display the notification: "Display connection might be limited."

Root Cause & Troubleshooting Checklist

This error occurs when the host system detects a USB connection but cannot establish a DisplayPort Alternate Mode (DP Alt Mode) video channel or negotiate the required USB Power Delivery (USB-PD) profile. Follow these troubleshooting steps:

1. Verify Full-Featured Type-C to Type-C Cable:
   Ensure you are using a native USB-C to USB-C cable. Legacy USB-A to USB-C cables and standard USB-A adapters only pass USB data/power and cannot transmit native DisplayPort video signals.

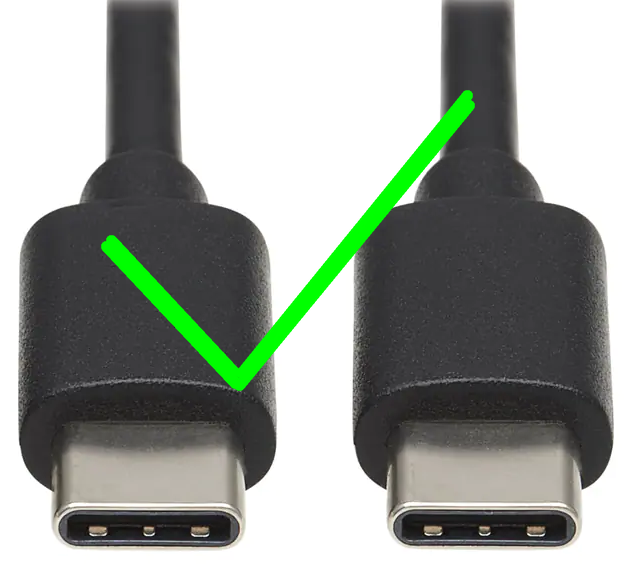

   ✔ USB-C to USB-C (Supports Video)

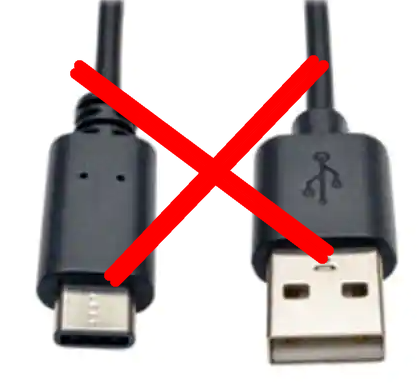

   ✖ USB-A to USB-C (No Video Support)
   Reference: USB-C to USB-C Cable Specifications
2. Use an Elo-Certified USB-C Cable:
   Standard consumer USB-C charging cables (such as those supplied with mobile phones) only support USB 2.0 data and charging. Elo touchmonitors require full-featured USB 3.1 Gen 2 / DP Alt Mode cables capable of simultaneously delivering video, 10-point touch data, and USB Power Delivery:
   Elo Approved and Tested USB-C Cable Reference
3. Verify Physical Display Power:
   Ensure the secondary display is powered on by physically pressing its power button. Certain monitors will enumerate USB touch data in standby but require active power state synchronization for video handshake.
4. Review Model-Specific Setup (1002L to EloPOS):
   If configuring an Elo 1002L touchmonitor with an EloPOS terminal, follow the dedicated connection guide:
   How to Connect a 1002L to an EloPOS via USB-C
5. Power Delivery Negotiation Check:
   For detailed technical specifications regarding host port wattage, alt-mode routing, and power budgeting across EloPOS ports, see:
   USB and Thunderbolt Power Delivery Overview
