This article provides information about the M50 Trigger Handle, P/N: E393015

Elo’s TH10 Trigger Handle makes it easy to transform your M50 mobile computer into a high-volume scanning terminal. Designed with an ergonomic handle for ease of grip, workers can feel comfortable and reduce hand fatigue by initiating the trigger to process inventory and data collection.

Product spec page: https://www.elotouch.com/th10-trigger-handle.html

Specifications

• Part Number - E393015
• Description - ELO-KIT-TH10-M50-TRIGGER-HANDLE
• Enclosure Color - Black
• Compatibility - M50 Mobile Computer
• I/O Ports - USB-C
• Dimensions - 7.52" x 3.62" x 5.04" / 191 mm x 92 mm x 128 mm
• Shipping Box Dimensions - 8.07" x 6.22" x 5.28" / 205 mm x 158 mm x 134 mm
• Weight (Unpackaged) - 0.38 lbs / 0.18 kg
• Weight (Packaged) - 1.50 lbs / 0.68 kg
• Operating Temperature - 0°C to 50°C / 32°F to 122°F
• Storage Temperature - -30°C to 60°C / -22°F to 140°F
• Humidity Operating: 20% - 80%, Storage: 10% - 95%
• ESD - Class C: 8KV Contact, 15KV Air
• Regulatory approvals and declarations
  • UL, FCC (US) - Class B
  • cUL, IC (Canada)
  • CB (International safety)
  • CE (Europe) - Class B
  • VCCI (Japan)
  • RCM (Australia)
  • China RoHS
• MTBF - 50,000 hours demonstrated
• Warranty - 1-year
• What's in the Box
  • TH10 Trigger Handle
  • QIG
  • Power Adapter
  • US/EU/UK adapter plugs

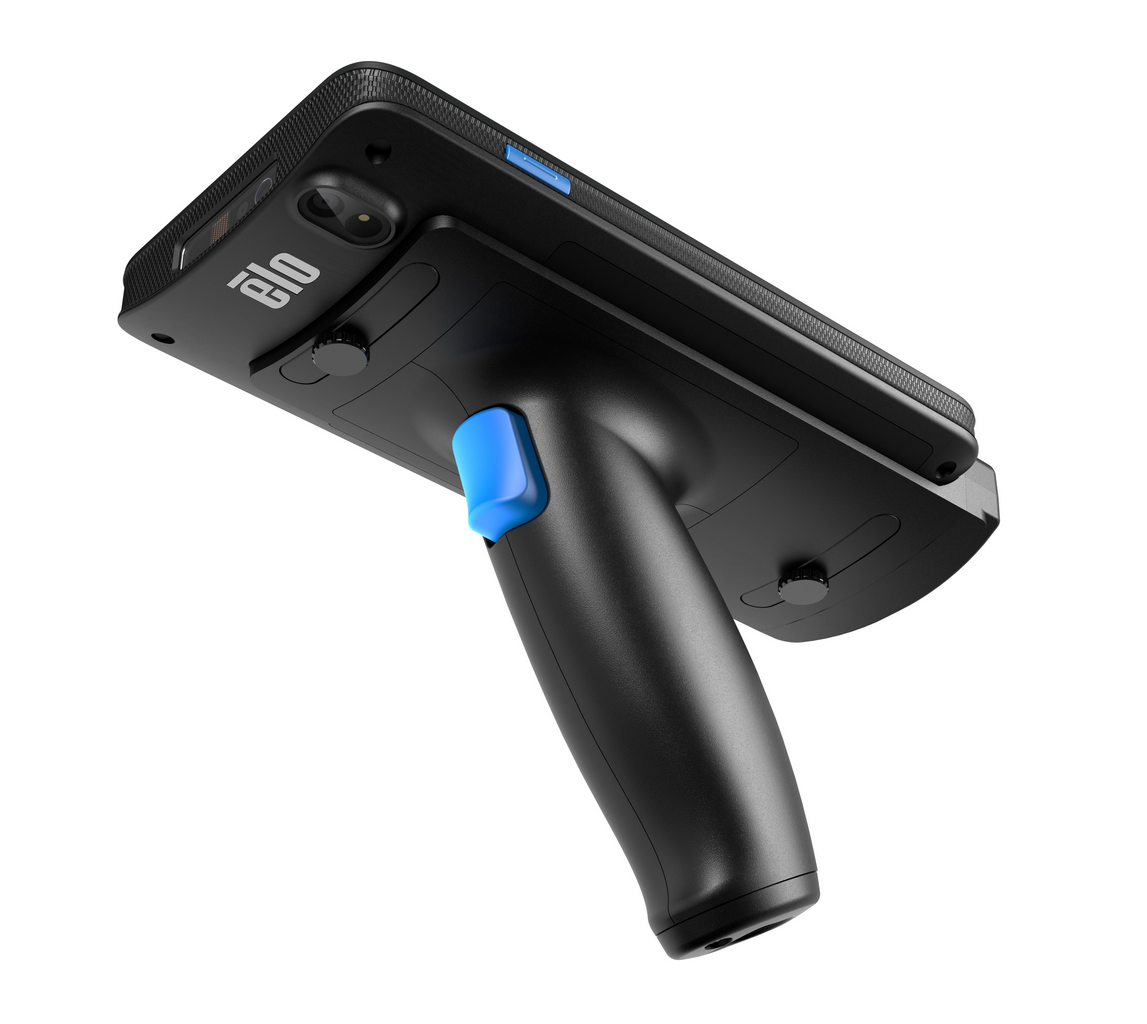

Photos

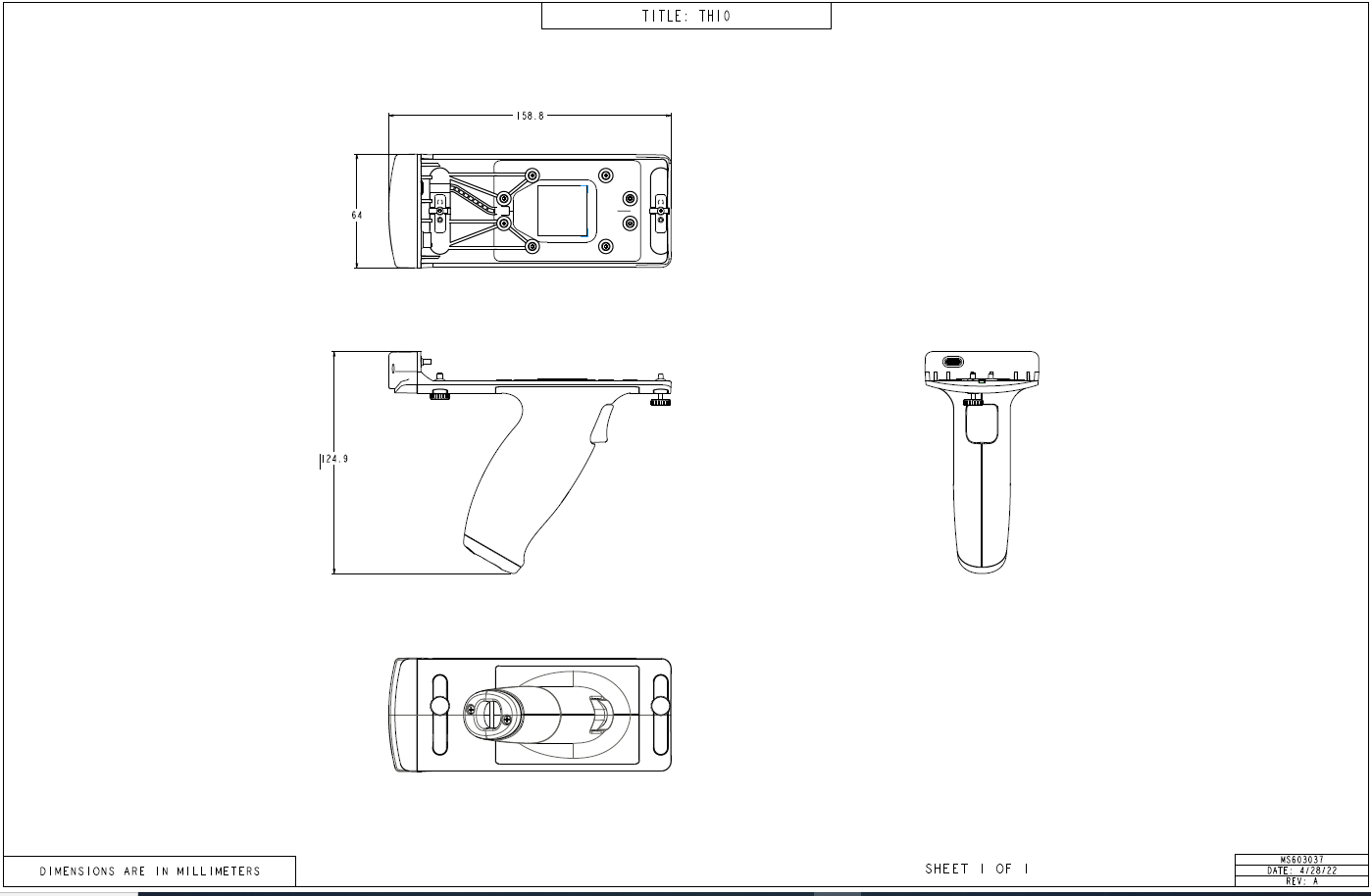

Drawings
