Where can I find Dimensional Drawings for E143088 Wall Mount Kit?

This article provides the dimensional drawings for the E143088 Wall Mount Kit

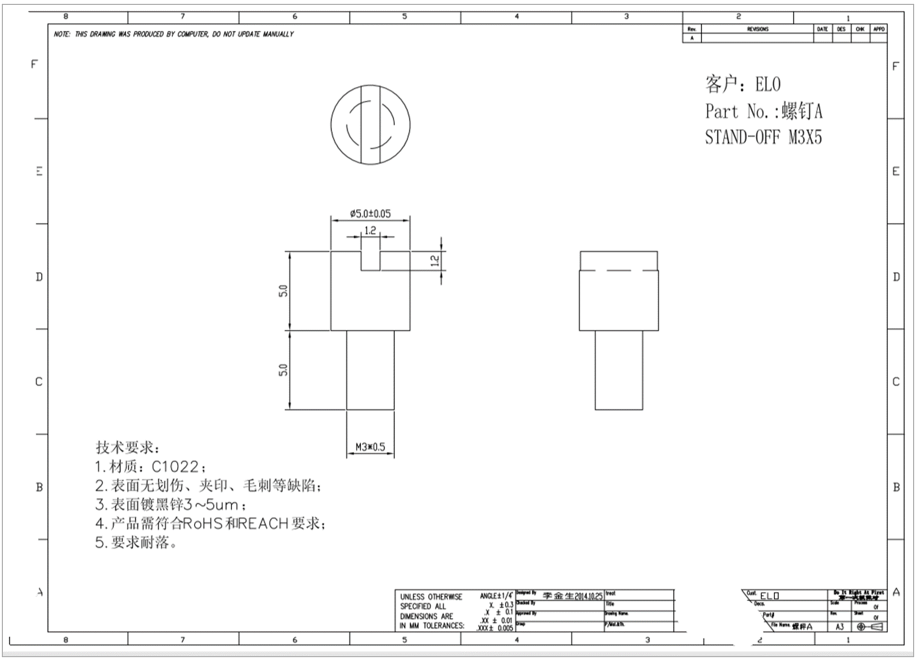

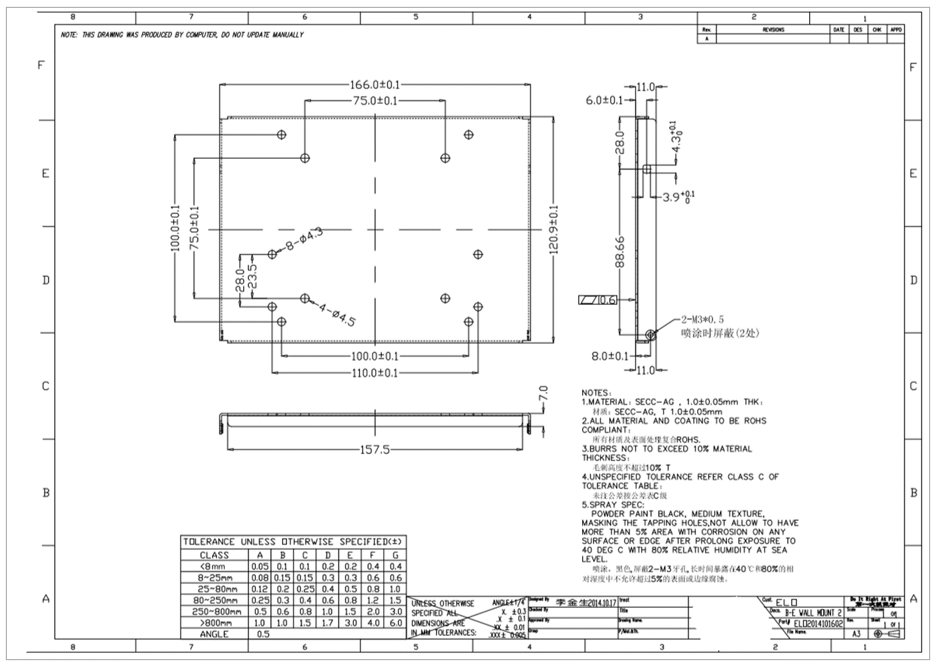

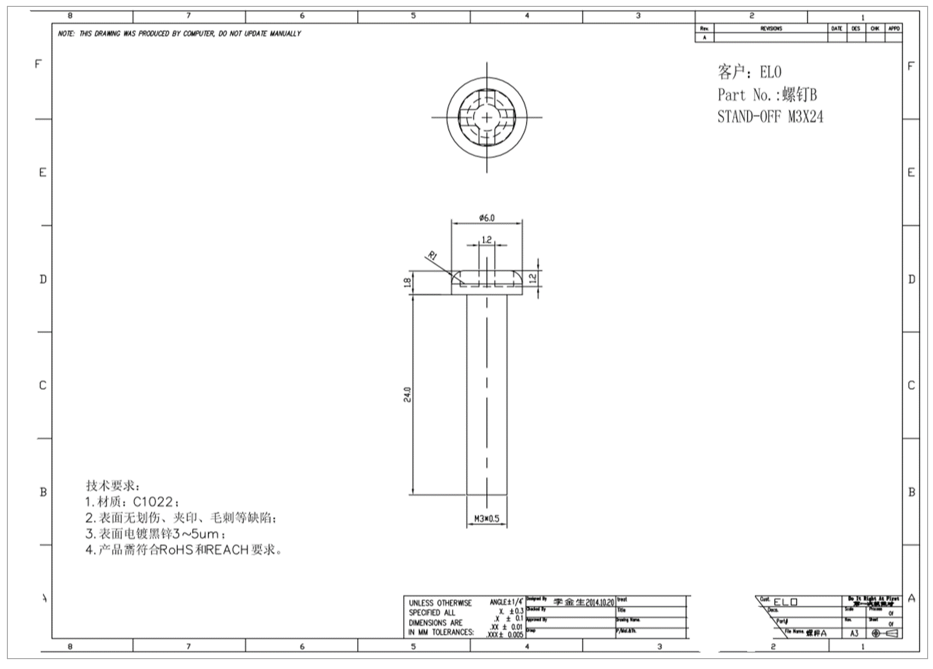

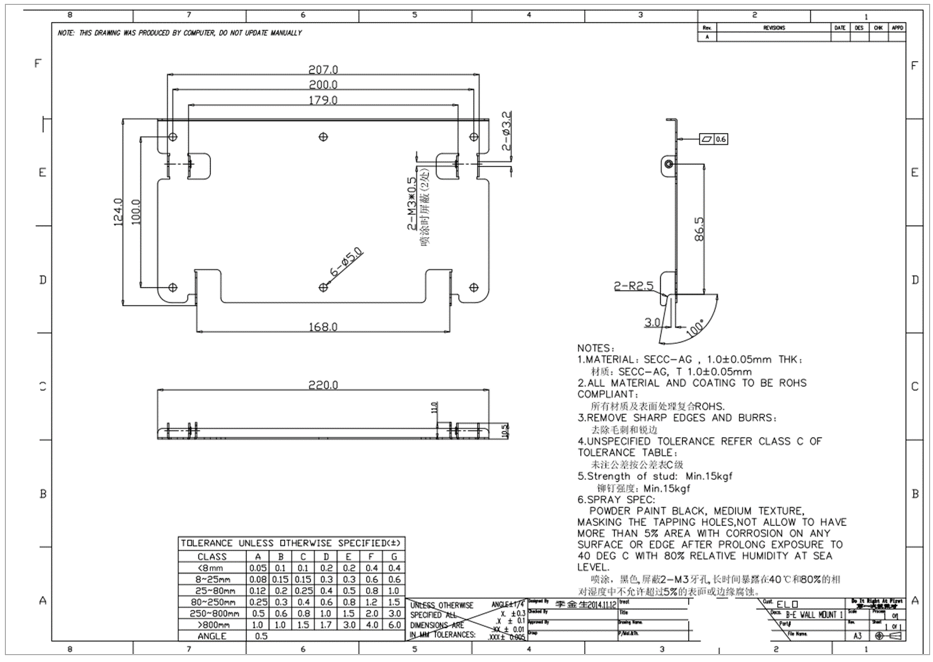

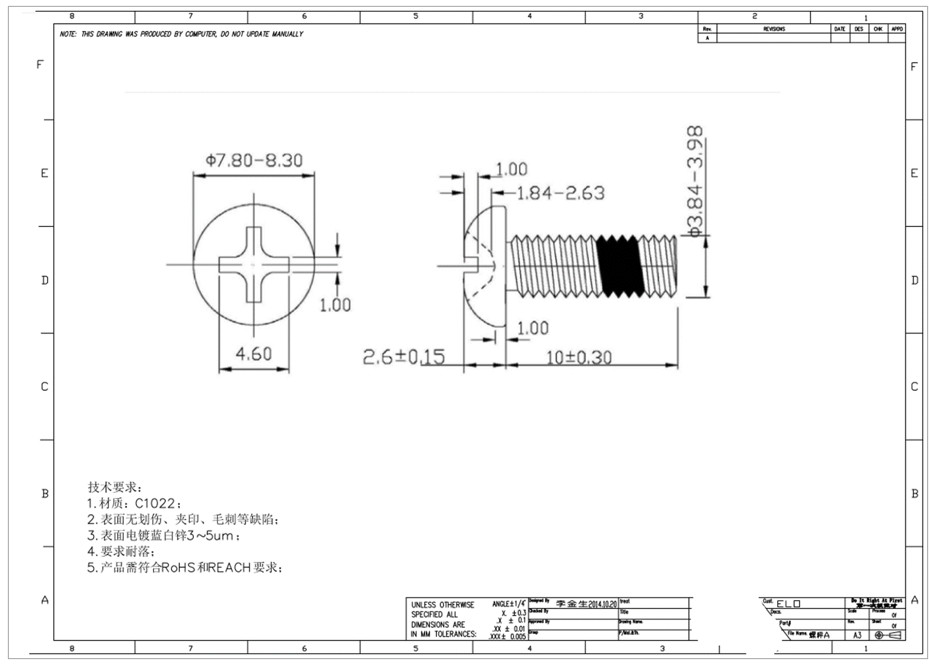

See below for dimensional drawings of E143088 Wall Mount Kit for E-I-X-Series Intel-Windows based all-in-one touch computers.




Download .pdf package of above drawings here .



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
