This articles discusses how to scan driver's licenses with an Elo first gen Barcode Scanner

To scan a driver's license with an Elo 2D Barcode Scanner, you will need the Elo 2D Barcode Scanner, PN E926356, and a Honeywell EasyDL License.

The Easy DL License is sold by CDW

https://www.cdw.com/product/TotalFreedom-EasyDL-license/3053747

1. Purchase a Honeywell EasyDL license

• Print out the license activation barcode for later use

2. Download and unzip the Honeywell EasyDL plug-in software

 Easy Parse for DL2.0 Plug-in-5.5.19_EV000012BBF.zip

3. Launch the EZConfig tool

 EZConfig-Scanning v4_v4.5.35_Setup.zip

4. When launching the EZConfig tool, if prompted, make sure to allow your web browser to run scripts.

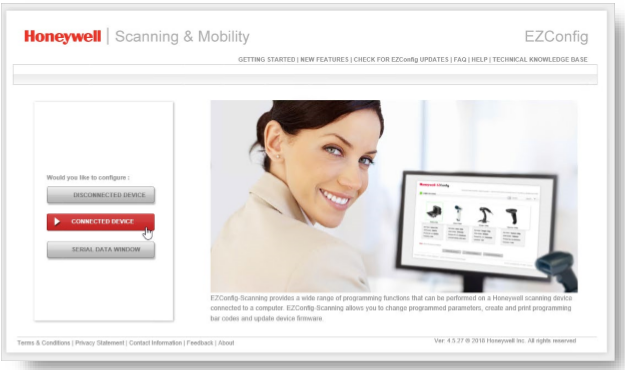

5. Click Connected Device



6. Click Configure Device

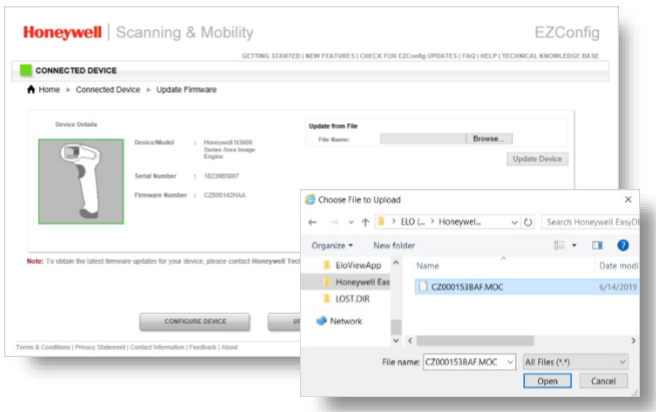

7. In the “Update from File” area, click Browse

8. Locate/choose the EasyDL software and click Open

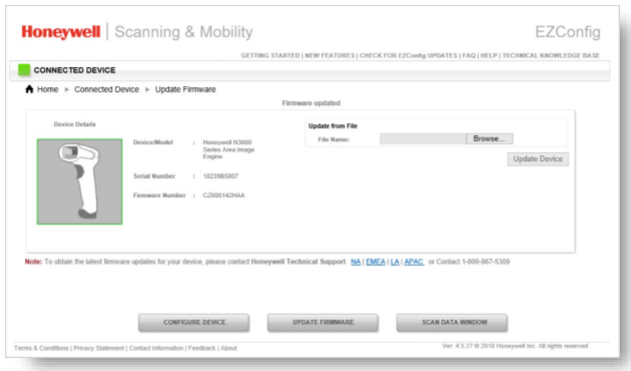

9. When ready, click Update Device

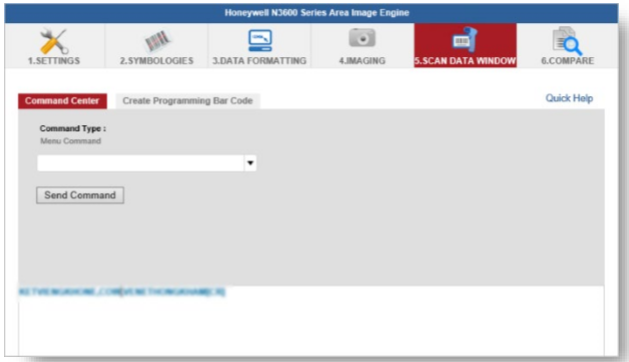

10. To activate the EasyDL license, click Scan Data Window




11. Scan the provided license code

12. Conduct a test scan using a driver’s license

• Verify that the first name, middle name, and last name is displayed clearly

13. Download, unzip and install the EasyDL 2.0 Configuration Utility

 EasyDL2.0 ConfigUtility V108.zip

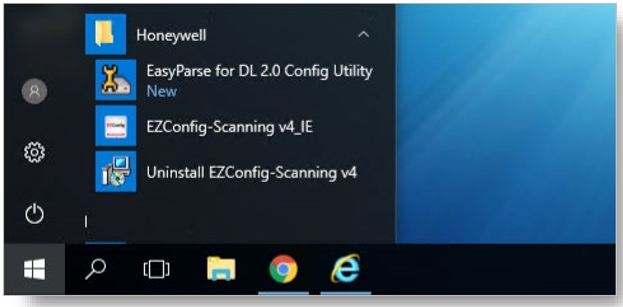

14. Launch the EasyDL 2.0 Configuration Utility (as an administrator)

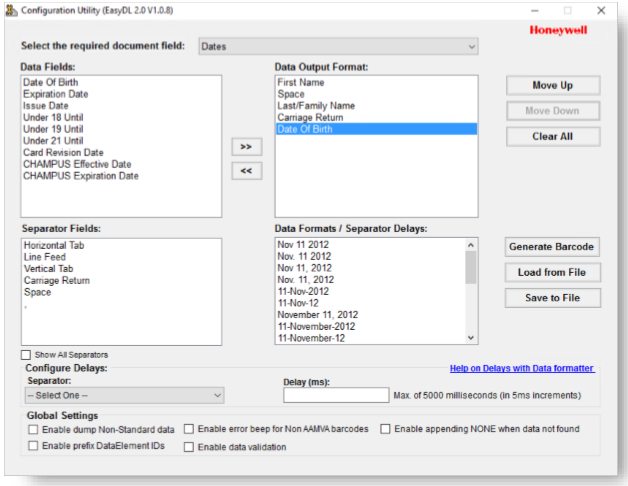

15. Select a document field e.g. “Names of person”

16. From the list of data fields (for the selected document field), select the required data fields

17. Select another document field e.g. “Dates”

18. From the list of data fields (for the selected document field), select the required data fields

19. Select the required separator fields and reposition them (move up / move down) in between the selected data fields

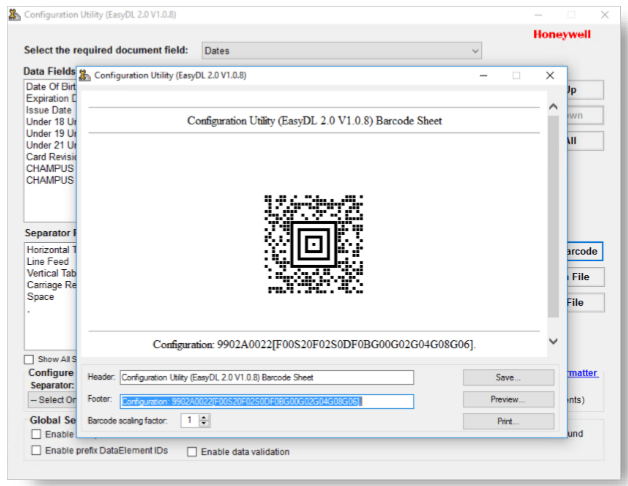

20. When done, click the Generate Barcode button



21. Click Print



22. Return to the EZConfig tool and go to the “Scan Data Window” area



23. Scan the EasyDL configuration barcode

24. Conduct a test scan using a driver’s license

• Veriify that the information displayed is correct based on the configuration settings established
