This article provides steps to enable PXE (Boot on Lan) on the EloPOS and Windows I-Series 2.0 AIO Touch Computers.

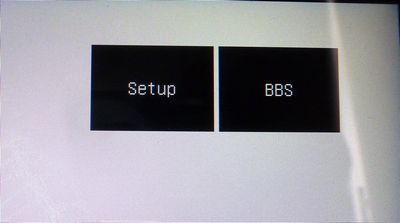

1. Enter into the BIOS of the EloPOS or Elo i-Series 2.0 with Windows touchcomputer by tapping on the Setup icon in upper right corner of screen as computer is booting.

• Alternatively, you can connect a physical USB keyboard and tap the DEL key during startup to enter the BIOS.

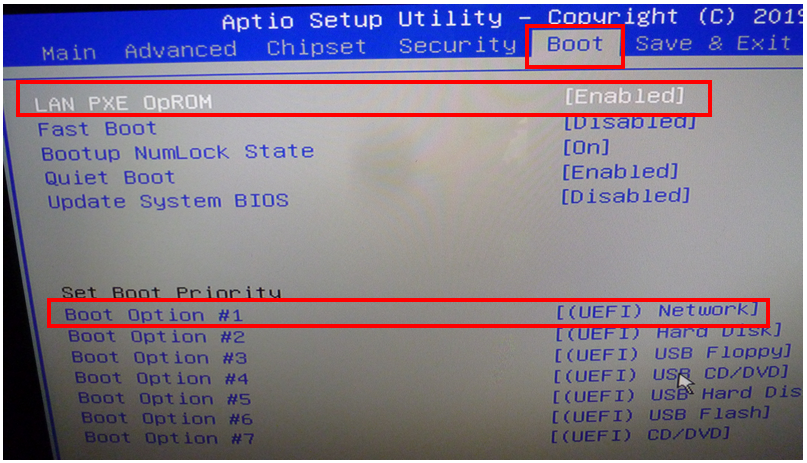

2. Navigate to the Boot section and enable LAN PXE OpROM and then go down to the Set Boot Priority section and select (UEFI) Network as Boot Option #1



3. Save changes and exit.

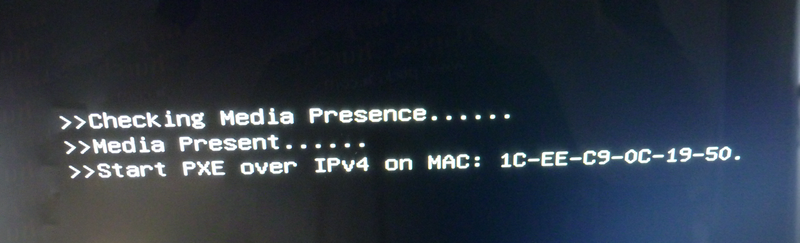

4. The computer will now startup and search for your PXE server and boot from it.
