Where can I find specifications for the Elo E384627 SE4720 2D Barcode Reader?

This article provides specifications for the Elo E384627 SE4720 2D Barcode Reader

The Elo E384627 2D Barcode Reader is integrated with a Zebra SE4720 Imaging Module and PL5000USB-BP000R decode board

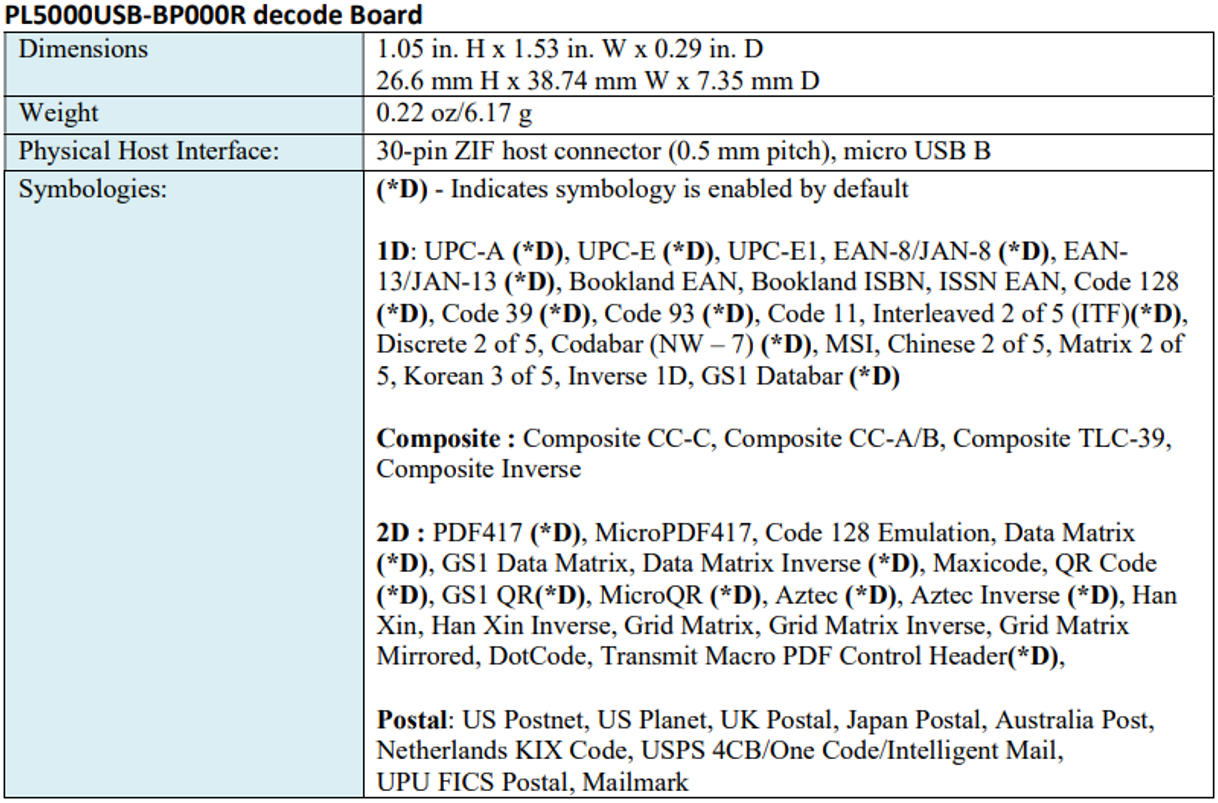

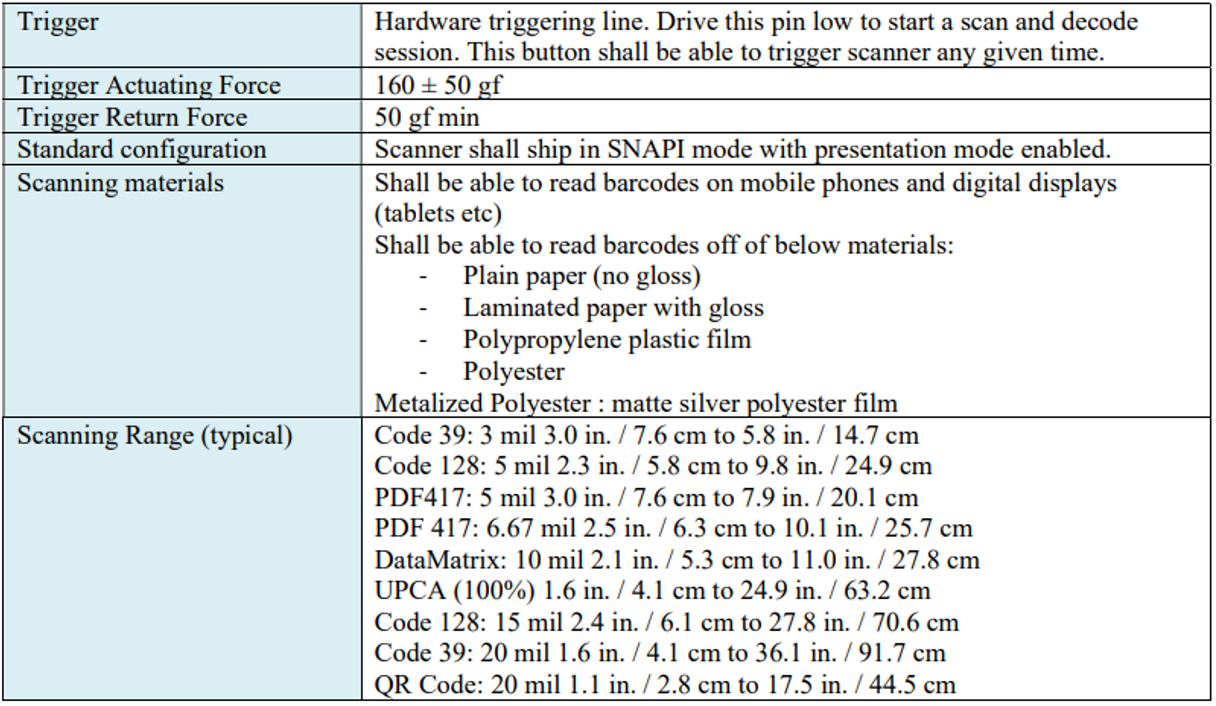

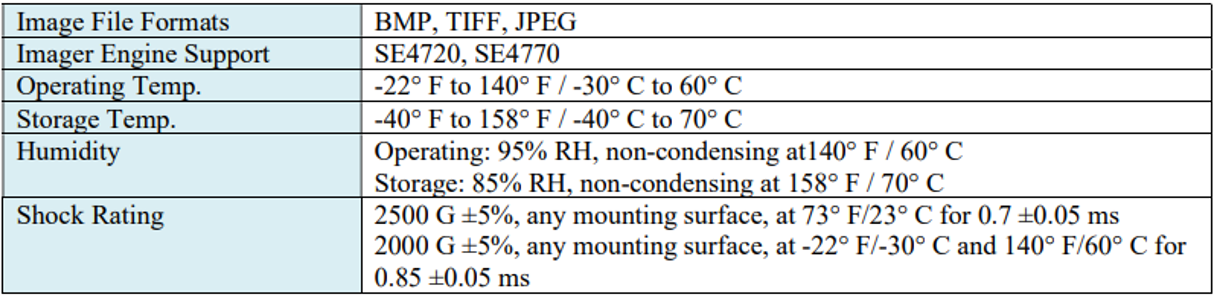

See below for technical specifications.
