This article provides steps for installing the HS10 Hand Strap onto the M50 Mobile Computer.

These instructions are written for Elo P/N:E994659, HS10 Hand Strap for M50 Mobile Computer. A Quick Install Guide is also included in the box and also can be downloaded HERE .

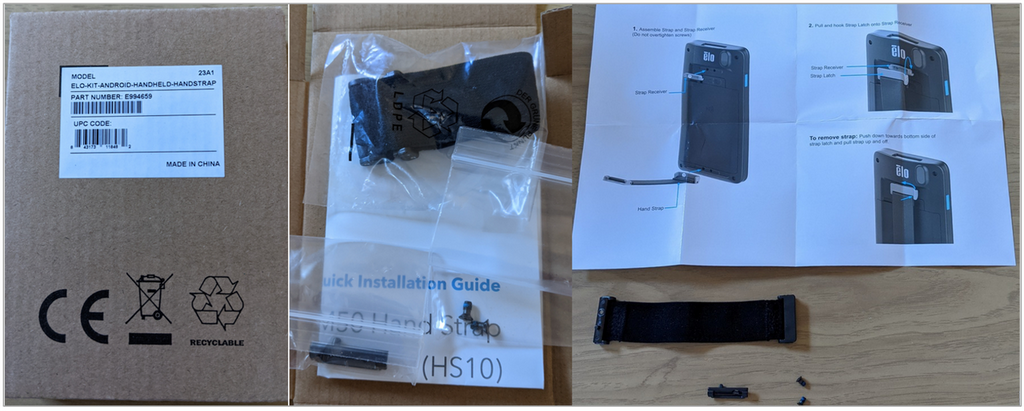

1. Remove hand strap and all contents from box.

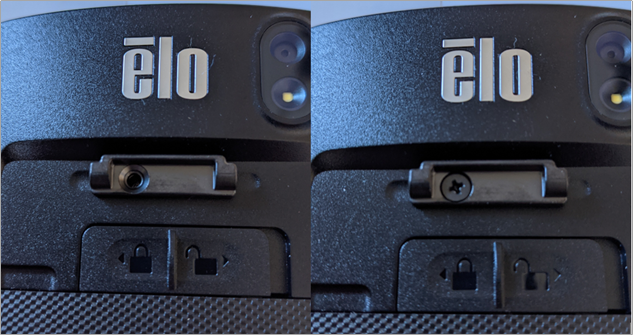

2. Place Strap Receiver into upper slot with screw hole on left side - fasten screw (do not over tighten).
Note: Screw will require some pressure at first to thread through the hole on the strap receiver, once screw is through the hole it will thread into hole on the device with minimal effort.

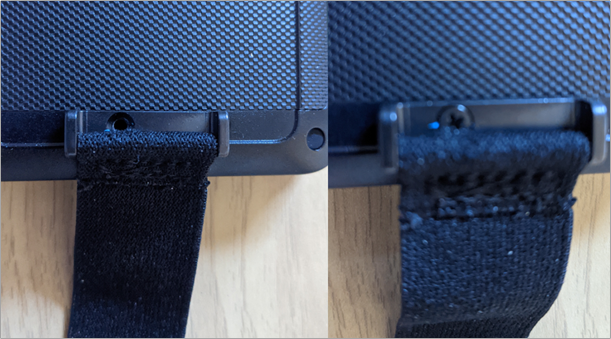

3. Fasten hand strap onto lower section making sure the screw hole is on the left side. Screw will thread in the same as the upper strap receiver in Step 2

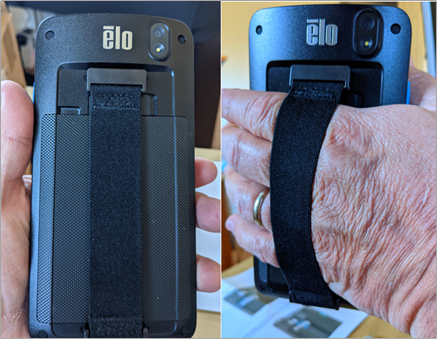

4. Pull and hook Strap Latch onto Strap Receiver.



5. To remove strap: Push down towards bottom side of strap latch and pull strap up and off.
