This article provides steps for assembling E461816 BC10 4 Slot Battery Charger for the M50 Mobile Computer.

A quick install guide with these steps is included in the box and also available on the Elo website HERE.

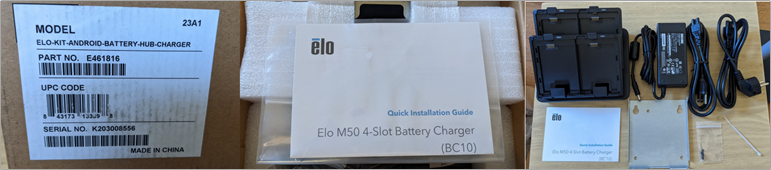

1. Remove the 4 Slot Battery Charger and all parts from box.

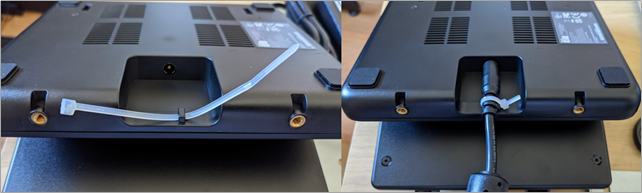

2. Thread Tie-wrap through the Bridge, connect power cable and secure with Tie-wrap. Snip off excess Tie-wrap.



3. If mounting to a wall, secure wall plate to bottom using the provided screws.



4. Insert batteries into device slots.
