This article provides steps to assemble E864653 DC10 4 Slot Device Charger for M50 Mobile Computer.
A quick install guide is included in the box as well as a .pdf copy located on the Elo website HERE.

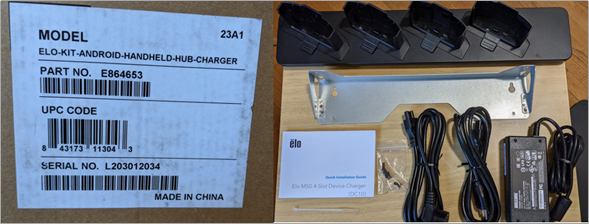

1. Remove all contents from the box.

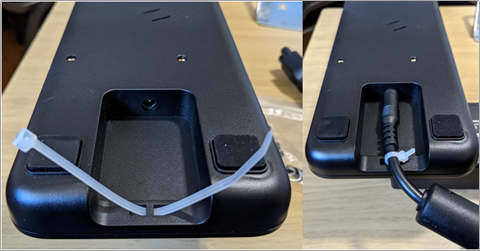

2. Thread Tie-wrap through the Bridge on bottom of device. Connect power connector and secure with Tie-wrap. Snip off excess Tie-wrap.

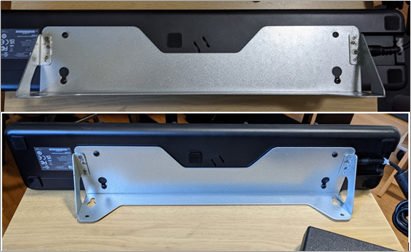

3. If attaching to a wall, secure wall bracket to bottom of unit by using the 4 included screws. Note: observe direction of bracket to make sure it is being mounted in the correct orientation.

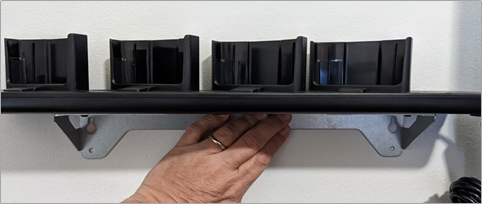

4. Mount device on wall in desired location.
