How can you determine the differences between SATA and NVMe M.2 Drives?

This articles describes how to determine the differences between SATA and NVMe M.2 Drives.

You can distinguish between SATA M.2 and NVMe M.2 drives by examining the connector.
A SATA M.2 drive has two notches (or keyways) on the connector edge, while an NVMe M.2 drive has only one notch. Refer to the photos below for visual examples.

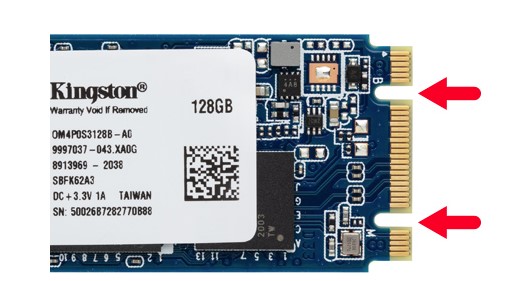

SATA M.2 Drive
SATA M.2.jpg

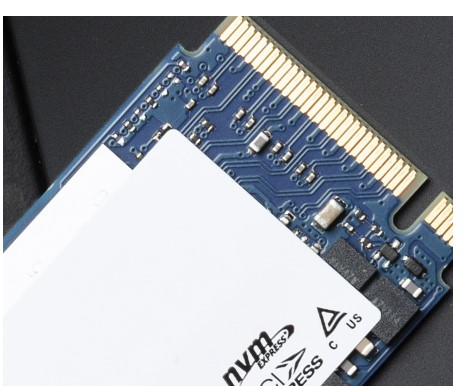

NVMe M.2 Drive

NVMe M.2.jpg

A SATA M.2 drive have a max speed of 600MB/s, while NVMe M.2 can provide speeds up to 3,500MB/s
